3-19
1
2
3
4
5
6
7
8
9
10

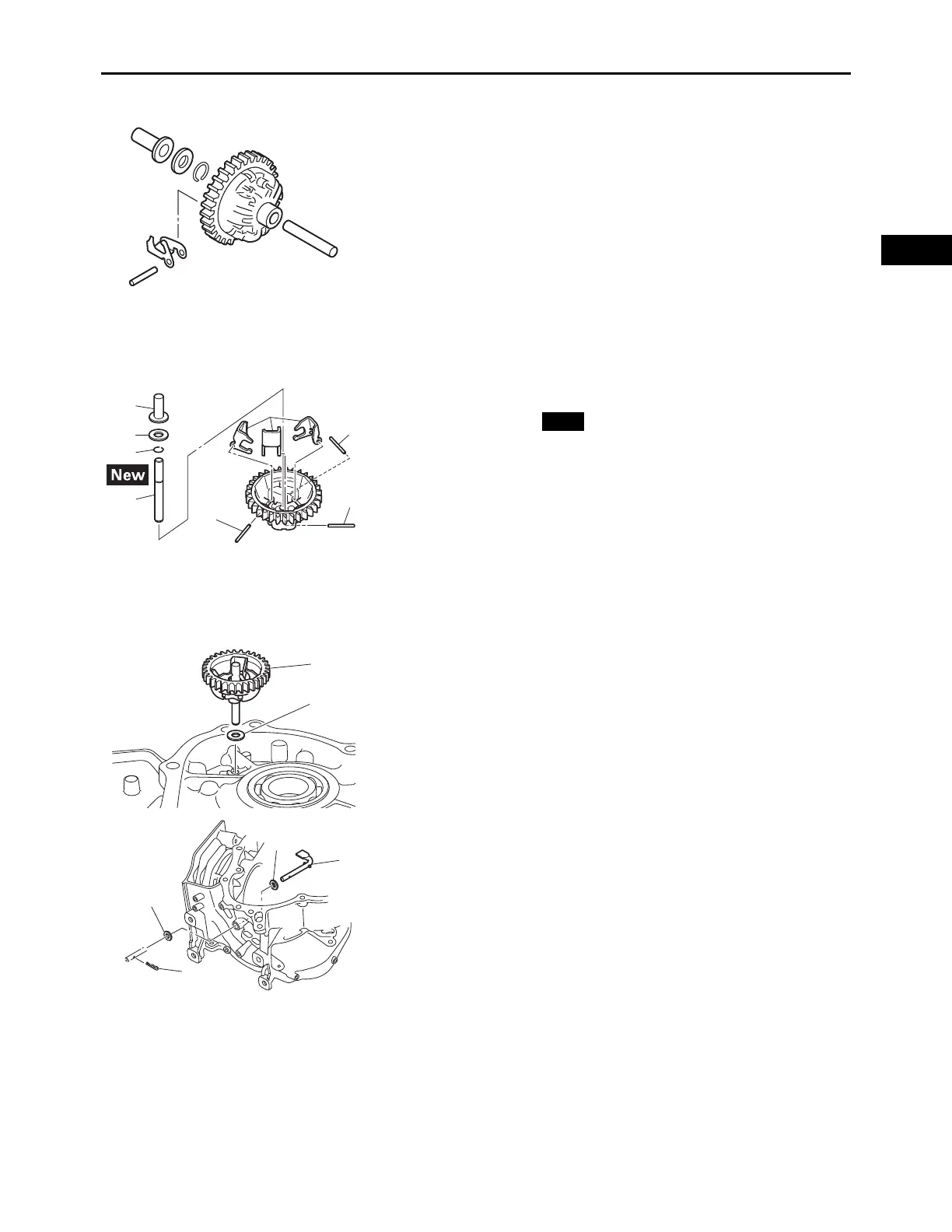

ENGINE
GOVERNOR
2.
Check:
Weight
Flyweight shaft
Collar
Washer
Circlip
Weight shaft
Wear/damage Replace.
ASSEMBLING THE FLYWEIGHT SHAFT
ASSEMBLY
1.
Install:
Weight shaft “1”
Circlip “2”
Washer “3”
Collar “4”
Weights “5”
Flyweight shafts “6”
INSTALLING THE FLYWEIGHT SHAFT ASSEMBLY
AND GOVERNOR FORK
1.
Install:
Washer “1”
Flyweight shaft assembly “2”
2.
Install:
Washers “1”
Governor fork “2”
Clip “3”
3.
Install:
Governor assembly
Crankcase cover
(Refer to “INSTALLING THE CRANKCASE
COVER” on page 3-36)
6
6
6
5
4
3
2
1
New
1
2
3
1
1
2
