ENGINE
GOVERNOR

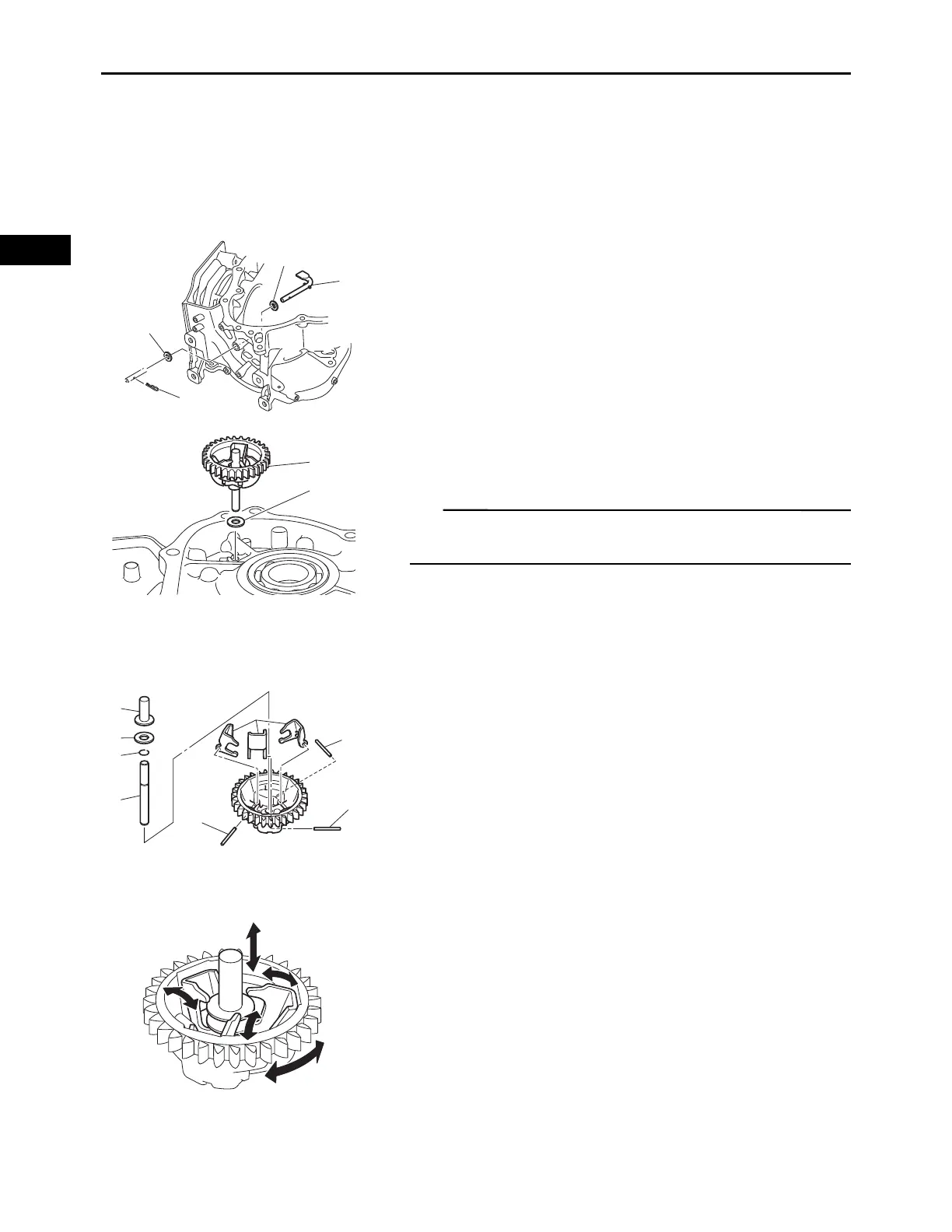

REMOVING THE FLYWEIGHT SHAFT ASSEMBLY
AND GOVERNOR FORK
1.
Remove:
• Crankcase cover
• Governor assembly
2.
Remove:
• Clip “1”
• Governor fork “2”
• Washers “3”
3.
Remove:
• Flyweight shaft assembly “1”
• Washer “2”
TIP
Remove the flyweight shaft assembly by tapping the
weight shaft from outside of the crankcase cover.
DISASSEMBLING THE FLYWEIGHT SHAFT
ASSEMBLY
1.
Remove:
• Flyweight shafts “1”
• Weights “2”
• Collar “3”
• Washer “4”
• Circlip “5”
• Weight shaft “6”
CHECKING THE FLYWEIGHT SHAFT ASSEMBLY
1.
Check:
• Flyweight shaft assembly move smoothly
Rough movement  Replace.
3
1
3
2
1
2
1
2
3
4
5
6
1
1
