Yamaha MX250 - Governor System and Engine Controls

3-16
1
2
3
4
5
6
7
8
9
10
ENGINE
GOVERNOR
GOVERNOR

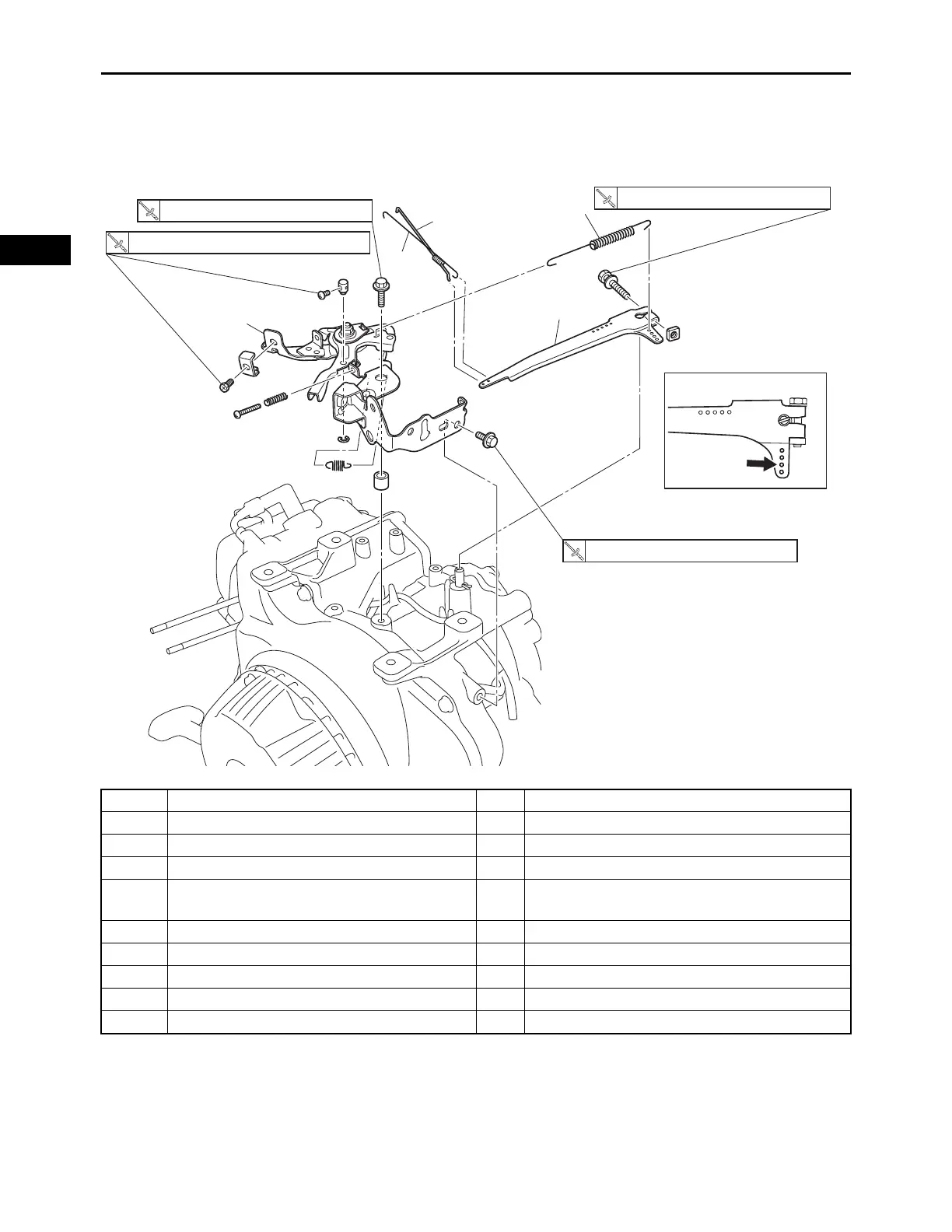

THROTTLE LEVER ASSEMBLY
Order Job/Parts to remove Q’ty Remarks
Removing the throttle lever assembly Remove the parts in the order listed.
Fuel tank Refer to “FUEL TANK” on page 3-4.
Fuel tank stay Refer to “FUEL TANK” on page 3-4.
Engine switch and oil warning unit
Refer to “ENGINE SWITCH AND OIL
WARNING UNIT” on page 3-21.
1Spring 1
2Link rod 1
3Spring 1
4 Governor arm 1
5 Throttle lever assembly 1
3
4
2
1
5
1.1 N · m (0.11 kgf · m, 0.81 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
8 N · m (0.8 kgf · m, 5.9 lb · ft)
