CARBURETOR
4-1
CARBURETOR

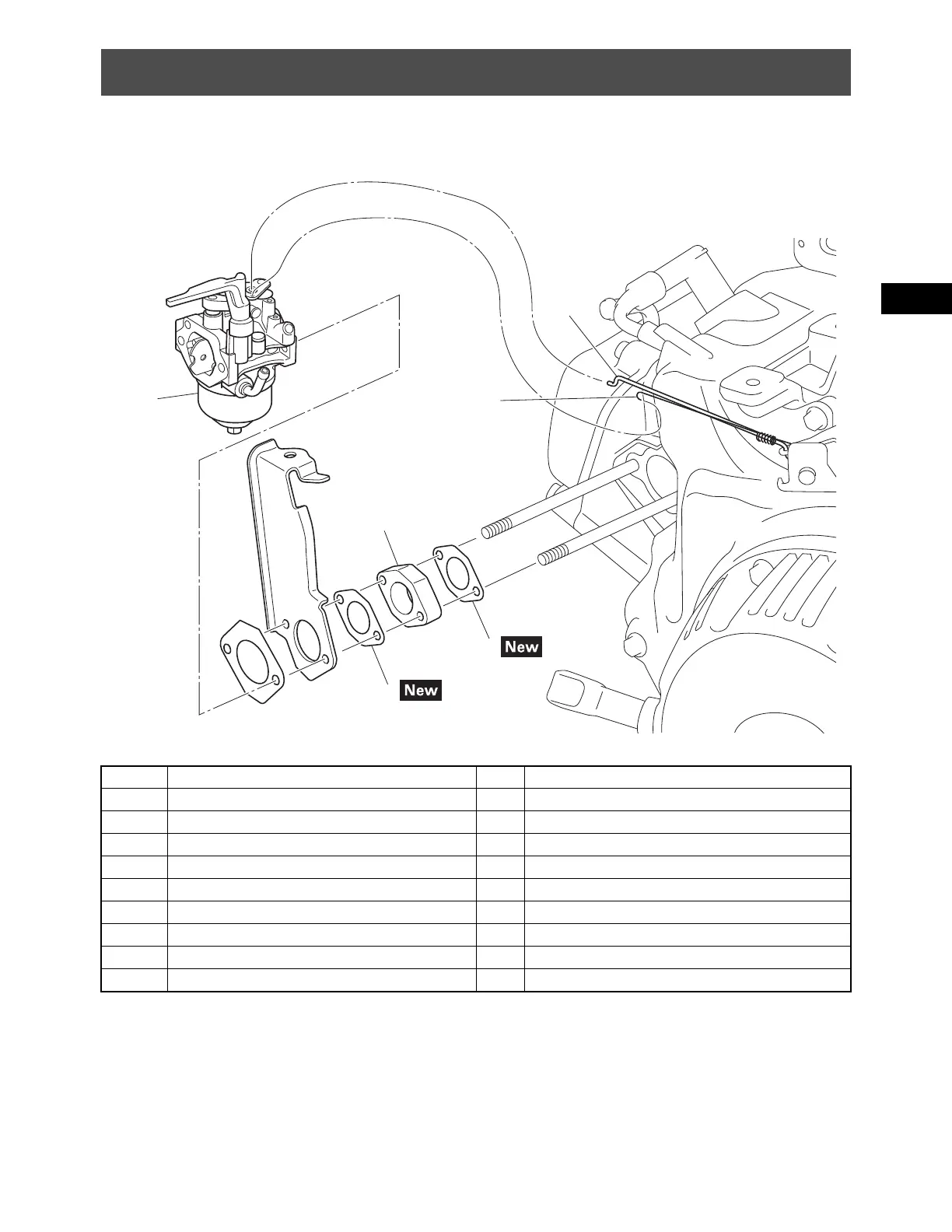

REMOVING THE CARBURETOR
Order Job/Parts to remove Q’ty Remarks
Removing the carburetor Remove the parts in the order listed.
Fuel tank Refer to “FUEL TANK” on page 3-4.
Air filter Refer to “AIR FILTER” on page 3-3.
1 Carburetor assembly 1
2Link rod 1
3Spring 1
4Gasket 1
5Joint 1
6Gasket 1
2
1
4
5
6
3
