Yamaha MX250 - Recoil Starter and Flywheel Service

3-8
1
2
3
4
5
6
7
8
9
10
ENGINE

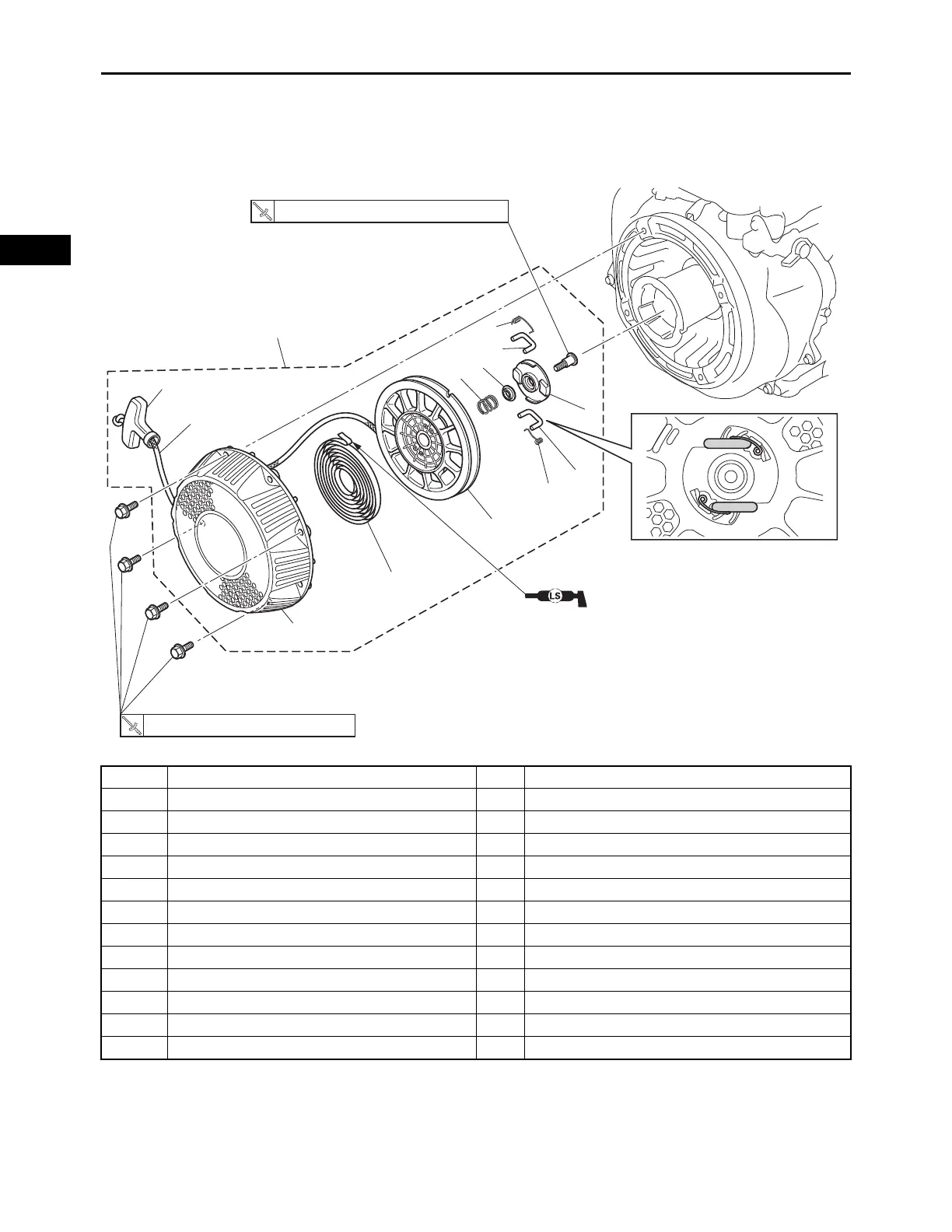

RECOIL STARTER
RECOIL STARTER
Order Job/Parts to remove Q’ty Remarks
Removing the recoil starter Remove the parts in the order listed.
1 Recoil starter assembly 1
2 Starter handle 1
3Drive plate 1
4 Clip 1
5Drive pawl 2
6Spring 2
7 Compression spring 1
8 Sheave drum 1
9 Starter spring 1
10 Starter case 1
11 Starter rope 1
1
2
3
4
5
5
6
6
7
8
9
10
11
5.4 N · m (0.54 kgf · m, 3.9 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
