CARBURETOR

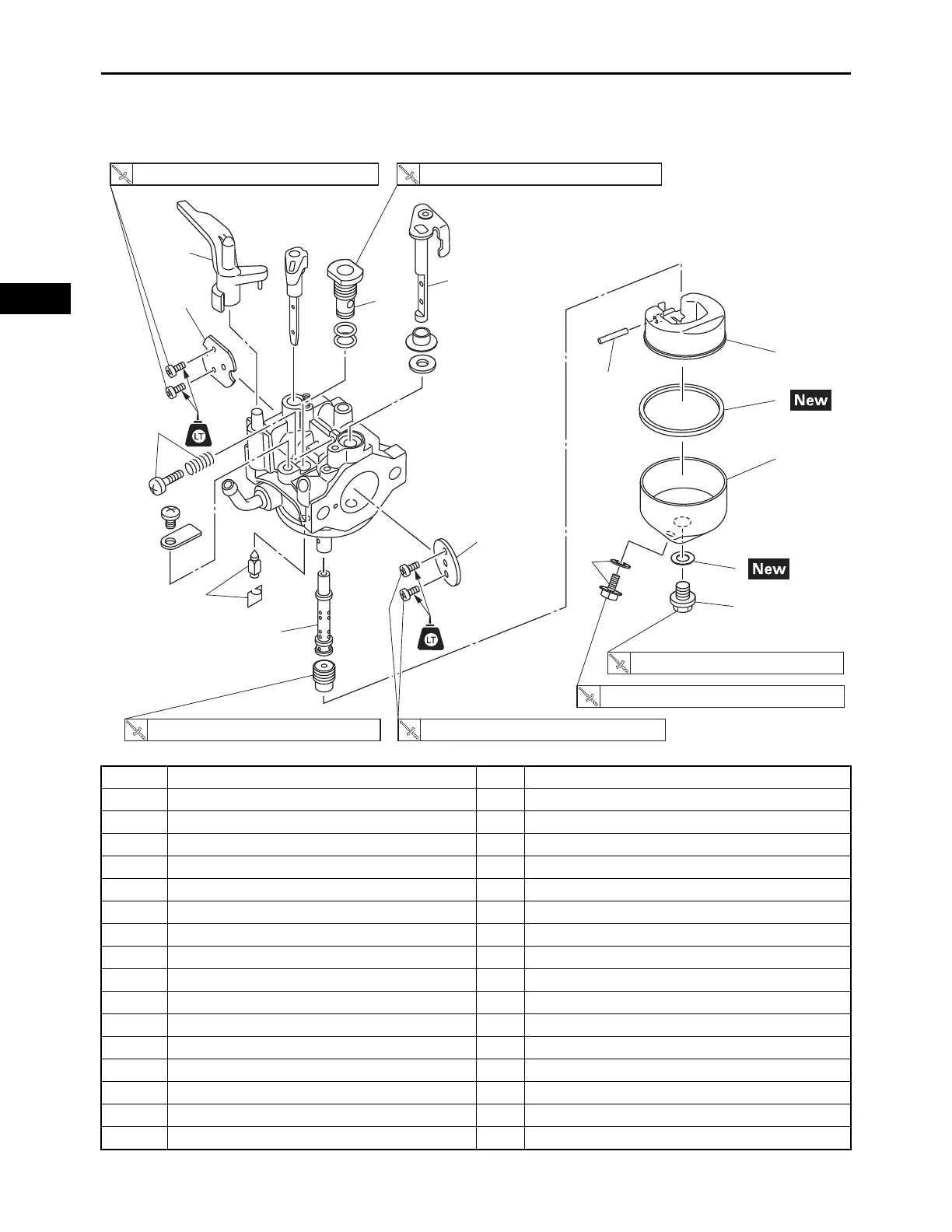

DISASSEMBLING THE CARBURETOR
DISASSEMBLING THE CARBURETOR
Order Job/Parts to remove Q’ty Remarks
Disassembling the carburetor Disassemble the parts in the order listed.
1 Drain screw/Spring 1/1
2 Float chamber bolt 1
3Gasket 1
4 Float chamber 1
5Gasket 1
6Float pin 1
7Float 1
8 Needle assembly 1
9 Main nozzle 1
10 Throttle valve 1
11 Throttle stop screw/Spring 1/1
12 Pilot jet 1
13 Throttle shaft 1
14 Choke valve 1
15 Choke lever 1
1
2
3
4
5
7
6
8
9
12
11
10
13
14
15
0.7 N · m (0.07 kgf · m, 0.52 lb · ft)
0.7 N · m (0.07 kgf · m, 0.52 lb · ft) 1.6 N · m (0.16 kgf · m, 1.2 lb · ft)
1.3 N · m (0.13 kgf · m, 0.95 lb · ft)
1.1 N · m (0.11 kgf · m, 0.81 lb · ft)
7 N · m (0.7 kgf · m, 5.2 lb · ft)
