3-15
1
2
3
4
5
6
7
8
9
10
ENGINE

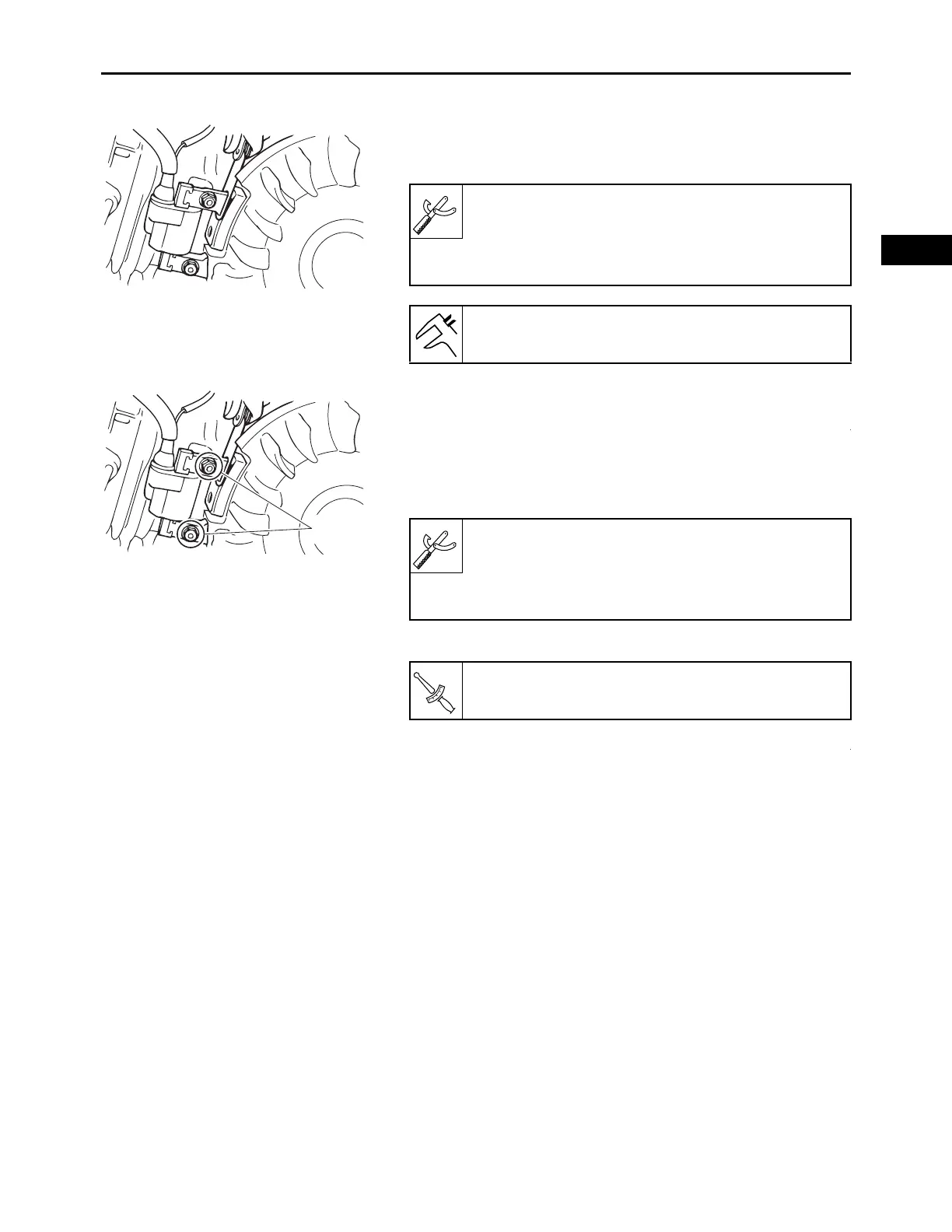

FLYWHEEL
2.
Measure:
• TCI unit air gap
Out of specification  Adjust.
3.
Adjust:
• TCI unit air gap
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
Adjustment steps:
a. Loosen the TCI unit bolts “1”.
b. Adjust the TCI unit air gap.
c. Tighten the TCI unit bolts “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Feeler gauge set:
YU-26900-9
Thickness gauge:
90890-03180
TCI unit air gap:
0.4–0.6 mm (0.0157–0.0236 in)
1
Feeler gauge set:
YU-26900-9
Thickness gauge:
90890-03180
TCI unit bolt:
10 N·m (1.0 kgf·m, 7.4 lb·ft)
T
R
.
.
