3-33
1
2
3
4
5
6
7
8
9
10
ENGINE

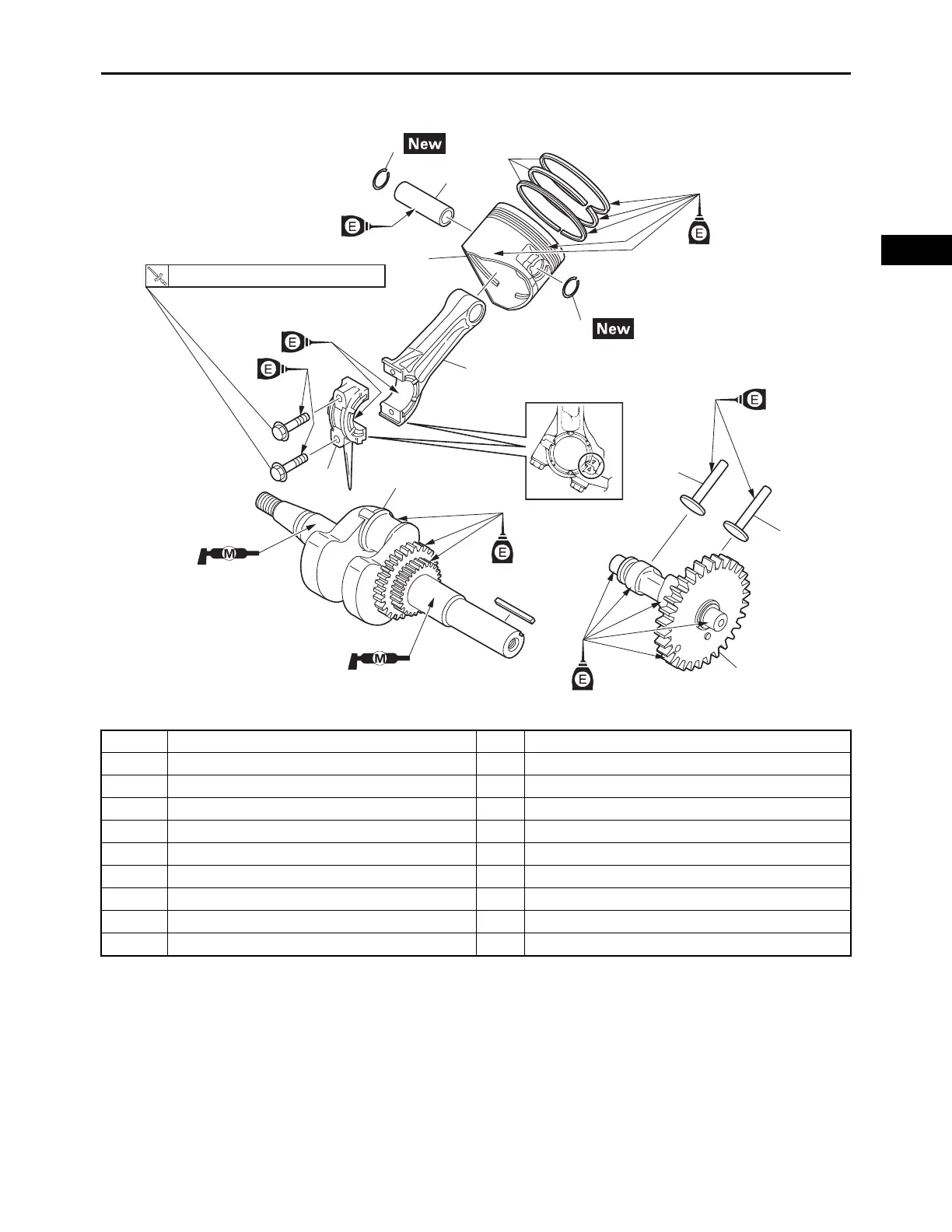

PISTON, CAMSHAFT, CRANKCASE, AND CRANKSHAFT
Order Job/Parts to remove Q’ty Remarks
8 Camshaft 1
9 Valve lifter 2
10 Connecting rod cap 1
11 Crankshaft 1
12 Connecting rod 1
13 Piston pin circlip 2
14 Piston pin 1
15 Piston 1
16 Piston ring set 1
9
11
10
12
13
14
15
16
13
9
8
20 N · m (2.0 kgf · m, 15 lb · ft)
