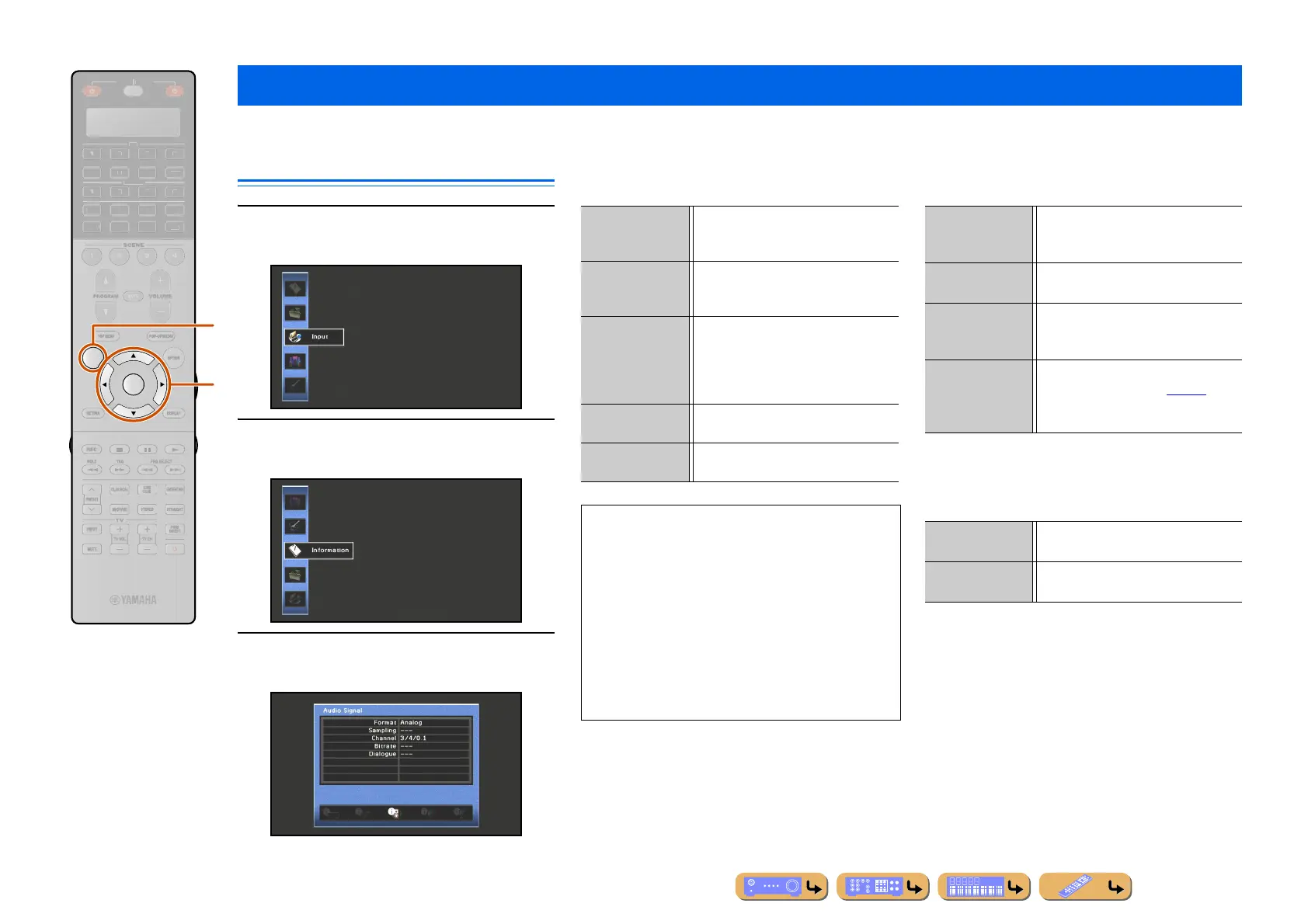

A variety of information for this unit can be displayed.
Selecting information
1
Press hON SCREEN.
2
Use iCursor B / C to select “Information”
and press iENTER.
3
Use iCursor D / E to select an Information
menu and press iENTER.
■ Audio Signal information
Displays information on the current audio signal.
■ Video Signal information
Displays information on the current video signal.
■ HDMI Monitor information
Displays information on the TV screen connected to this
unit’s HDMI OUT 1-2 jacks.
Confirming information of this unit (Information menu)
ON SCREEN
ENTER
SOU
R
C
E
R
ECEIVE
R
AV
AU
DI
O
4
3
1
2
7
5
6
V
-A
UX
4
3
1
2
US
B
MU
LTI
N
ET
P
H
O
N
O
TUNER
D
OC
K
S
IRI
US
[
A
]
h
i
Format Signal format. When this unit is unable to
detect a digital signal, it automatically
switches to analog input.
Sampling The number of samples taken per second
from a continuous signal to make a
discrete signal.
Channel The number of source channels in the
input signal (front/surround/LFE). For
example, a multi-channel soundtrack with
3 front channels, 2 surround channels and
LFE is displayed as “3/2/0.1”.
Bitrate The number of bits passing a given point
per second.
Dialogue The dialogue normalization level preset
to the current input bitstream signal.
• “---” is displayed when this unit cannot display the
corresponding information.
• Some high-definition audio bitstream contents may not
include the discrete surround back left and right
channel signals, but are encoded at a sampling rate of
192 kHz.
• Even when direct bitstream output settings are applied,
some players convert the Dolby TrueHD or Dolby
Digital Plus bitstreams to the Dolby Digital bitstreams,
while converting DTS-HD Master Audio or DTS-HD
High Resolution Audio bitstreams to DTS bitstreams.
HDMI Signal Source video signal type and video signal
output to this unit’s HDMI OUT 1-2
jacks.
HDMI Resolution Input signal (analog or HDMI) and output
signal (HDMI) resolution.
Analog Resolution Resolution of the source video signal and
the analog video signal output to this
unit’s MONITOR OUT jacks.
HDMI Error Error message for HDMI sources or
connected HDMI devices (☞p. 156).
This information is displayed only when
the error come up.
Interface Displays information on the current
connection interface.
Video Resolution Displays the frequency for each video
resolution of the TV currently connected.
