CONNECTIONS
Advanced speaker configuration
En 27
■
Using front speakers that support bi-amp
connection, surround back speakers and
front presence speakers

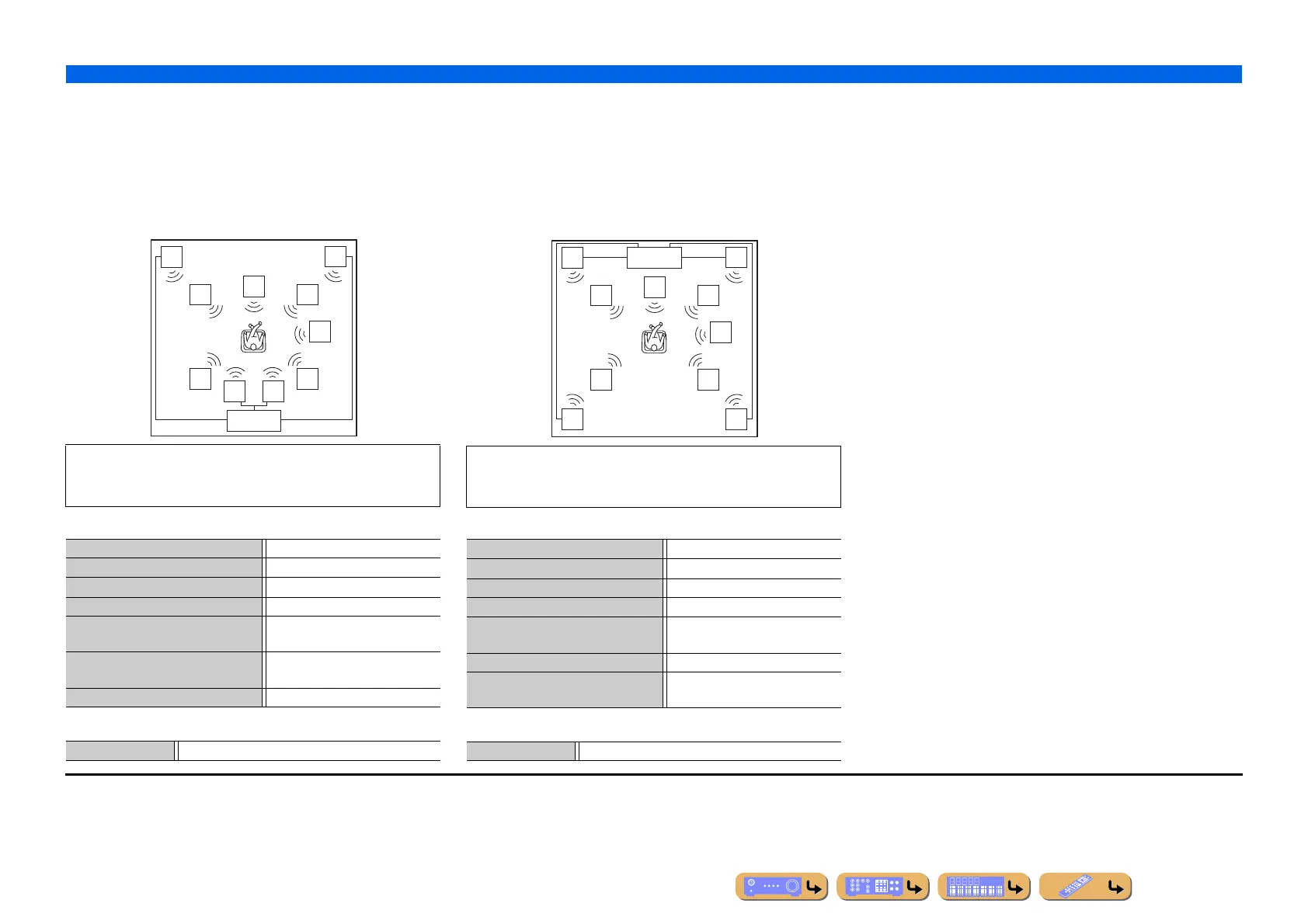

■ 9.1-channel speaker layout
(Front speaker (Bi-amp) + 3 speakers + subwoofer
+ external surround back speakers + external front
presence speakers)
■ Connections of speakers
■ Assigning a speaker configuration
■
Using the front speakers that support bi-
amp connections, the external amplifier to
output the front and rear presence
channels
■ 9.1-channel speaker layout
(Front speaker (Bi-amp) + 3 speakers + subwoofer
+ external front and rear presence speakers)
■ Connections of speakers
■ Assigning a speaker configuration
When an external amplifier is used, front presence speakers and
surround back speakers can be used simultaneously with front
speakers that support bi-amp connection. J1
FRONT jacks Front L/R speakers (bi-amp)
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Front L/R speakers (bi-amp)
SUR.BACK (PRE OUT) jacks External amplifier
(for surround back L/R speakers)
F.PRESENCE (PRE OUT) jacks External amplifier
(for front presence L/R speakers)
SUBWOOFER (PRE OUT) jack J2 Subwoofer
Power Amp Assign 5ch BI-AMP + SB + FPR
L
C
R
SL SR
SW
EA
SBRSBL
BI-AMP BI-AMP
FPR
FPL
Using the external amplifier can enable to use the front and rear
presence speakers while using the front speakers that support bi-
amp connections. J1 J3
FRONT jacks Front L/R speakers (bi-amp)
CENTER jack Center speaker
SURROUND jacks Surround L/R speakers
SURROUND BACK jacks Front L/R speakers (bi-amp)
F.PRESENCE (PRE OUT) jacks External amplifier
(for front presence L/R speakers)
SUBWOOFER (PRE OUT) jack J2 Subwoofer
R.PRESENCE (ZONE OUT) jacks External amplifier
(for rear presence L/R speakers)
Power Amp Assign 5ch BI-AMP + FPR + RPR
L
C
R
SL SR
SW
BI-AMP BI-AMP
EA
FPR
FPL
RPR
RPL
J
1 : An external amplifier equipped with four channels is required for this speaker
layout.
J
2 : You can also use two subwoofers by connecting them to both SUBWOOFER1
(FRONT) and SUBWOOFER2 (REAR) jacks.
J
3 : The sound cannot be output for Zone3 in this condition.
To Next Page
