5.5.4 Wiring
Connect the 24-VDC and 0-VDC lines to the terminals on the base mounting unit to power the cooling fan.
Note 1. The power supply for the cooling fan on the base mounting unit is separate from the control power supply for the
power regeneration converter and SERVOPACK and separate from the power supply for the sequence signals.
2. The output current that is required from the power supply when one power supply is connected to more than one
base mounting unit is the total input current for all of the connected units. Use a suitable wire size for the required
current and do not exceed the wire size range of the terminal block.

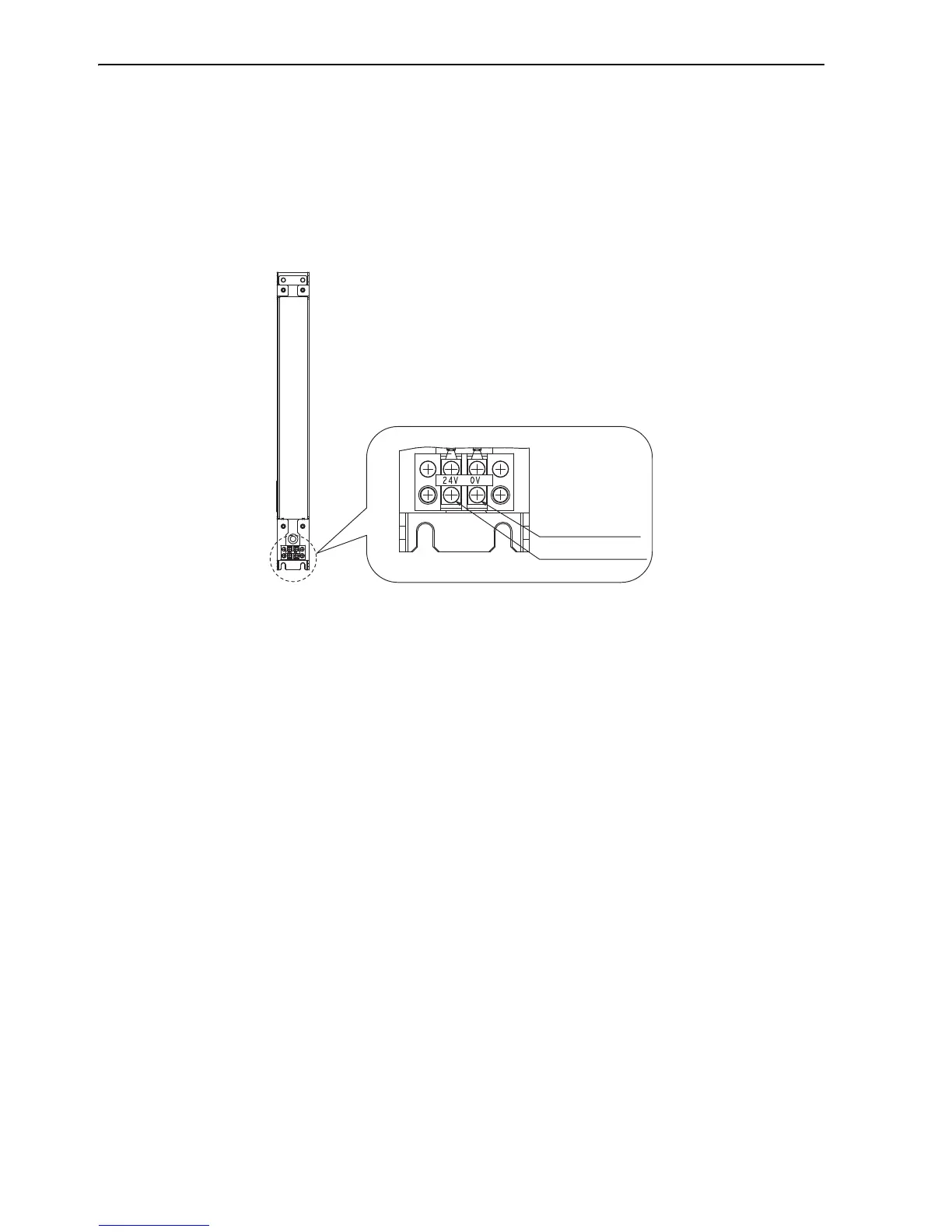

Terminal Name: 0 V
Terminal Name: 24 V
