5.5.5 Mounting Method
Mount the power regeneration converter and SERVOPACK to the base mounting units as described in this
section.

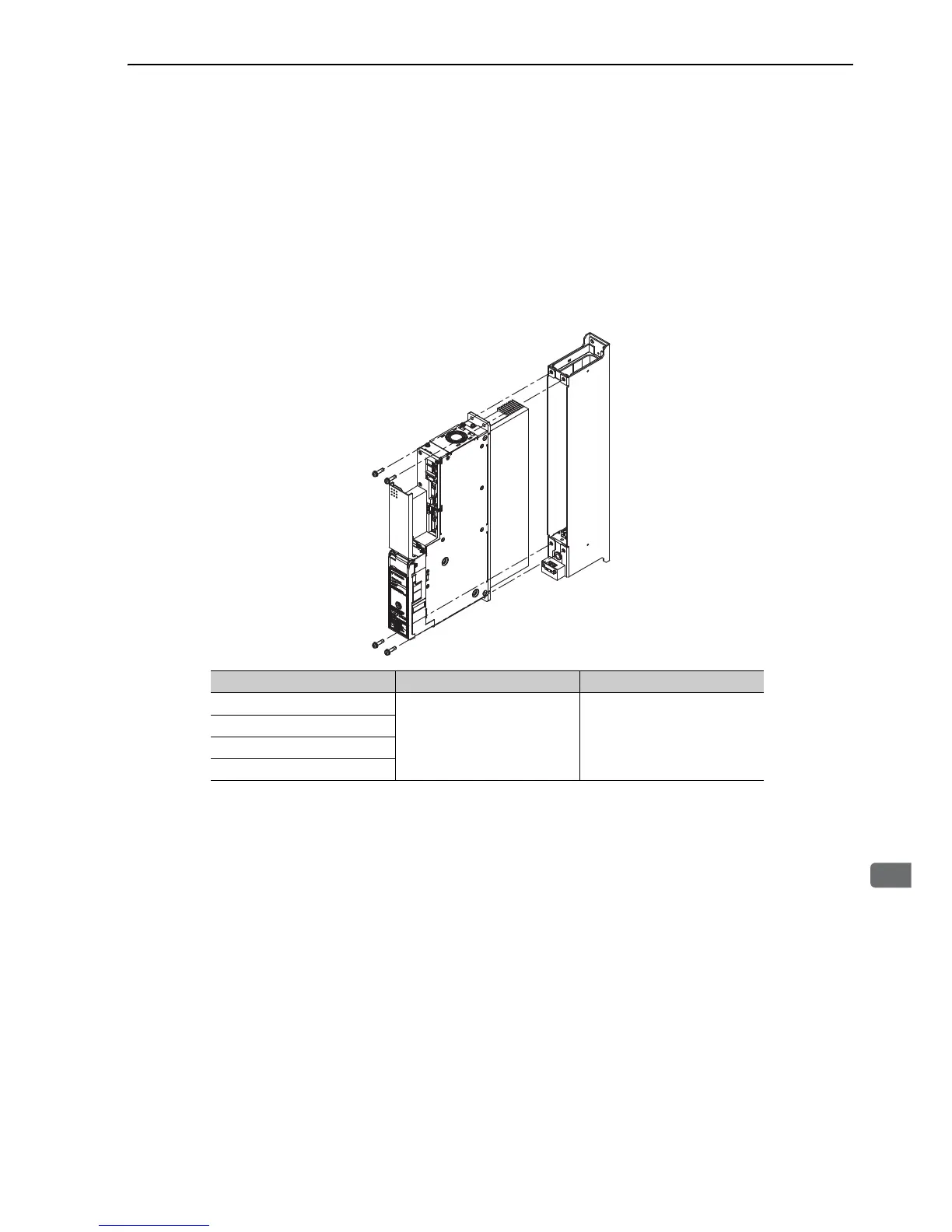

As shown in the following figure, insert the heat sink on the power regeneration converter or SERVOPACK
into the base mounting unit and secure it with the enclosed screws (four).
The side of the base mounting unit with the terminal block is the bottom of the unit.
For instructions on installation in a control panel, refer to 6.2
Σ
-V-SD Driver.
Model Size of Enclosed Screws Tightening Torque
JUSP-JUBM050AA
M5
2.6 to 3.2 Nxm
(23.0 to 28.3 lbfxin)
JUSP-JUBM075AA
JUSP-JUBM100AA
JUSP-JUBM150AA
To Next Page
