YASKAWA CACR-JU series User Manual

7.1 Motors
7-11
Wiring
7

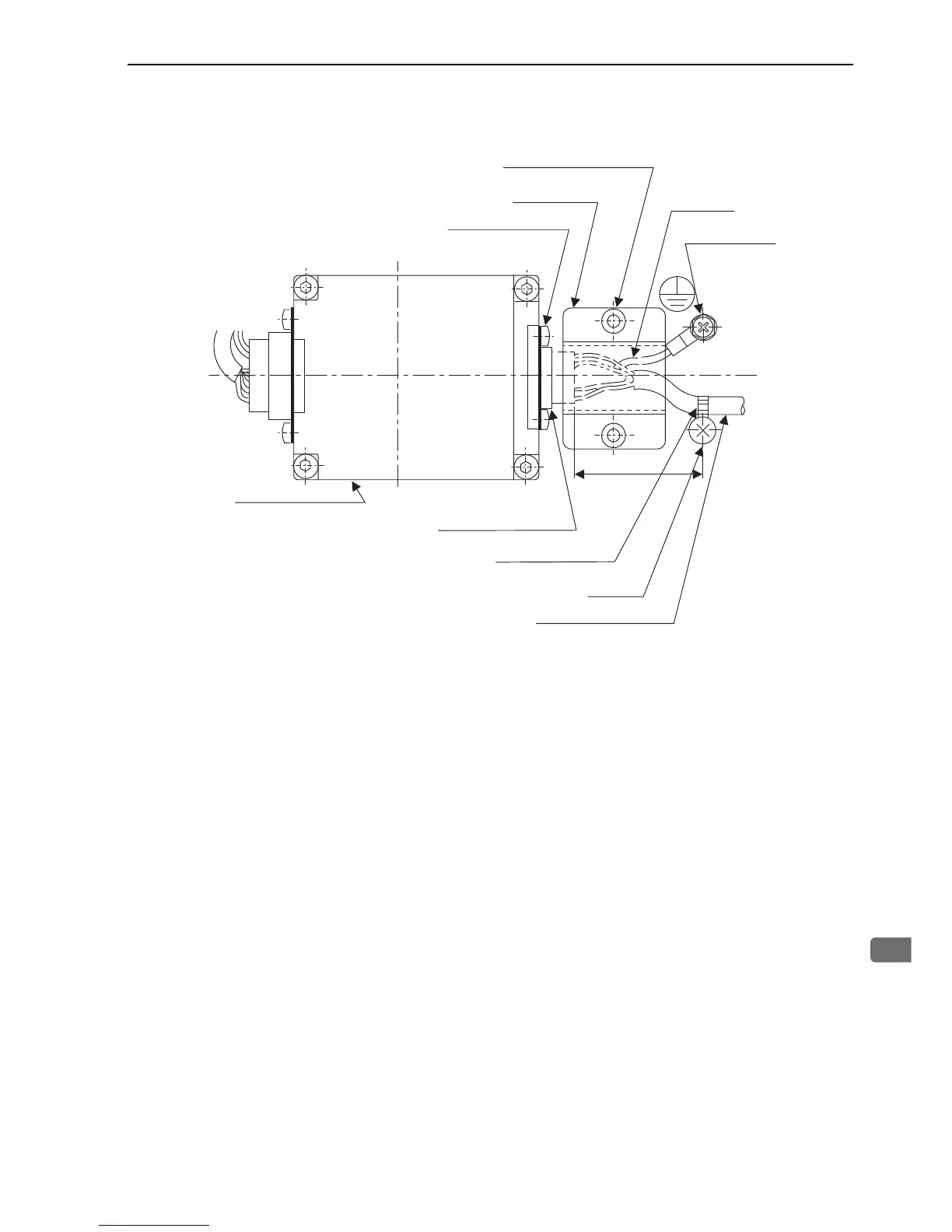

•Connections of Serial Encoder in Terminal Box
Note 1. When tightening No.4-40 UNC screws, the positioning hinders inserting the screwdriver. Make sure that the
screws are not inserted at an angle.
2. Ensure that stress is not applied to the connection areas of the cables and plug housings when cables are secured
using Insulock binders.
3. Make sure that the signal lines and shield wires do not become stuck in the protective cover.
4. The depth for M4 screws is 7 mm max.
M4 ground screw
Shield wires
2-M4 socket head cap screws
Protective cover
2-No.4-40 UNC screws
Cable
(serial data output side)
M4 screw
Insulock (with head)
Plug housing : JEC-9P
Serial converter unit
Approx. 40 mm
