YASKAWA CACR-JU series User Manual

7.1 Motors
7-13
Wiring
7

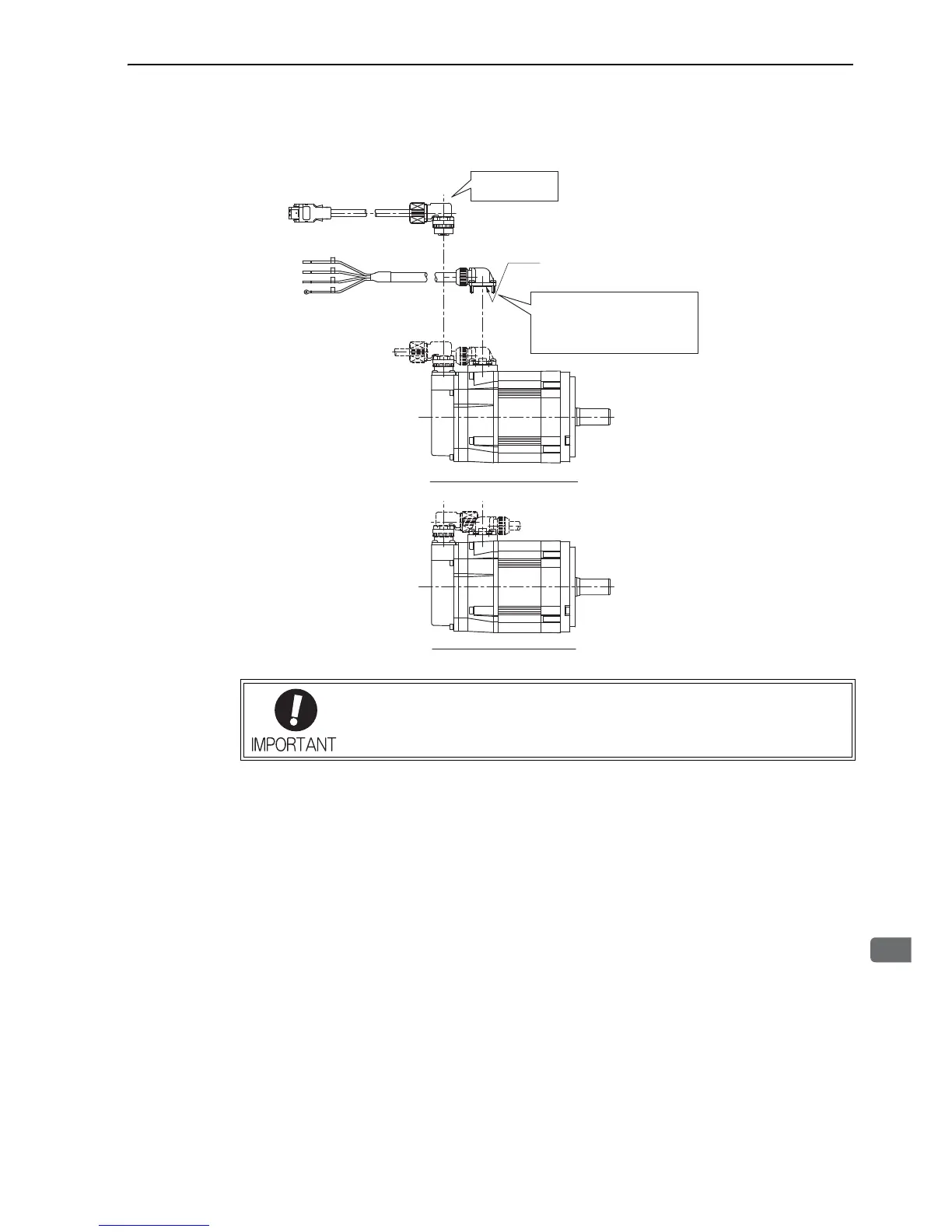

2. Mount the cable connector on the servomotor and fix it with screws as shown in the figure
below.
∗ In this case, contact your Yaskawa representative.
Servomotor main circuit cable
,
SGMGV-05
4-M3 pan-head screws
Tightening torque: 0.44 N
- m
Encoder cable
,All models
U
V
W
G
Lead on Non-load Side
Lead on Load Side*
O-ring
molex
• First, connect the servomotor to the servomotor main circuit cable end.
• Do not remove the O-ring. Mount the connector so that the O-ring is seated properly.
If the O-ring is not seated properly, the requirements for the protective structure
specifications may not be met.
