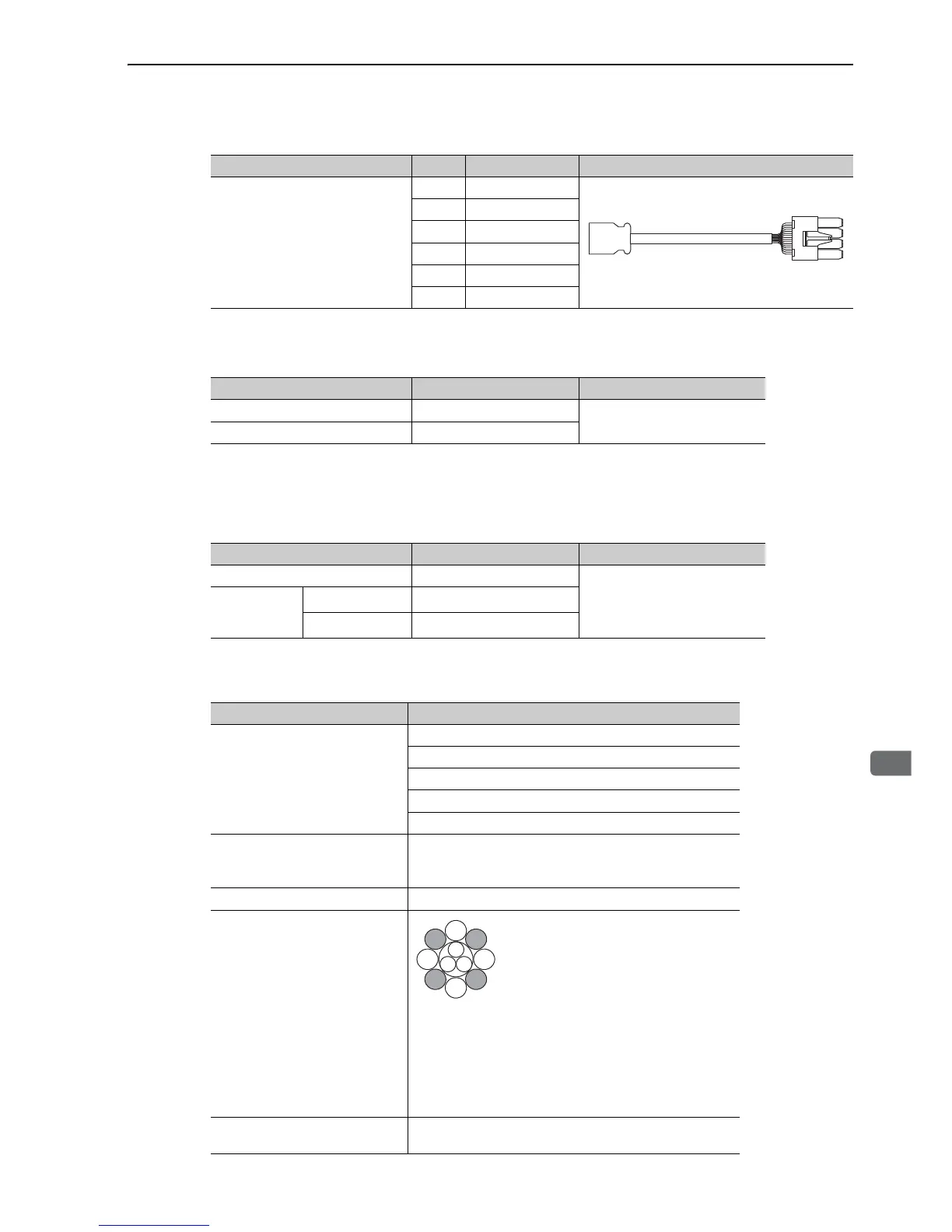

(2) Pulse Encoder Cable
Use the following information to select appropriate parts when assembling a pulse encoder cable.
Specifications for cable-end connectors to SERVOPACKs
Note: This cable-end connector is equivalent to and can be used as substitute for the 10120-6000LE connector made by
Sumitomo 3M Ltd.
Specifications for cable-end connectors to spindle motors
The cable-end connector to the spindle motor is stored in the motor's terminal box upon delivery.
∗ The YC-202 crimping tool is required. Contact J.T.S. Mfg. Co., Ltd. for more information.
Cable specifications
Name Length Order No. External Appearance
Pulse Encoder Cable
for Spindle Motor
2 m JZSP-CJP00-02-E
3 m JZSP-CJP00-03-E
5 m JZSP-CJP00-05-E
10 m JZSP-CJP00-10-E
15 m JZSP-CJP00-15-E
20 m JZSP-CJP00-20-E
To SERVOPACK To spindle motor
Name Model Manufacturer
Connector Plug 54331-0201
Molex Japan Co., Ltd.
Electrical Contact 54306-2019
Name Model Manufacturer
Connector ELP-12V
J.T.S Mfg. Co., Ltd.
Electrical
Contact
Other pins
LLF-01T-P1.3E
*
No.10 pin
LLF-41T-P1.3E
*
Items Standard Type
Order No.
B9400064-1-E (3 m)
B9400064-2-E (5 m)
B9400064-3-E (10 m)
B9400064-4-E (15 m)
B9400064-5-E (20 m)
General Specifications
KQVV-SW:
AWG22×3 (three colors)
AWG26×4 (four twisted-pair)
Finished Dimensions 7.5 mm dia.
Internal Configuration and
Lead Color
A1: Red
A2: Black
A3: Yellow green
F1: Blue and white - twisted-pair wire
F2: Yellow and white - twisted pair wire
F3: Green and white - twisted pair wire
F4: Orange and white - twisted pair wire
Available Cable Lengths
(Yaskawa Standards)
3 m, 5 m
A1
A2A3
F2F4
F1
F3
To Next Page
