2 Compatible Devices
2.2.2 Servomotor
2-16

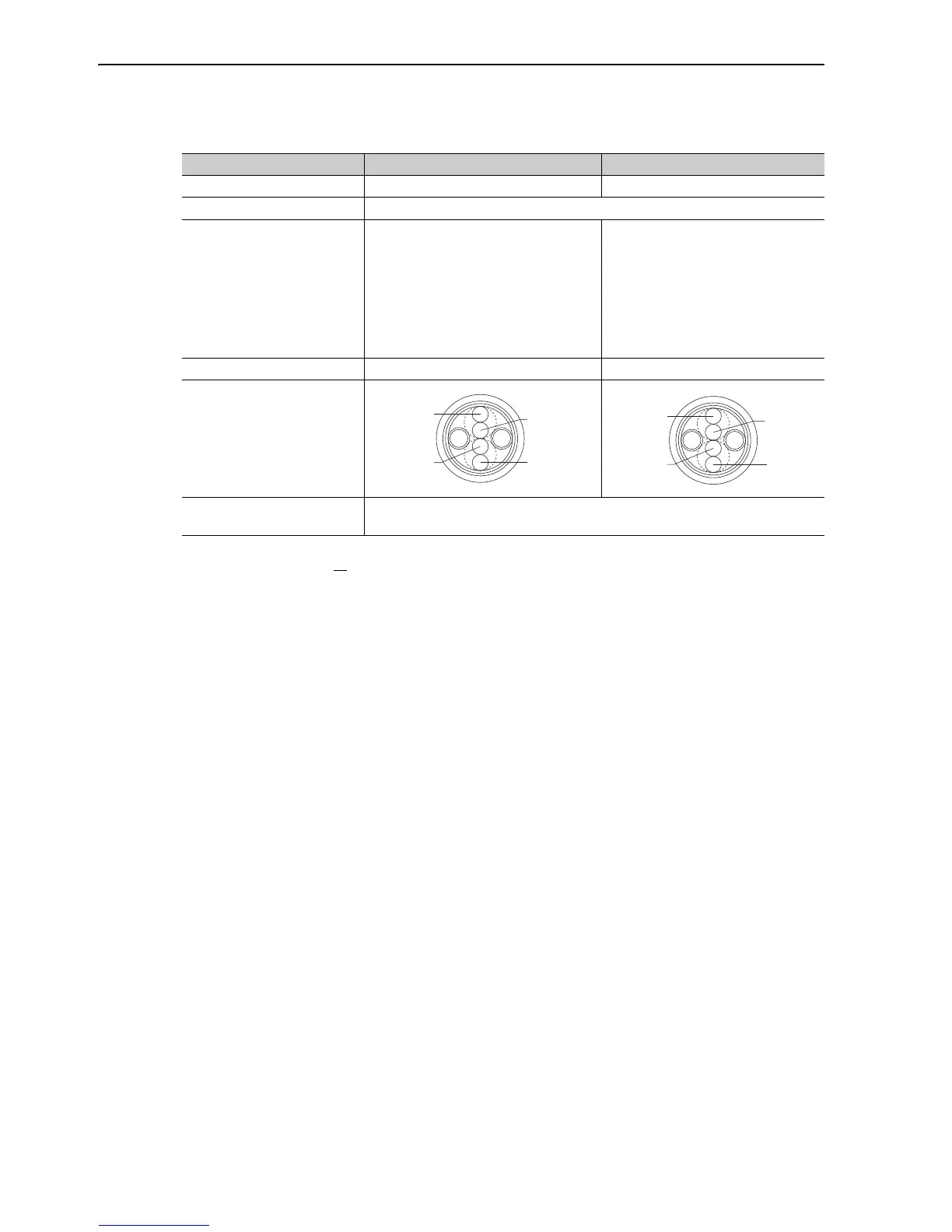

 Cable specifications (when the cable length is 20 m or shorter)
∗ Specify the cable length in  of order number.
Example: JZSP-CMP09-05
-E (5 m)
Items Standard Type Flexible Type
Order No. * JZSP-CMP09--E JZSP-CSP39--E
Max Cable Length 20 m
Specifications
UL20276 (Rated temperature: 80°C)
AWG22×2C+AWG24×2P
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.15 mm dia.
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath:
1.09 mm dia.
UL20276 (Rated temperature: 80°C)
AWG22×2C+AWG24×2P
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.35 mm dia.
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath:
1.21 mm dia.
Finished Dimensions 6.5 mm dia 6.8 mm dia
Internal Configuration and
Lead Color
Available Cable Length
(Yaskawa Standards)
3 m, 5 m, 10 m, 15 m, 20 m
Light blue
Orange
Light
blue/
white
Orange/
white
Red
Black
Orange Green
Black/
light blue
Black/
pink
Red/
light blue
Red/
pink
