4.1 Power Regeneration Converter
4-3
Specifications and External Dimensions for Σ-V-SD Drivers
4

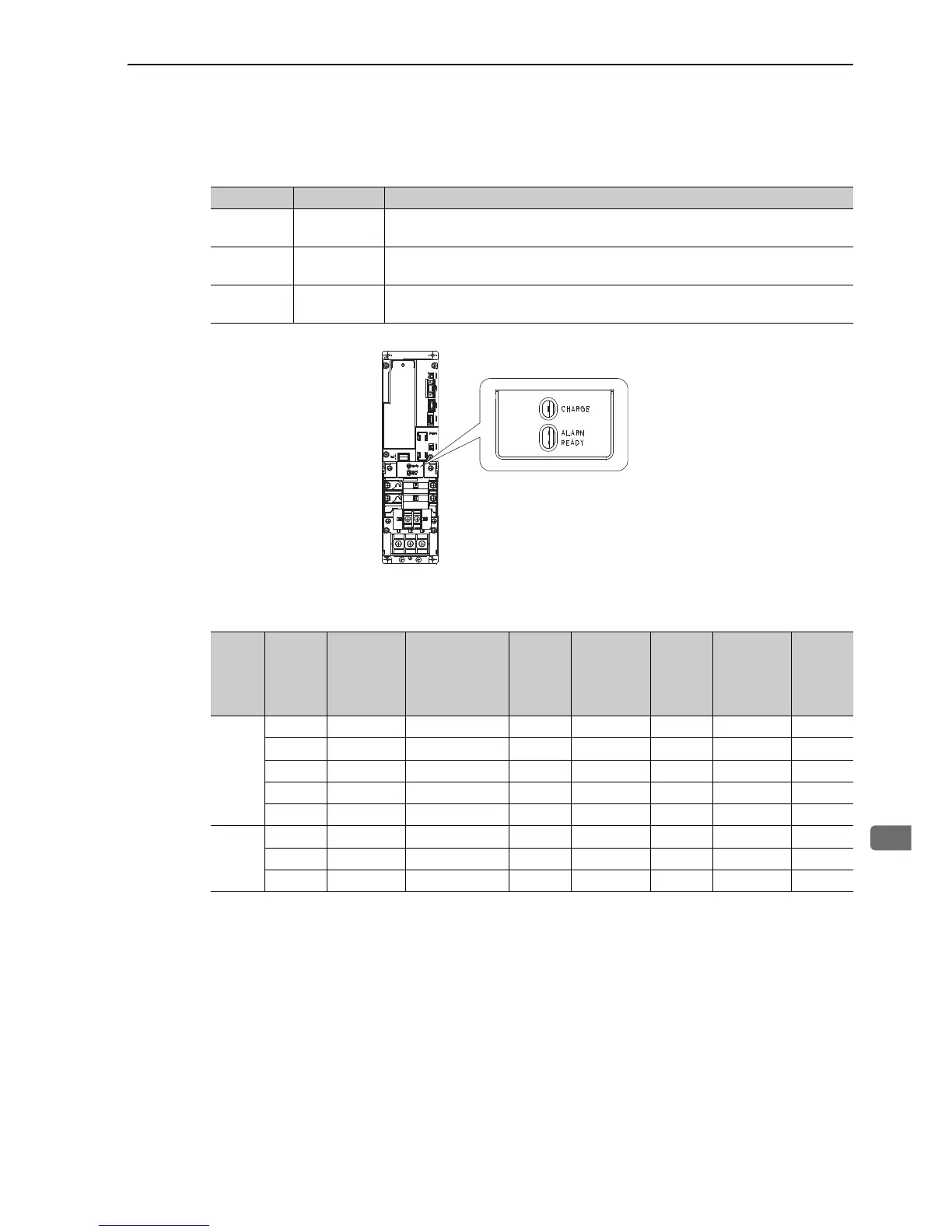

(2) Panel Display
The status of power regeneration converter can be checked on the panel display.
(3) I/O Current and Inrush Current
Name LED Color Meaning
CHARGE Orange
Lit when main circuit power is on.
Not lit when main circuit power is off.
ALARM Red
Lit when alarm occurs.
Not lit when no alarm occurs.
READY Green
Lit when CPU of power regeneration converter works normally.
Not lit when CPU of power regeneration converter not working.
Power Regeneration Converter
Panel Display
Voltage
Capacity
(50%ED)
kW
Capacity
(Continuous
Ratings)
kW
Model
Input
Current
(50%ED)
Arms
Input
Current
(Continuous
Ratings)
Arms
Output
Current
(50%ED)
Arms
Output
Current
(Continuous
Ratings)
Arms
Inrush
Current
(Main
Circuit)
A
0-P
200 V
15 11 CACP-JU15A3 73 54 69 51 83
18.5 15 CACP-JU19A3 90 73 85 69 83
22 18.5 CACP-JU22A3 107 90 102 85 83
30 22 CACP-JU30A3 145 107 138 102 178
45 37 CACP-JU45A3B 218 179 207 170 178
400 V
15 11 CACP-JU15D3 36 27 36 27 173
18.5 15 CACP-JU19D3 45 36 45 36 173
22 18.5 CACP-JU22D3 53 45 53 45 173
