A

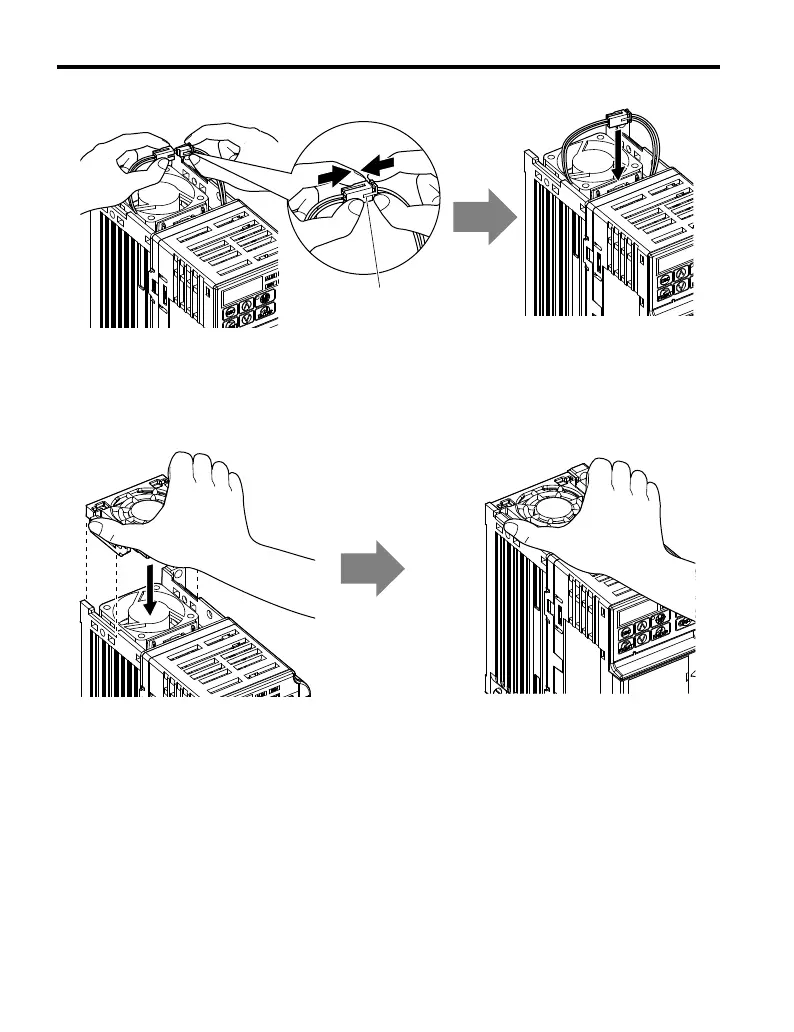

A – Push the connectors together so no space remains between them.
Figure 6.3 Connectors
Note: Ensure that the left and right tabs are locked back into place.
3.
Align the left and right cover tabs to install the fan cover back on the top of the drive.
Figure 6.4 Installation
6.4 Drive Cooling Fans
164
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
2/6/2008-14:44
