Multiple Drive Installation
When
installing
multiple
drives
into
the
same
enclosure panel, mount the drives according to
Figure 2.2. When mounting drives with a minimum side-by-side clearance of 2 mm according
to Figure 2.3, derating must be considered and parameter L8-35 must be set. Refer to
Parameter List on page 197.
2 mm
D
C
C
B
B
A
A – Line up the tops of the drives.
B – 30 mm minimum
C – 100 mm minimum
D – Airflow direction

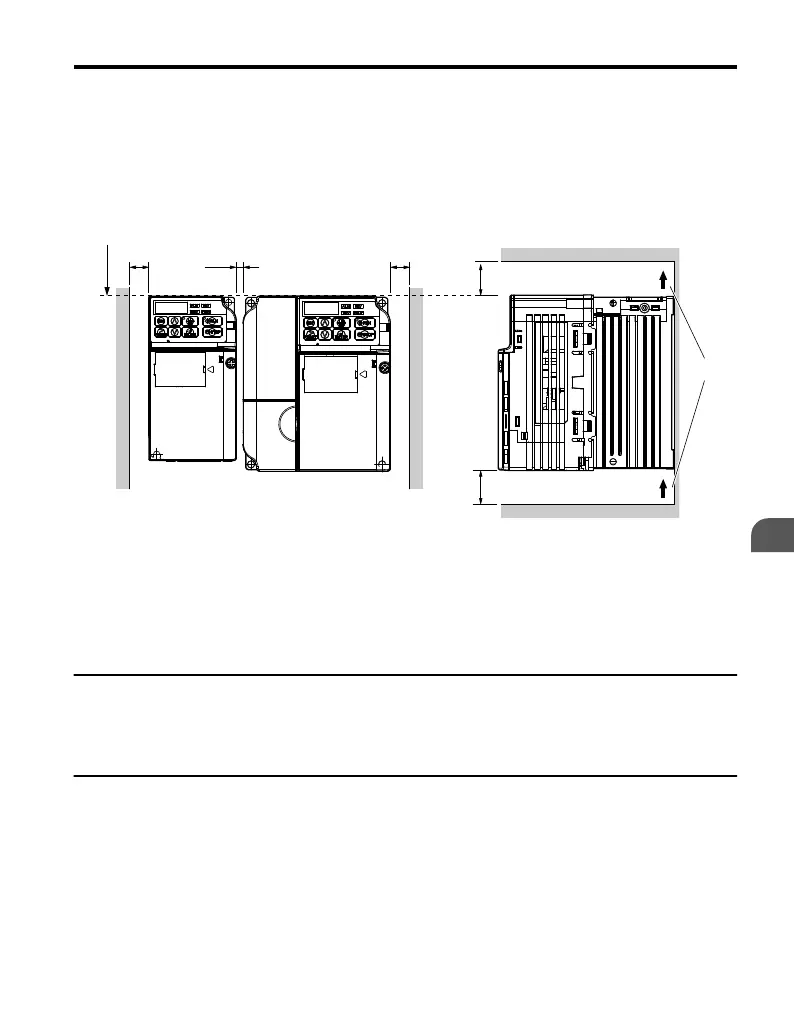

Figure 2.3 Space Between Drives (Side-by-Side Mounting)
Note: When installing drives of different sizes into the same enclosure panel, the tops of the drives should line
up. Leave space between the top and
bottom of stacked drives for cooling fan replacement if required. Using
this method, it is possible to replace the cooling fans later.
u
Removing and Attaching the Protective Covers
Refer to Electrical Installation on page 39, for information regarding the removal and
reattachment of protective covers.
u
Exterior and Mounting Dimensions
The following table matches each drive model with its appropriate drawing.
2.2 Mechanical Installation
