1.2 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received
the wrong model or the drive does not function properly, contact your
supplier.
u
Nameplate
PRG : 1010
U
L
C US
LISTED
IND.CONT.EQ.
7J48 B
CIMR-JA2A0004BAA
YASKAWA ELECTRIC CORPORATION MADE IN JAPAN
:
: AC3PH 200-240V 50 / 60Hz 2.7A / 1.4A
: AC3PH 0-240V 0-400Hz 1.2A / 0.8A
: 0.9 kg
:
:
: E131457 IP20
PASS
MODEL
MAX APPLI. MOTOR : 0.75kW / 0.4kW REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
Drive model
Input
specifications
Output
specifications
Lot number
Serial number
Software version

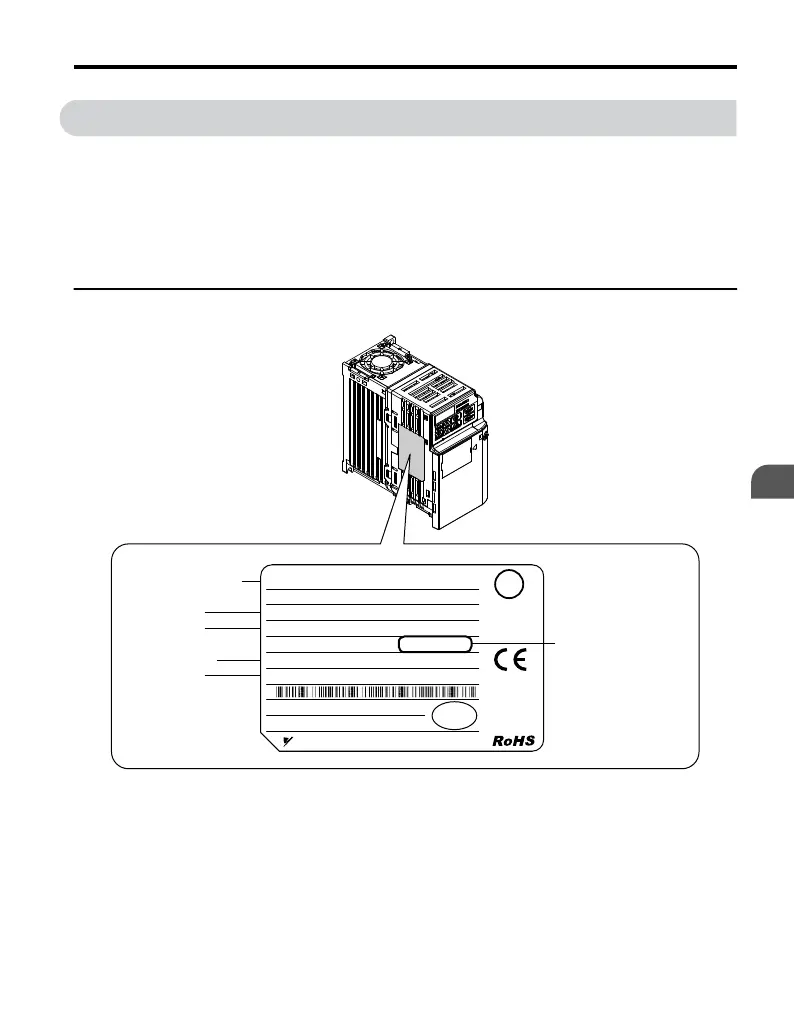

Figure 1.1 Nameplate Information
1.2 Model Number and Nameplate Check
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
21
1
Receiving
