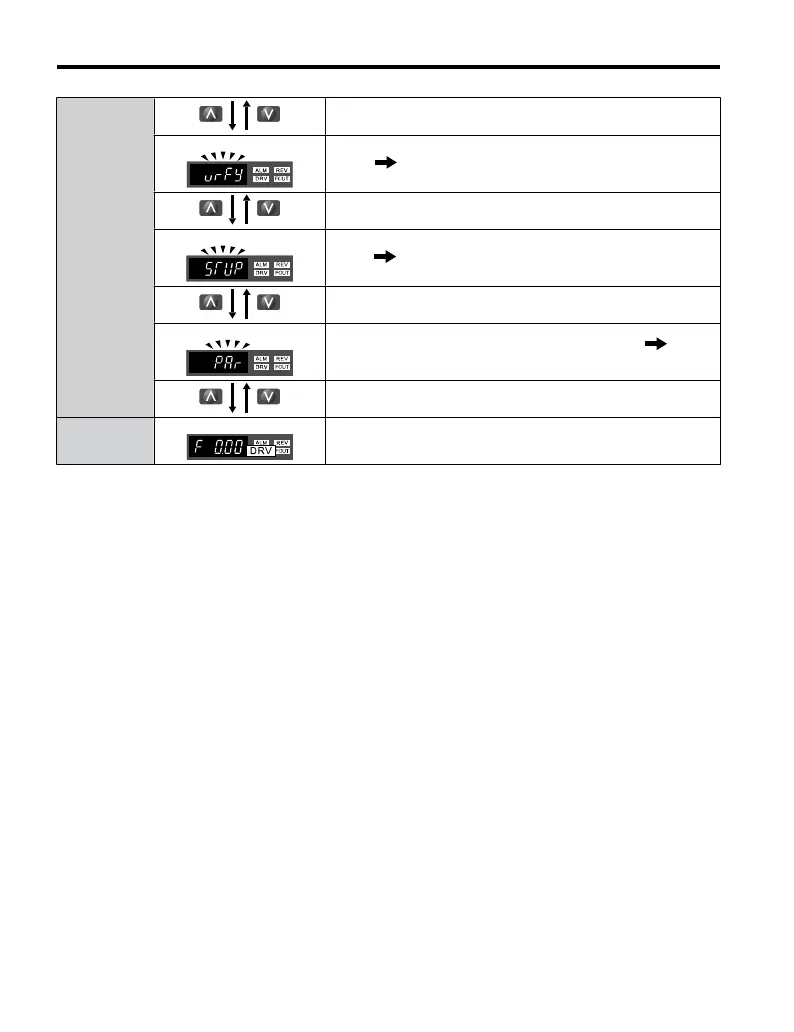

Programming
Mode
Verify Function
Lists all parameters that have been edited or changed from default
settings. Refer to Verifying Parameter Changes: Verify Menu on
page
83.
Setup
A select list of parameters necessary to get the drive operational
quickly. Refer to The Setup Group within the Programming
Mode on page 81.
Parameter Setting
Allows the user to access and edit all parameter settings. Refer
to Parameter List on page 197.
Drive Mode
Frequency Reference
Returns to the frequency reference display screen.
n
Drive Mode Details
The following actions are possible in the Drive Mode:
• Run and stop the drive.
• Monitor the operation status of the drive (frequency reference, output frequency, output
current, output voltage, etc.).
• View information on an alarm.
Note: Select "Drive Mode" when running. The mode can be switched to any mode (program mode, etc.) other
than drive mode while
the drive is stopped. However, the drive cannot be operated in other modes. Return
the mode to "Drive Mode" after completing periodic inspection.
Figure 4.4 illustrates changing the default frequency reference of F 0.00 (0 Hz) to F 6.00 (6
Hz) while in Drive Mode. This example assumes the drive is set to LOCAL.
4.3 The Drive and Programming Modes
80
YASKAWA ELECTRIC TOEP C710606 25B YASKAWA AC Drive J1000 Installation & Start-Up Manual
2/6/2008-14:44
