4.2 Operating Procedures in Parameter Copy Mode
4.2.1 Reading Parameters from the SERVOPACK (SERVO→OP)
4-5
4
Parameter Copy Functions
Additional Information on Reading Parame-
ters
• If a parameter block that already contains data is selected and the
parameters are read, the data in the parameter block is overwritten.
• Press the Key to cancel the operation while reading parameters.
Canceled will be displayed and the display will return to the Parame-
ter Block Selection Display.
• If you cancel the reading operation or if the Digital Operator is discon-
nected from the SERVOPACK during the reading operation, the
selected parameter block will become an empty block (“****”).
• During the reading operation, the current process will be displayed
sequentially on the Digital Operator as shown below. The reading
operation requires approximately 10 seconds.
• When the reading operation has been completed, part of the SERVO-
PACK model number will be registered as the name of block where the
parameters are saved. Blocks that contain parameters that were read
from the same SERVOPACK will have the same name.
6
Press the Key.
The display will return to the Param-
eter Copy Mode Main Menu.
Continued from previous page.

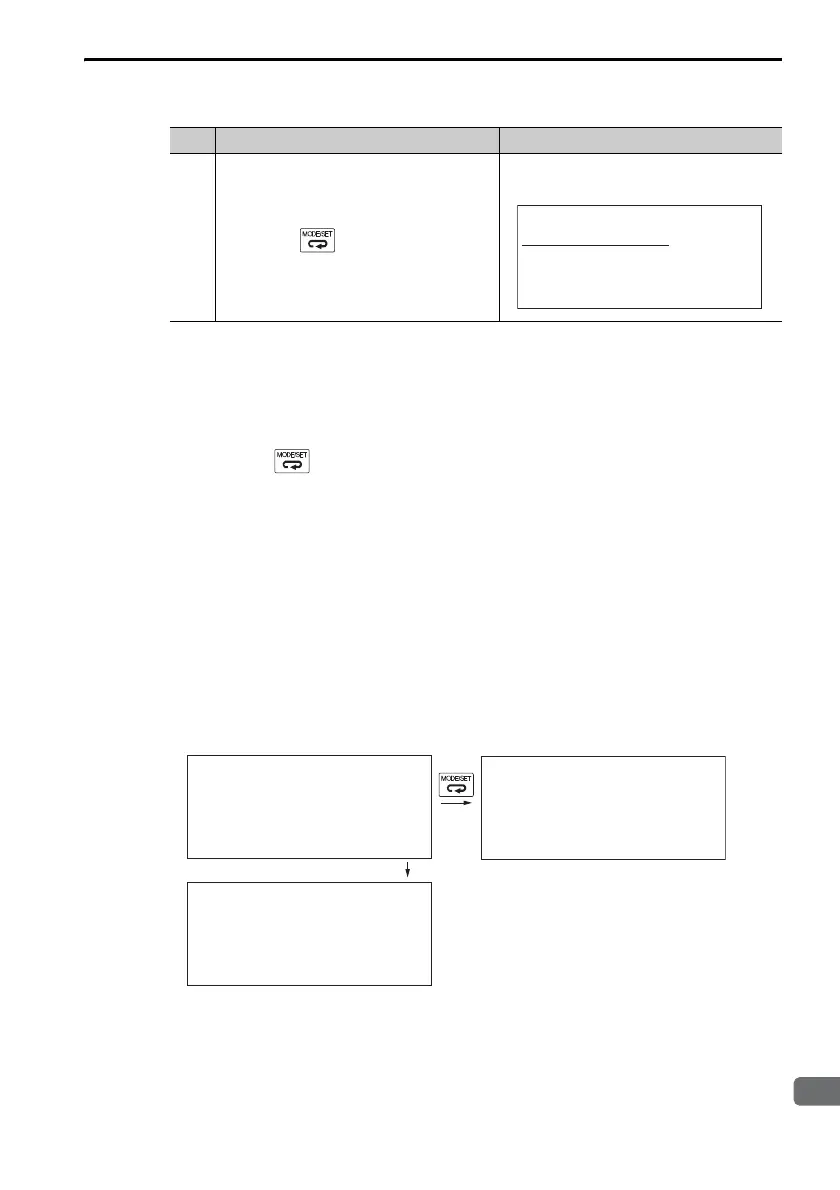

Step Operation Result
1:BB COPY
1:S ERVO
→
OP
2:OP
→
S ERVO
3 :VERIFY
4:LIS T
Reading the Parameters from the SERVOPACK
Operation Completed
Operation Canceled
00:
****
Reading
Parameters ..
1:BB S ERVO
→
OP
00:S GD7S -R70
Completed
1:BB S ERVO
→
OP
00:
****
Canceled
1:BB S ERVO
→
OP
To Next Page
