3.2 Operating Procedures for Utility Functions
3.2.41 INDEXER Status Monitor (FnB0A)
3-127
3.2.41
INDEXER Status Monitor (FnB0A)
This function shows the internal status of the INDEXER Module, such as
the current position and input/output signals.
Preparation
None

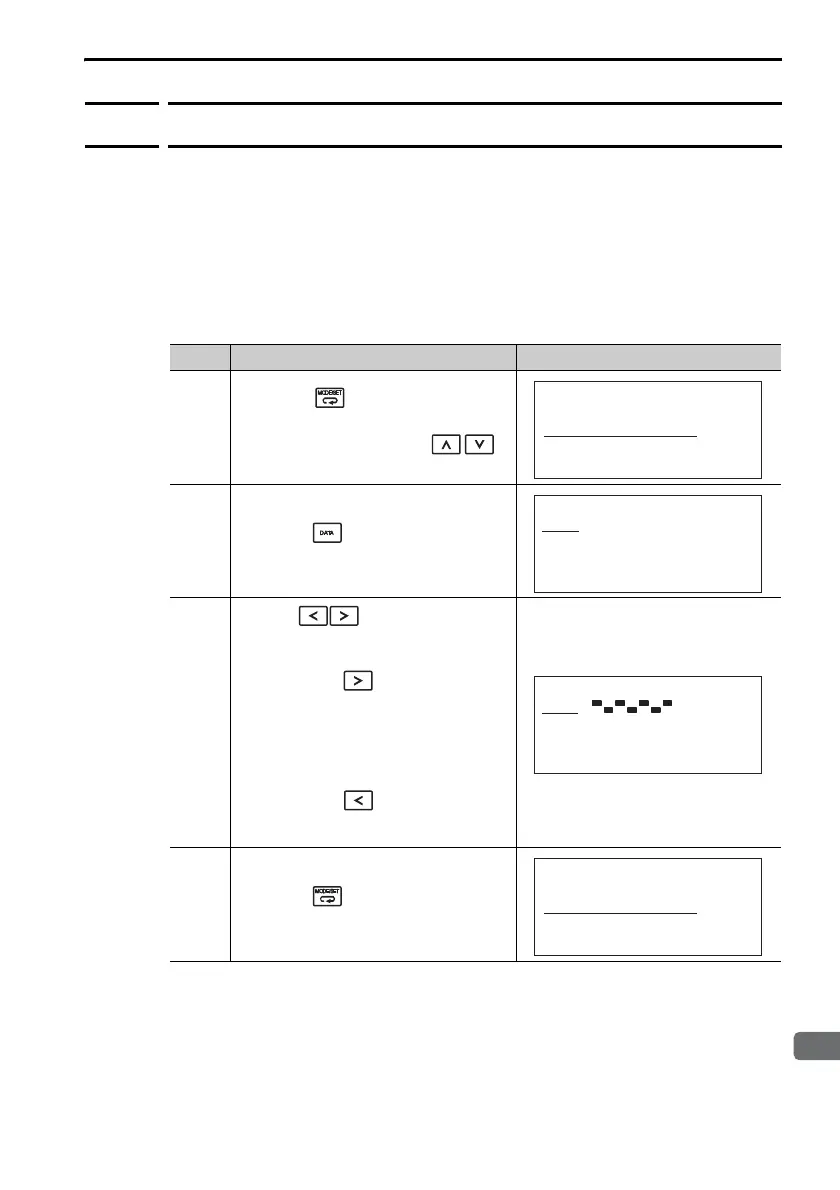

Operating Procedure
Step Operation Result
1
Press the key to open the Util-
ity Function Mode main menu, and
move the cursor with the
keys to select FnB0A.
2
Press the key to view the
FnB0A operation screen.
3
Use the keys to change the
monitor display content.
Note: Press the key to change the
content being displayed in the fol-
lowing order.
ALM → ERR → IN2 → OUT2 →
STS → PUN → PFB → POS →
DST → RPOS → RDST → PGM-
STEP → EVTIME → LOOP
Press the key to change the
content being displayed in the
reverse order.
4
Press the key to return to the
Utility Function Mode main menu.
