5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.5.10 Regenerative Resistor Unit
5-28

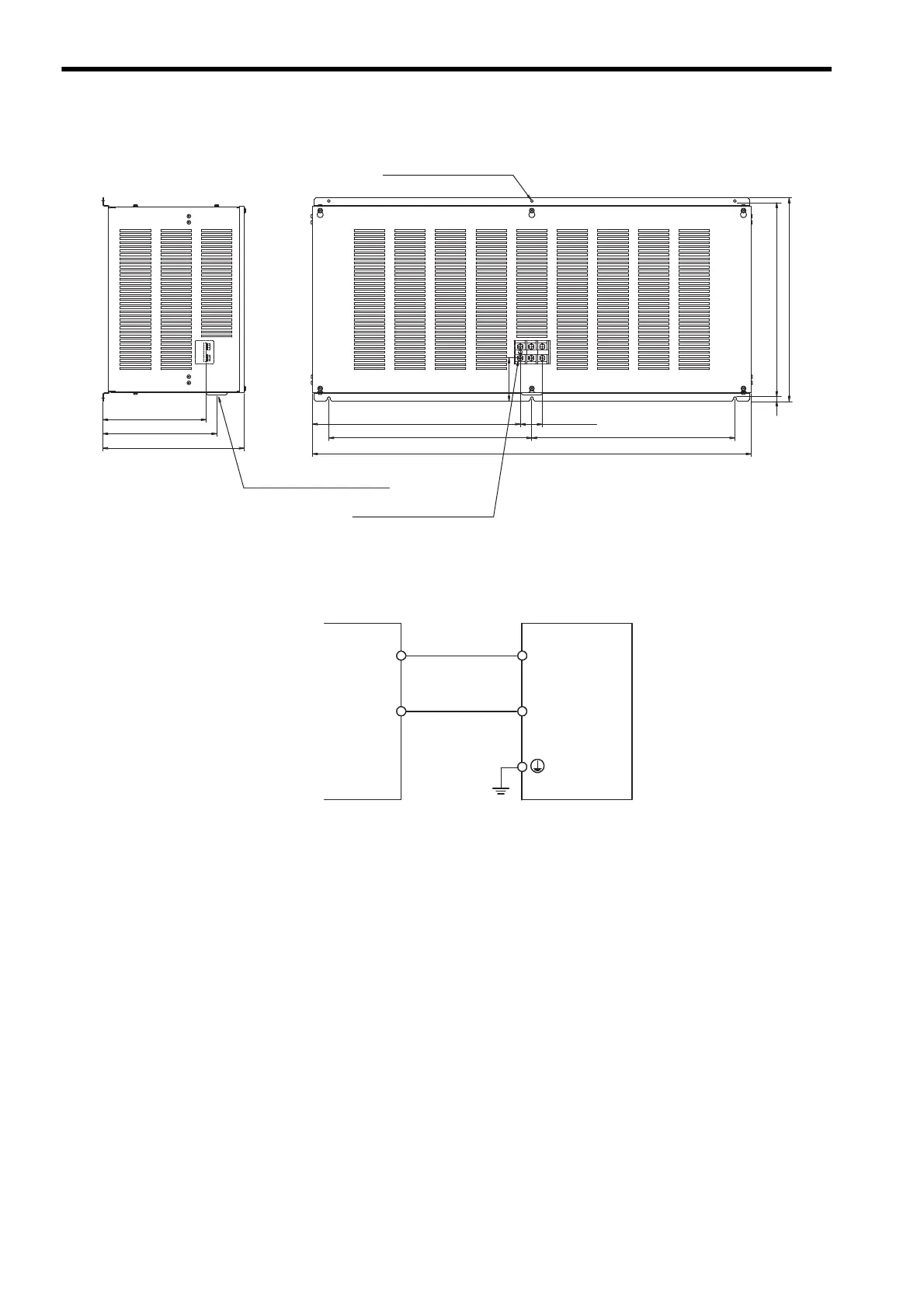

(i) JUSP-RA25 Regenerative Resistor Unit
(4) Connections
Connect the Regenerative Resister Unit to the SGDM/SGDH SERVOPACKs as shown in the following diagram.
27x2=54
255
281
348
512
500
1081
500
485
7.5
500
106
Units: mm
Approx. mass: 45 kg
Power line insertion hole
(φ33, with rubber bushing)
M8 main circuit terminals
6 × M5 mounting holes
B1
B2
SGDM/SGDH
SERVOPACK
B1
B2
Regenerative Resistor Unit
