5.5 Peripheral Devices
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5-27

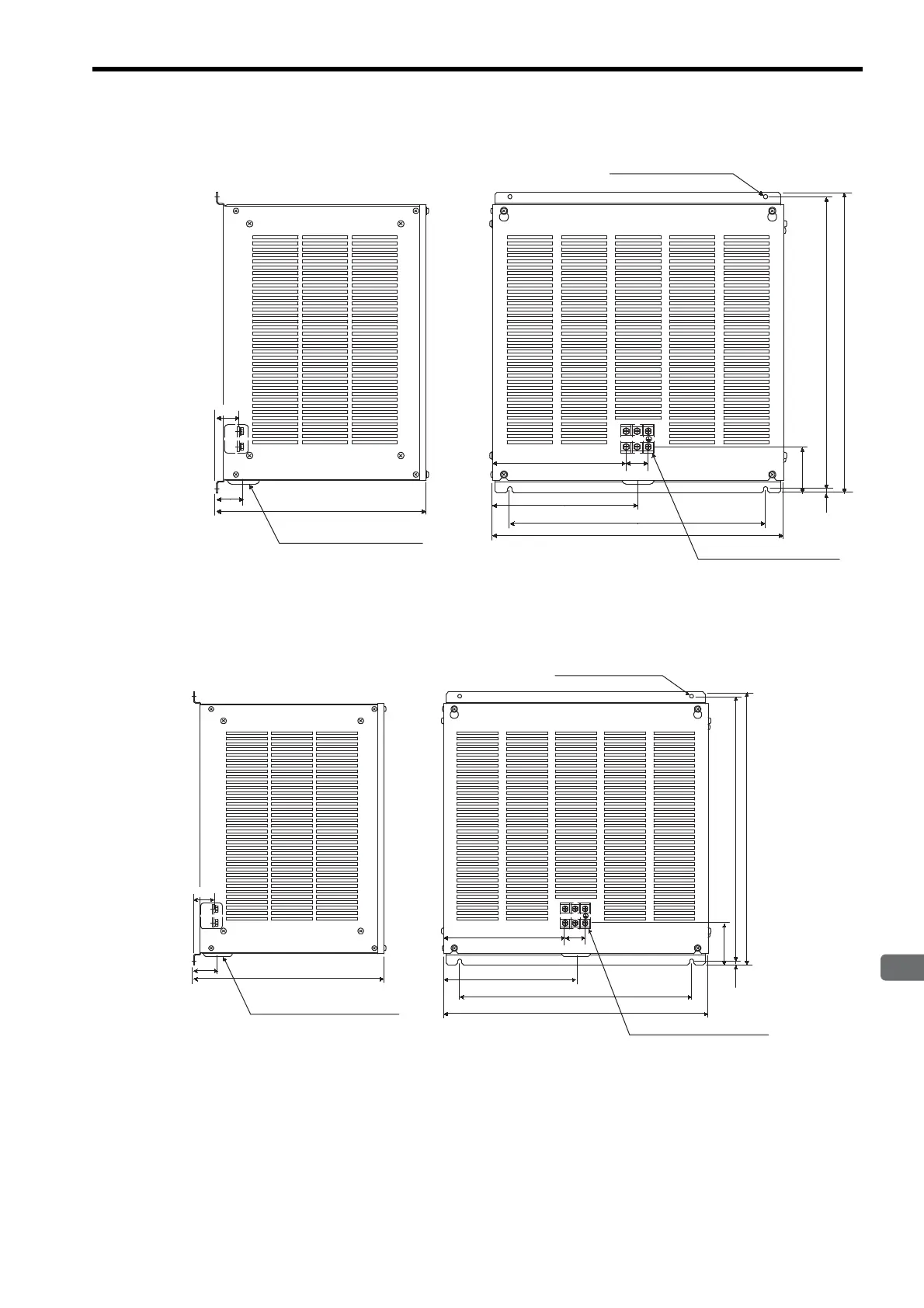

(g) JUSP-RA15 Regenerative Resistor Unit
(h) JUSP-RA16 Regenerative Resistor Unit
348
45
484
425
242
224
38
7.5
485 500
78.5
B1 B2
Units: mm
Approx. mass: 21.5 kg
Power line insertion hole
(φ33, with rubber bushing)
M6 main circuit terminals
4 × M5 mounting holes
35.5
B1 B2
348
45
224
242
425
484
7.5
485
500
78.5
38
Units: mm
Approx. mass: 23.5 kg
Power line insertion hole
(φ33, with rubber bushing)
M6 main circuit terminals
4 × M5 mounting holes
35.5
