YASKAWA E-II Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.5.10 Regenerative Resistor Unit
5-26

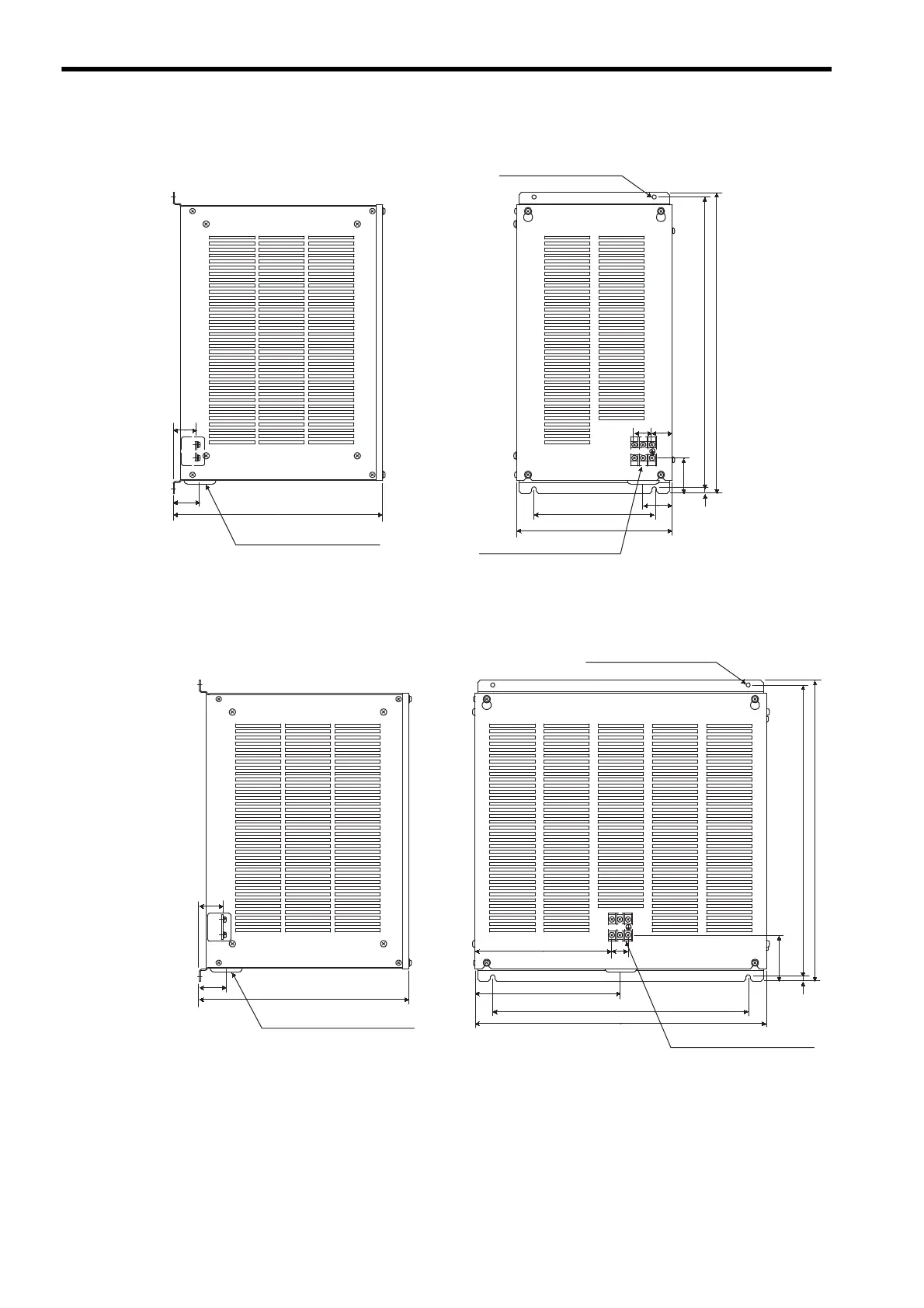

(e) JUSP-RA13 Regenerative Resistor Unit
(f) JUSP-RA14 Regenerative Resistor Unit
348
45
259
200
49
7.5
59
485 500
29 34
B1 B2
Units: mm
Approx. mass: 14 kg
Power line insertion hole
(φ33, with rubber bushing)
M5 main circuit terminals
4 × M5 mounting holes
37
348
37
45
29
231
242
425
484
7.5
79
485
500
B1B2
Units: mm
Approx. mass: 20 kg
Power line insertion hole
(φ33, with rubber bushing)
M5 main circuit terminals
4 × M5 mounting holes
