YASKAWA E7 Drive User Manual

Electrical Installation 2 - 21

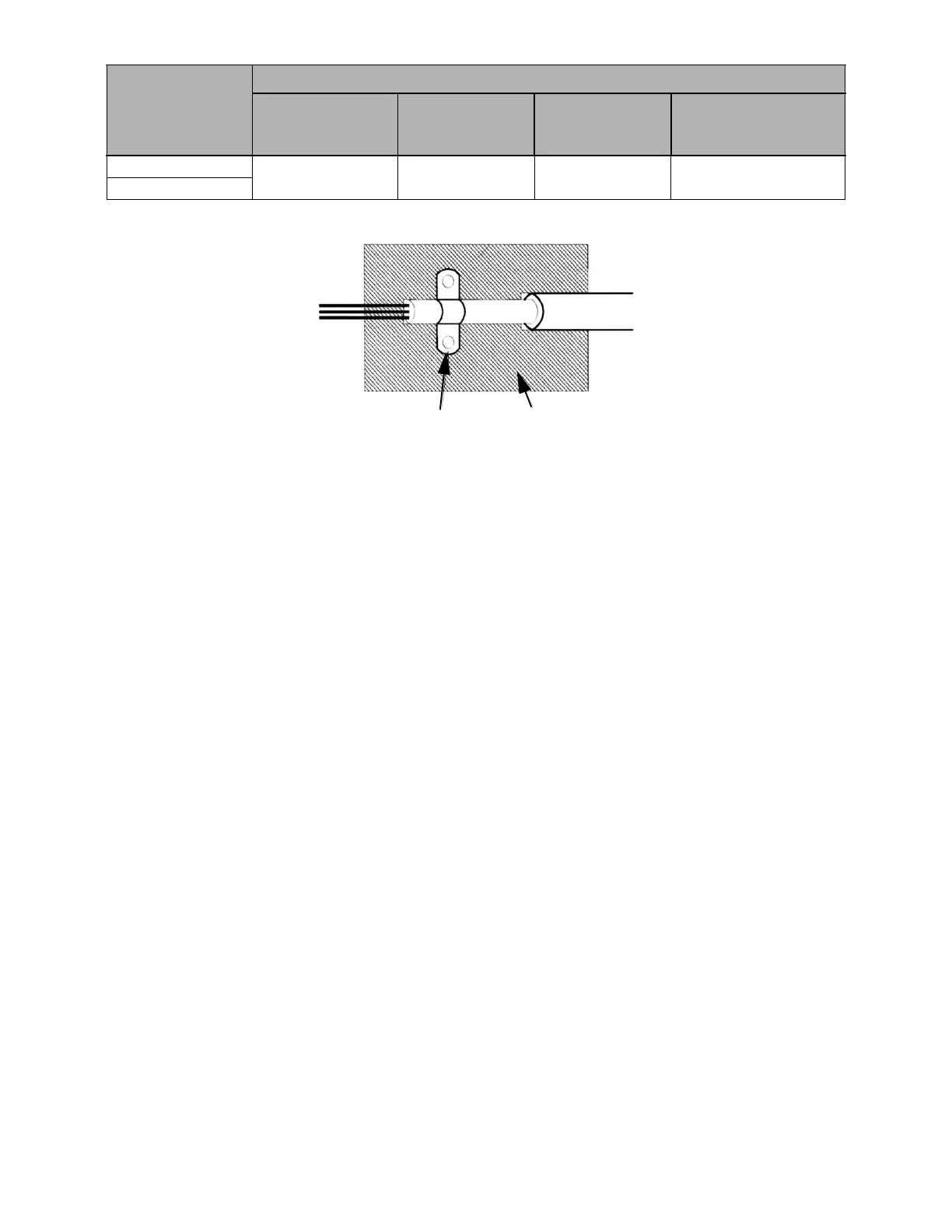

Fig 2.10 Grounding Surface Layout
The grounding surfaces must be highly conductive bare metal. Remove any varnish or paint from grounding surfaces.
• Ground the cable shields at both ends.
• Ground the motor of the machine/application.
4090
FS5972-250-37 250 A
24.25
(11)
5.125 x 24 x 9.4375
(130 x 610 x 240)
4110
Drive Model
CIMR-E7U
EMC Filter
Model Number Current Rating
Weight
lb.
(kg)
Dimensions
inches
(mm)
Ground clip Ground plate
