YASKAWA GA800 Series Technical Reference

4.6 Keypad Operation
162 YASKAWA SIEPC71061737B GA800 Drive Technical Reference

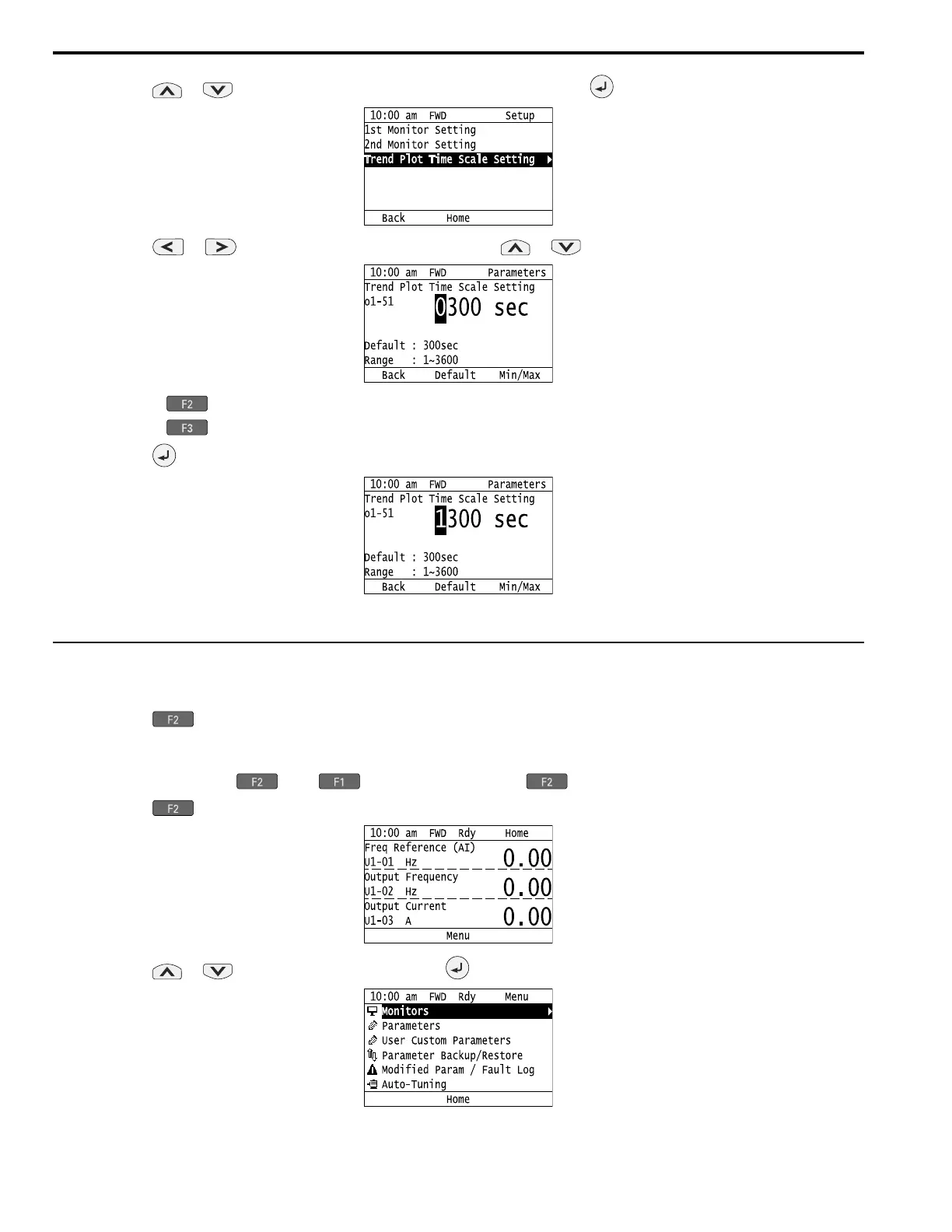

5. Push or to select [Trend Plot Time Scale Setting], then push .
6. Push or to select the specified digit, then push or to select the correct number.
• Push (Default) to set the parameters to the factory default.
• Push (Min/Max) to move between the minimum value and maximum value.
7. Push to keep the changes.
The configuration procedure is complete.
◆ Show Monitor Items as a Trend Plot
The procedure in this section shows how to show the selected monitor data as a trend plot.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .

YASKAWA GA800 Series Specifications

General

Series	GA800
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication	Ethernet/IP, Modbus RTU/TCP, PROFIBUS, PROFINET, DeviceNet
Safety	STO (Safe Torque Off)
Enclosure	IP00, IP20, IP55
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Ground Fault, Short Circuit
Enclosure Rating	IP00, IP20, IP55
Voltage Class	200V, 400V
