10.8 Drive Exterior and Mounting Dimensions
YASKAWA SIEPC71061737B GA800 Drive Technical Reference 453
◆ IP20/UL Open Type
■ 2004 to 2042, 4002 to 4023

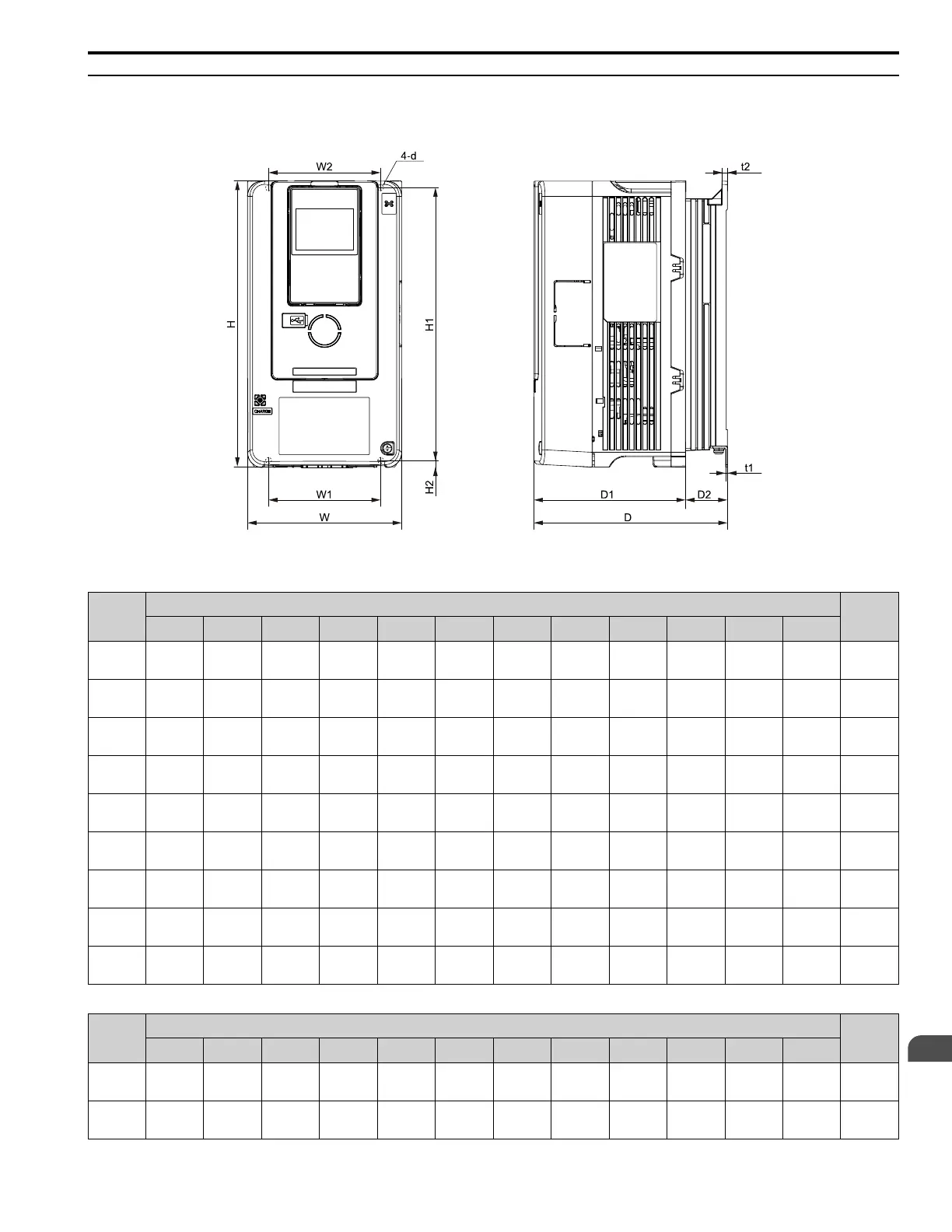

Figure 10.2 Exterior and Mounting Dimensions Diagram 1
Table 10.25 200 V Class (IP20)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2 H1 H2 t1 t2 d
2004
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)
2006
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)
2008
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)
2010
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)
2012
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)
2018
140
(5.51)
260
(10.24)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.9
(8.60)
2021
140
(5.51)
260
(10.24)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.9
(8.60)
2030
140
(5.51)
260
(10.24)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
4.2
(9.26)
2042
140
(5.51)
260
(10.24)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
4.2
(9.26)
Table 10.26 400 V Class (IP20)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2 H1 H2 t1 t2 d
4002
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)
4004
140
(5.51)
260
(10.24)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
248
(9.76)
6
(0.24)
1.6
(0.06)
5
(0.20)
M5
3.5
(7.72)

YASKAWA GA800 Series Specifications

General

Series	GA800
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication	Ethernet/IP, Modbus RTU/TCP, PROFIBUS, PROFINET, DeviceNet
Safety	STO (Safe Torque Off)
Enclosure	IP00, IP20, IP55
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Ground Fault, Short Circuit
Enclosure Rating	IP00, IP20, IP55
Voltage Class	200V, 400V
