3.5 Bypass PCB Control Circuit
52 YASKAWA TOEPYAIH6B01A HV600 AC Drive Narrow Bypass Installation & Startup
Note:
• Refer to Figure 3.10 for information to prepare terminal ends of the shielded wire.
• Prepare the wire ends of shielded twisted-pair wires as shown in Figure 3.10 to use an analog reference from an external
frequency setting potentiometer to set the frequency. Connect the shield to TB2-11 or TB2-12 on the bypass control board or
terminal FE on the drive.
A - Connect the shield to TB2-11 or TB2-12.
B - Sheath
C - Insulate with electrical tape or shrink tubing.

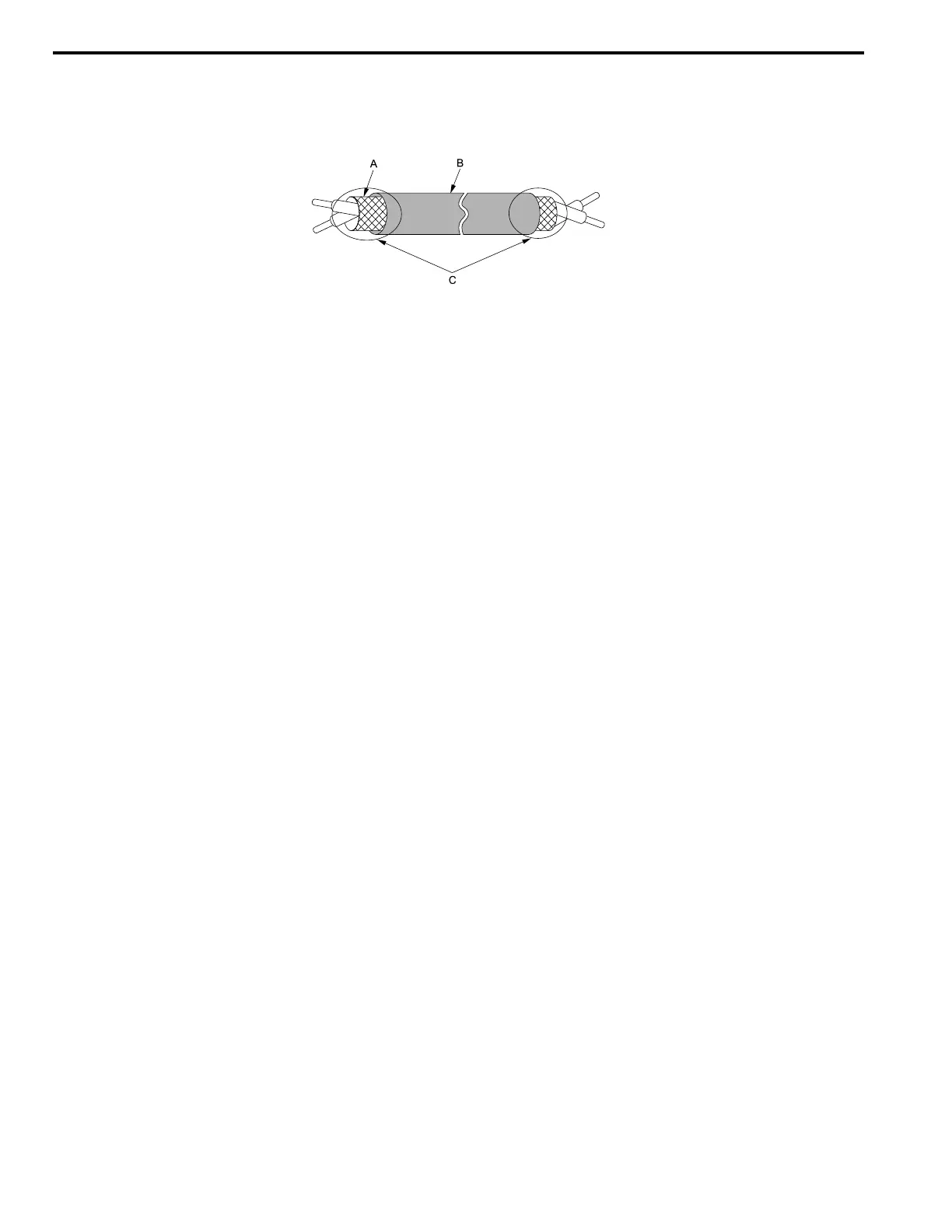

Figure 3.10 Prepare the Ends of Shielded Wire
2. Install the front cover to its initial position.
