YASKAWA SGD7S-****20A Series - I;O Signal Wiring Examples

4.5 I/O Signal Connections
4.5.3 I/O Signal Wiring Examples
4
Wiring and Connecting SERVOPACKs
4-37

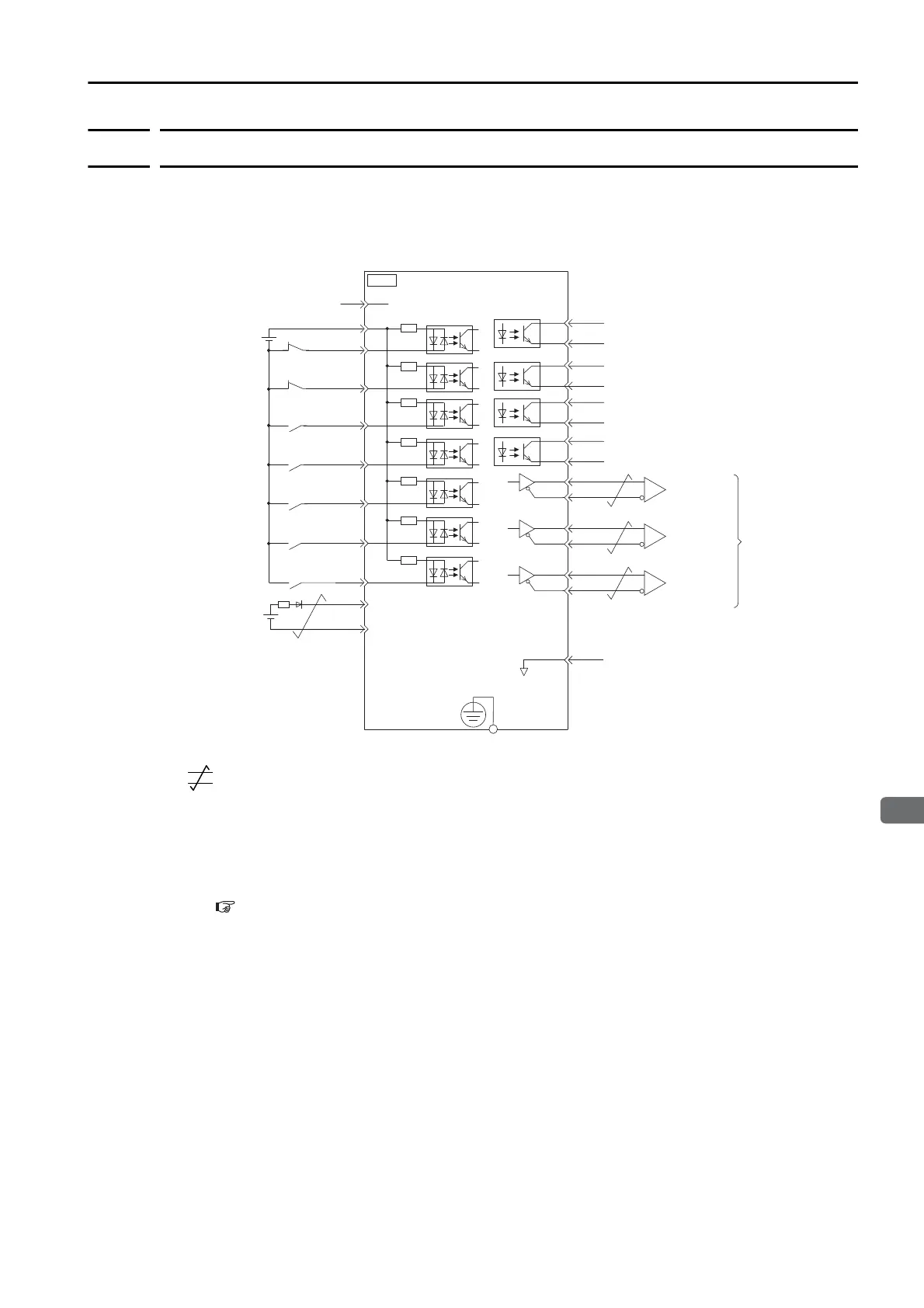

4.5.3 I/O Signal Wiring Examples
Using a Rotary Servomotor
*1. represents twisted-pair wires.
*2. Connect these when using an absolute encoder. If the Encoder Cable with a Battery Case is connected, do not
connect a backup battery.
*3. The 24-VDC power supply is not provided by Yaskawa. Use a 24-VDC power supply with double insulation or
reinforced insulation.
*4. Always use line receivers to receive the output signals.
Note: 1. You can use parameters to change the functions allocated to the /DEC, P-OT, N-OT, /EXT1, /EXT2, and
/EXT3 input signals and the /SO1, /SO2, and /SO3 output signals. Refer to the following section for details.
6.1 I/O Signal Allocations on page 6-4
2. If you use a 24-V brake, install a separate power supply for the 24-VDC power supply from other power
supplies, such as the one for the I/O signals of the CN1 connector.
If the power supply is shared, the I/O signals may malfunction.
/BK+
/BK-
/SO2+
/SO2-
/SO3+
ALM+
ALM-
1
2
23
24
3
4
+24VIN
+24 V *3
4.7 k
Ω
6
8
10
9
11
12
/SI0
P-OT
N-OT
/DEC
/EXT1
/EXT2
/EXT3
BAT+
BAT-
13
14
15
7
/SO3-
Forward Drive Prohibit input
(prohibited when OFF)
Sequence input signal
power supply input
External Latch Input 1
(latch when ON)
Origin Return Deceleration
Switch input
(LS active when ON)
External Latch Input 2
(latch when ON)
External Latch Input 3
(latch when ON)
Battery for
absolute encoder
*2
2.8 V to 4.5 V
Reverse Drive Prohibit input
(prohibited when OFF)
Brake output
(released when ON)
Servo Alarm Output
(OFF for alarm)
25
26
16
SG
*1
PBO
PCO
/PBO
PAO
/PAO
/PCO
21
17
18
19
20
22
FG
CN1
*4
*4
*4
Photocoupler outputs
Max. allowable voltage: 30 VDC
Max. allowable current: 50 mA DC
Encoder Divided
Pulse Output,
Phase A
Encoder Divided
Pulse Output,
Phase B
Encoder Divided
Pulse Output,
Phase C
Applicable Line Receiver:
SN75ALS175 or MC3486
manufactured by Texas
Instruments or the equivalent
Connect shield to connector shell.
Connector
shell
SERVOPACK
Frame ground
Signal ground
+
-
General-purpose
sequence input 0
TH
5
Overheat
protection input
