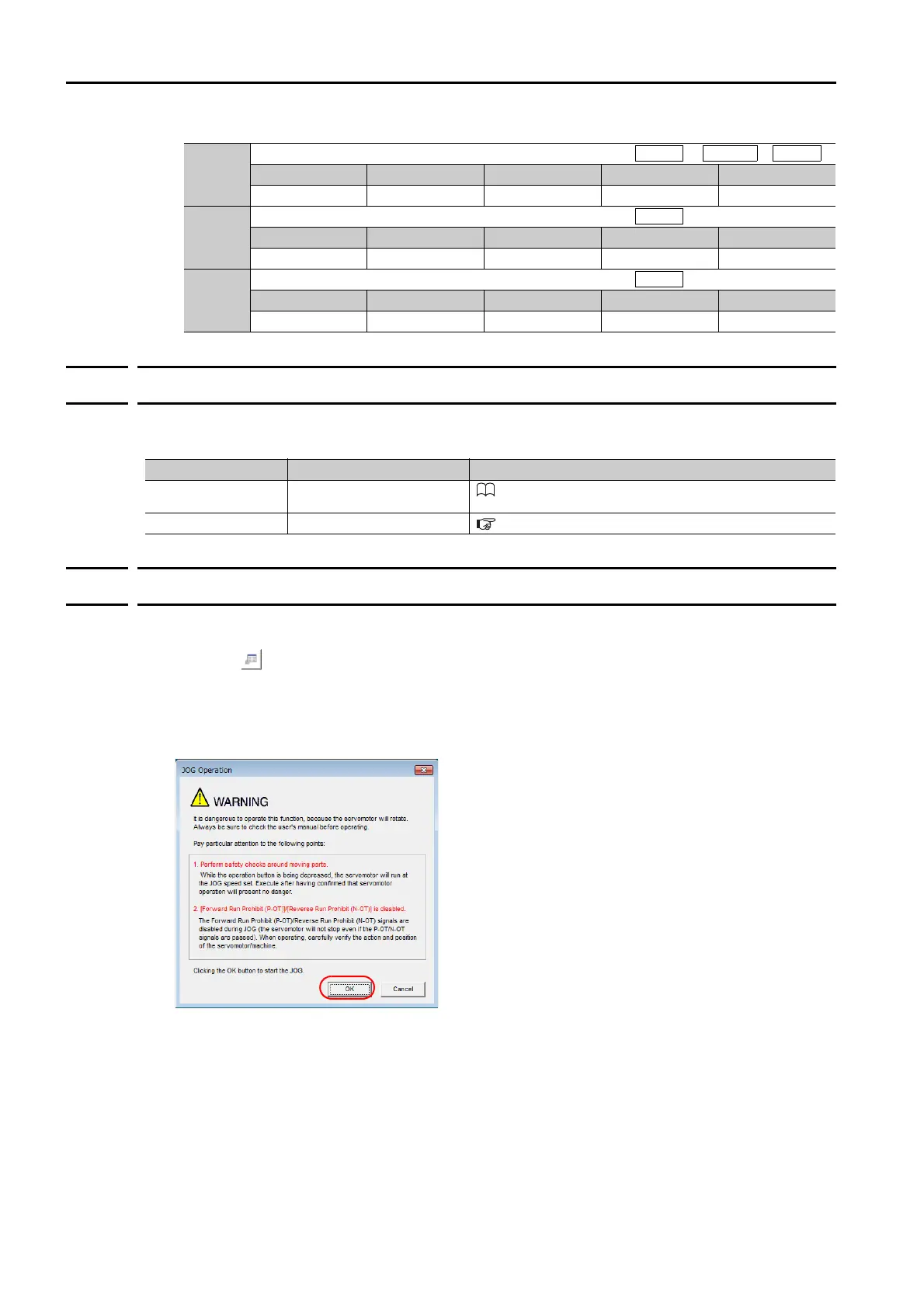

7.3 Trial Operation for the Servomotor without a Load
7.3.2 Applicable Tools
7-8
• Linear Servomotors
7.3.2
Applicable Tools
The following table lists the tools that you can use to perform jogging and the applicable tool
functions.
7.3.3
Operating Procedure
Use the following procedure to jog the motor.
1.
Click the Servo Drive Button in the workspace of the Main Window of the SigmaWin+.
2.
Select JOG Operation in the Menu Dialog Box.
The Jog Operation Dialog Box will be displayed.
3.
Read the warnings and then click the OK Button.
Pn383
Jogging Speed
Setting Range Setting Unit Default Setting When Enabled Classification
0 to 10,000 1 mm/s 50 Immediately Setup
Pn305
Soft Start Acceleration Time
Setting Range Setting Unit Default Setting When Enabled Classification
0 to 10,000 1 ms 0 Immediately Setup
Pn306
Soft Start Deceleration Time
Setting Range Setting Unit Default Setting When Enabled Classification
0 to 10,000 1 ms 0 Immediately Setup
Too l Function Operating Procedure Reference
Digital Operator Fn002
Σ-7-Series Digital Operator Operating Manual (Manual
No.: SIEP S800001 33)
SigmaWin+ Test Run - Jog
Operating Procedure on page 7-8
To Next Page
