2.3 External Dimensions
2.3.1 Front Cover Dimensions and Connector Specifications
2-18
2.3 External Dimensions
2.3.1 Front Cover Dimensions and Connector Specifications
The front cover dimensions and panel connector section are the same for all models. Refer to
the following figures and table.
•

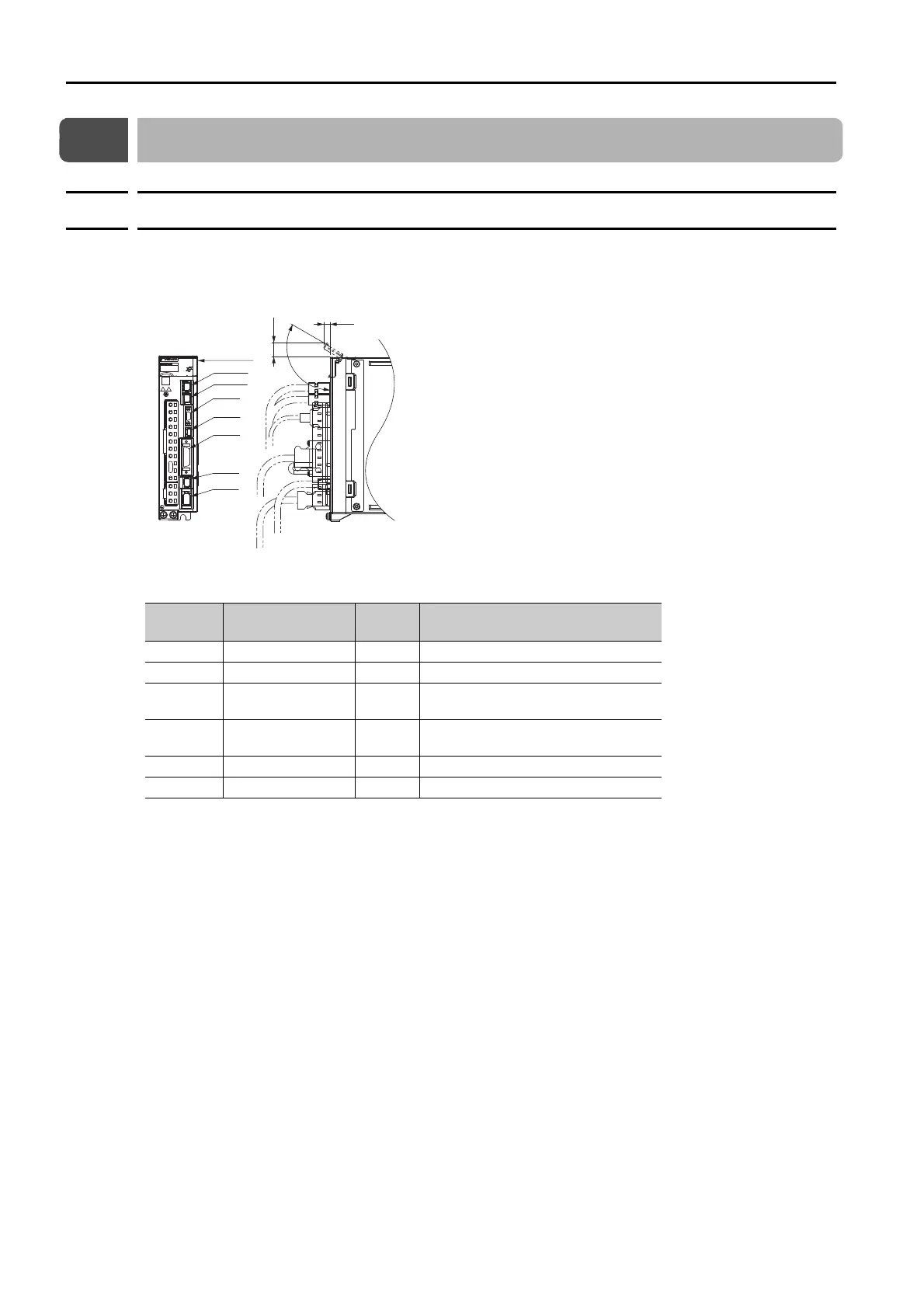

Front Cover Dimensions
•
Connector Specifications
Note: The above connectors or their equivalents are used for the SERVOPACKs.
Connec-
tor No.
Model
Number
of Pins
Manufacturer
CN1 10226-59A3MB 26 3M Japan Limited
CN2 3E106-0220KV 6 3M Japan Limited
CN3
HDR-EC14LFDTN-
SLD-PLUS
14 Honda Tsushin Kogyo Co., Ltd.
CN6A,
CN6B
1981386-1 8 Tyco Electronics Japan G.K.
CN7 2172034-1 5 Tyco Electronics Japan G.K.
CN8 1981080-1 8 Tyco Electronics Japan G.K.
CN3
CN7
CN1
CN8
CN2
CN6A
CN6B
Front
cover
(7)
(15)
(120°)
