5.12 Holding Brake
5.12.4 Output Timing of /BK (Brake) Signal When the Servomotor Is Operating
5-36

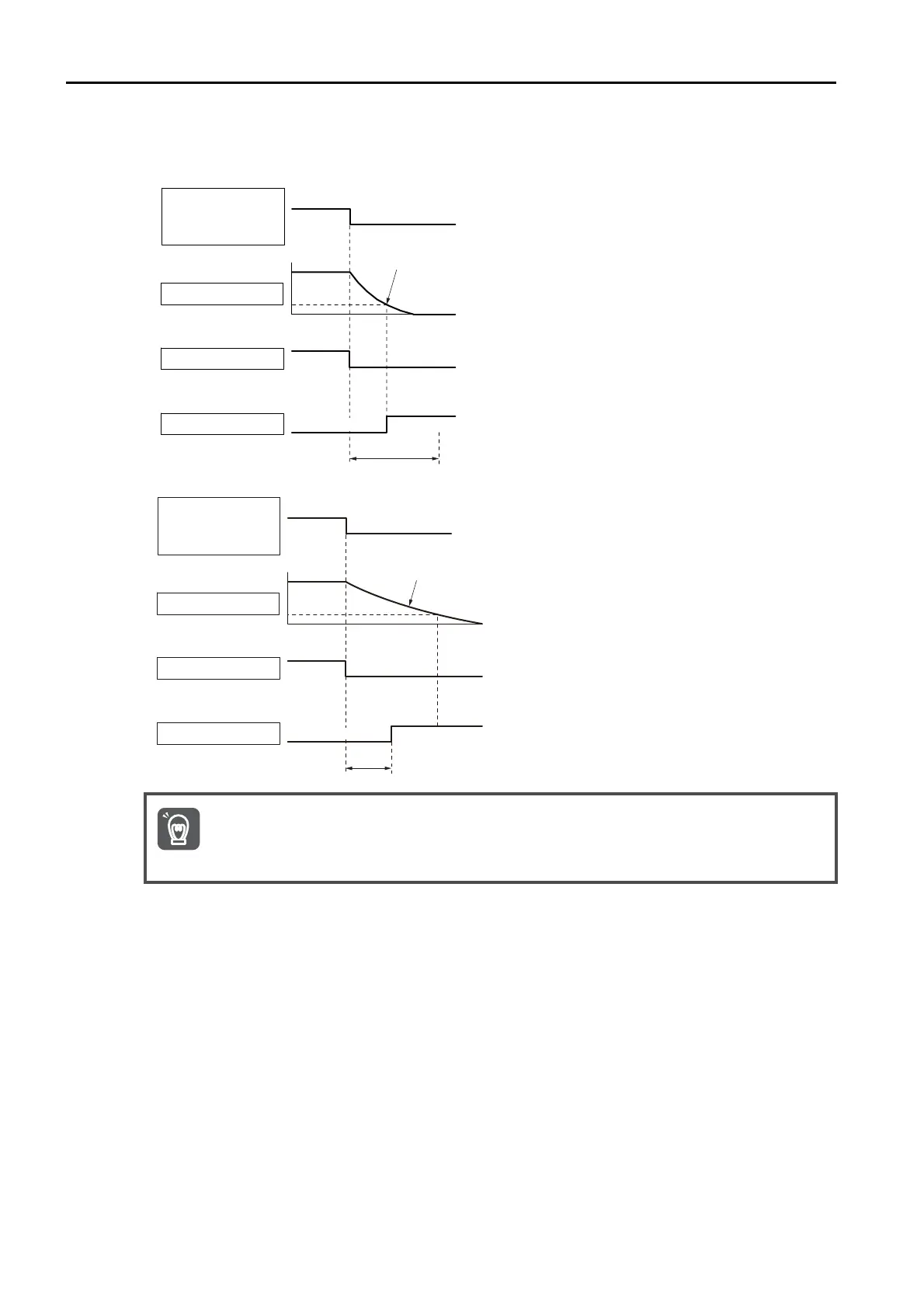

The brake operates when either of the following conditions is satisfied:
• When the Motor Speed Goes below the Level Set in Pn507 for a Rotary Servomotor or in
Pn583 for a Linear Servomotor after the Power Supply to the Motor Is Stopped
• When the Time Set In Pn508 Elapses after the Power Supply to the Motor Is Stopped
The Servomotor will be limited to its maximum speed even if the brake reference output speed
level (Rotary Servomotor: Pn507, Linear Servomotor: Pn583) is higher than the maximum speed.
Pn508


Motor speed
Motor power status
/BK signal
ON (Brake released.)
OFF (Brake applied.)
Power not
supplied.
Motor stopped with dynamic
brake or by coasting
(Pn001 = n.X)
Rotary Servomotor: Pn507
Linear Servomotor: Pn583
Servo ON
Servo OFF
Power
supplied.
SV_OFF (Servo OFF)
command input,
alarm, or power OFF


Servo ON
Servo OFF
Linear Servomotor: Pn583
Rotary Servomotor: Pn507
Motor stopped with dynamic
brake or by coasting
(Pn001 = n.X)
Power
supplied.
Power not supplied.
OFF (Brake applied.)
Motor speed
Motor power status
/BK signal
SV_OFF (Servo OFF)
command input,
alarm, or power OFF
Pn508
ON (Brake released.)
Important
