7.1 Flow of Trial Operation
7.1.2 Flow of Trial Operation for Linear Servomotors
7
Trial Operation and Actual Operation
7-5

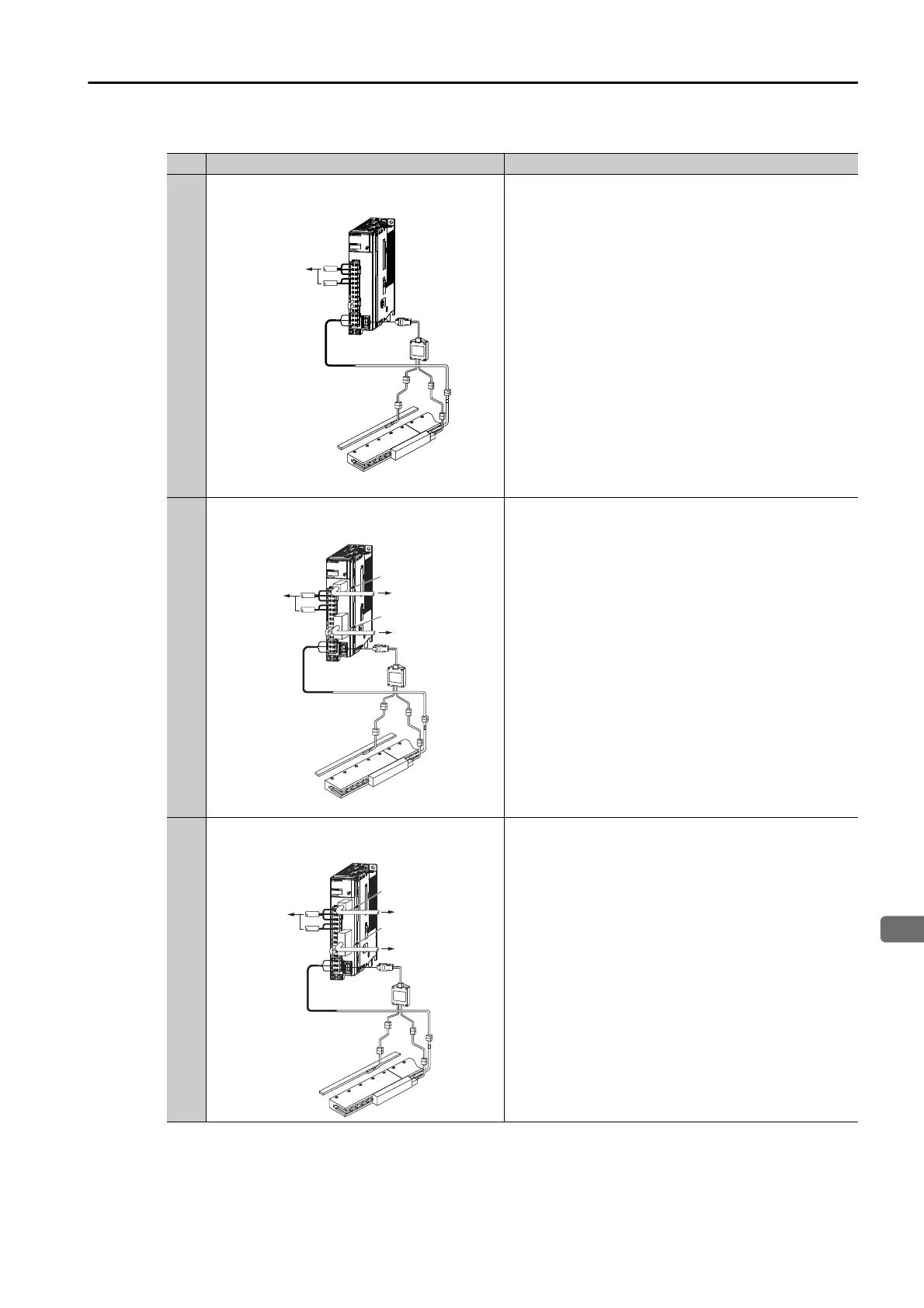

• Trial Operation
Step
Meaning Reference
1
Trial Operation for the Servomotor without a
Load
7.3 Trial Operation for the Servomotor without a Load on
page 7-7
2
Trial Operation with MECHATROLINK-III
Communications
7.4 Trial Operation with MECHATROLINK-III Communica-
tions on page 7-10
3
Trial Operation with the Servomotor Con-
nected to the Machine
7.5 Trial Operation with the Servomotor Connected to the
Machine on page 7-12
To power
supply
CN1
To host controller
CN6A and CN6B
To host controller
To power
supply
CN1
To host controller
CN6A and CN6B
To host controller
To Next Page
