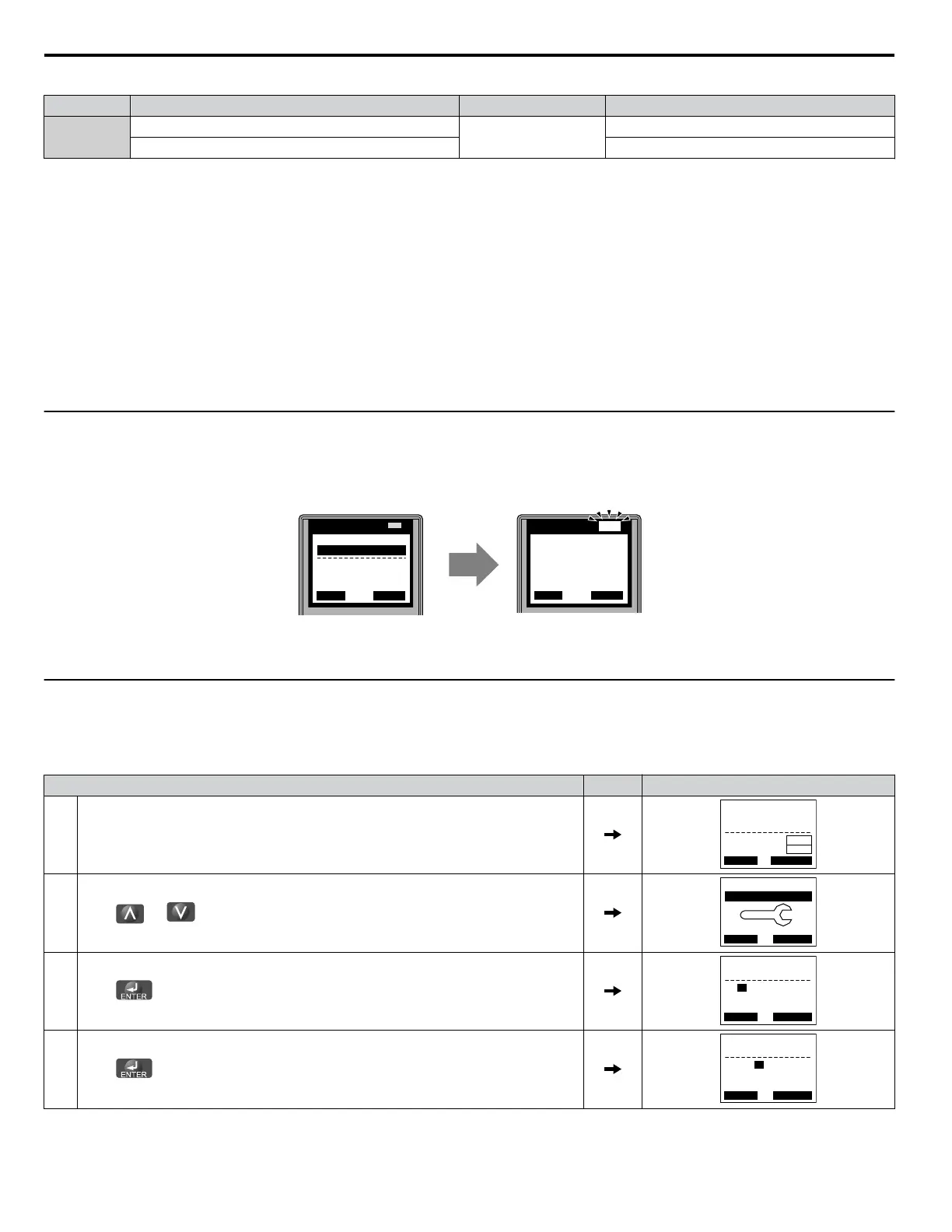

YASKAWA Z1000 Technical Manual

Table 4.15 Auto-Tuning Input Data
Motor Type Auto-Tuning Type Digital Input Digital Output
Induction
Motor
Stationary Auto-Tuning for Line-to-Line Resistance
Digital input functions
are disabled.
Maintains the status at the start of Auto-Tuning
Rotational Auto-Tuning for V/f Control Functions the same as during normal operation
n
Notes on Stationary Auto-Tuning
Stationary Auto-Tuning modes analyze motor characteristics by injecting current into the motor for approximately one minute.
WARNING! Electrical Shock Hazard. When executing stationary Auto-Tuning, voltage is applied to the motor before the motor rotates. Do
not touch the motor until Auto-Tuning is completed. Failure to comply may result in injury or death from electrical shock.
WARNING! Sudden Movement Hazard. If installed, do not release the mechanical brake during Stationary Auto-Tuning. Inadvertent brake
release may cause damage to equipment or injury to personnel. Ensure that the mechanical brake release circuit is not controlled by the
drive multi-function digital outputs.
Stationary Auto-Tuning for Line-to-Line Resistance
• Perform when entering motor data manually while using motor cables longer than 50 m.
• If the motor cables have been replaced with cables more than 50 m long after Auto-Tuning has already been performed, use
Stationary Auto-Tuning for line-to-line resistance.
u
Auto-Tuning Interruption and Fault Codes
If tuning results are abnormal or the OFF key is pressed before completion, Auto-Tuning will be interrupted and a fault code
will appear on the HOA keypad.
B
LO
RE
ESC
RUN STOP
ENTERRESET
DIGITAL OPERATOR JVOP-180
A
LO
RE
ESC
RUN STOP
ENTERRESET
DIGITAL OPERATOR JVOP-180
ALM
ALM
DRV-OFF
X.XX Hz/ X.XXA
Tune Proceeding
<<<<<< >>>>>>
DRV-OFF
Er-03
STOP key
RESET
A – During Auto-Tuning
B – Auto-Tuning Aborted
Figure 4.12 Auto-Tuning Aborted Display
u
Auto-Tuning Operation Example
The following example demonstrates Rotational Auto-Tuning for V/f.
n
Selecting the Type of Auto-Tuning
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
DRV-OFF
U1-01= 60.00Hz
U1-02= 0.00Hz
U1-03= 0.00 A
Freq Ref (AUTO)
LSEQ
LREF
RLY
DRV/BYP
2.
Press or until the Auto-Tuning display appears.
DRV-OFF
Auto-Tuning
DATAHELP
Auto
3.
Press to begin setting parameters.
DRV-OFF
T1-01= 2 *2*
Line-to-Line
Tuning Mode Sel
DATAESC
4.
Press to display the value for T1-01.
DRV-OFF
T1-01= 2 *2*
Line-to-Line
Tuning Mode Sel
DATAESC
“0”
4.7 Auto-Tuning
112
YASKAWA ELECTRIC SIEP YAIZ1B 01E YASKAWA AC Drive – Z1000 Bypass Technical Manual
