Yealink SIP-T52S Administrator's Guide

Configuring Advanced Features
691
3. Enter the label in the Label field.
The label will appear on the LCD screen when sending the RTP multicast.
4. Select the desired channel from the pull-down list Channel.
5. Click Confirm to accept the change.

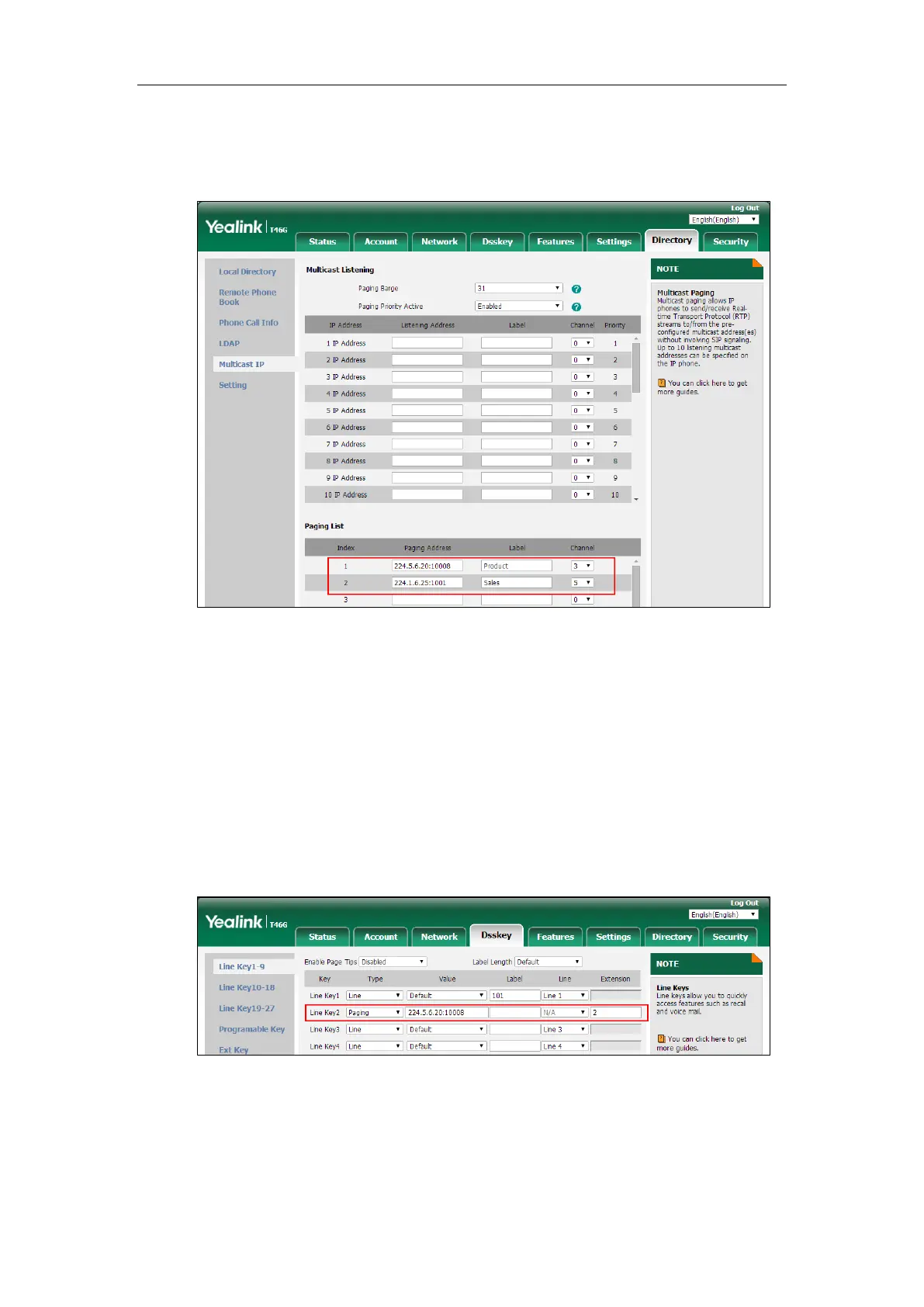

To configure a multicast paging key via web user interface:
1. Click on Dsskey->Line Key (or Programable Key).
2. In the desired DSS key field, select Paging from the pull-down list of Type.
3. Enter the multicast IP address and port number in the Value field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
4. (Optional.) Enter the string that will appear on the LCD screen in the Label field.
5. Enter the desired channel in the Extension field.
The valid channel ranges from 0 to 30.
6. Click Confirm to accept the change.
To configure a paging list key via web user interface:
1. Click on Dsskey->Line Key (or Programable Key).
2. In the desired DSS key field, select Paging List from the pull-down list of Type.

Yealink SIP-T52S Specifications

General

Touchscreen	-
Display diagonal	2.8 \
Backlight display	Yes
Display resolution	320 x 240 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
Bluetooth version	2.1+EDR
Security algorithms	802.1x RADIUS, HTTPS, MD5
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.722, G.723, G.723.1, G.726, OPUS, iLBC
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Front camera	No
Operating system installed	Linux

Weight and Dimensions

Depth	212 mm
Width	211.6 mm
Height	166.8 mm
