MyPBX Standard Administrator Guide
4
MyPBX Standard Rear Panel

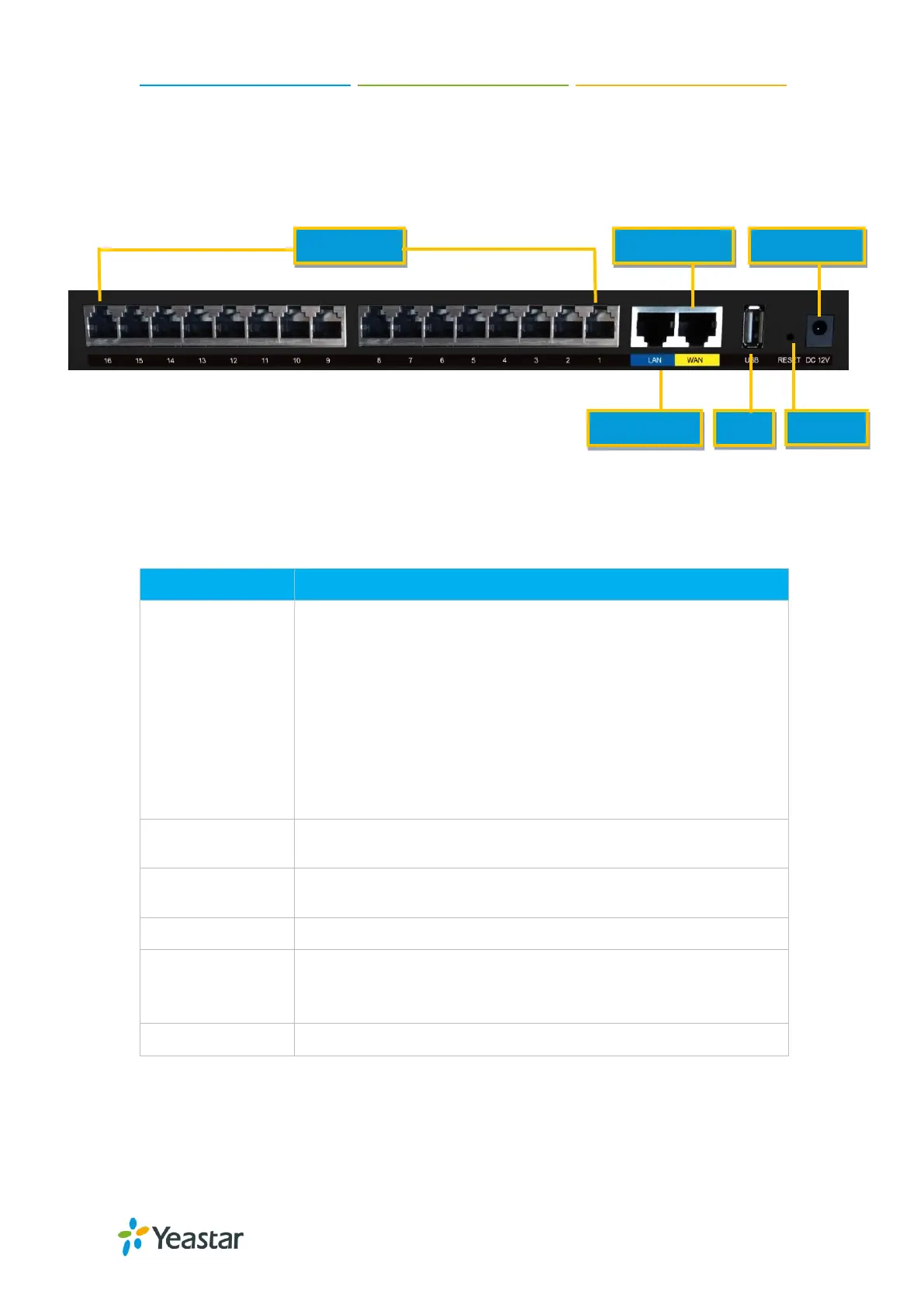

Figure 1-2 MyPBX Standard Rear Panel
Table 1-2 MyPBX Standard Rear Panels–Port Description
FXO port(red light): For the connection of PSTN lines or FXS
ports of traditional PBX. MyPBX.
FXS port (green light): For the connection of analog phones.
BRI port(orange light): For the connection of ISDN BRI lines.
Note:the sequence number of the ports corresponds to that of the
Indicator lights in the front panel. (I.e. the LED lights in the front
indicate the connection status of the corresponding ports at the
front panel.)
10/100 Base-TX, connect one end of an RJ-45 Ethernet cable into
the WAN port, for the connection to internet.
10/100 Base-TX, connect one end of an RJ-45 Ethernet cable into
the LAN port, for the connection to Local Area Network
Press the reset button to restore the factory defaults.
Note: please make sure that you want to reset, because once
reset the previous configurations would be erased automatically.
For connection of power supply.
