5-8
IM DL850E-03EN
Output Signal
NOGO OUT (Negative logic)
When the determination result is NO-GO (fail), the output signal level temporarily changes from high
(H) to low (L).
GO OUT (Negative logic)
When the determination result is GO, the output signal level temporarily changes from high (H) to
low (L).

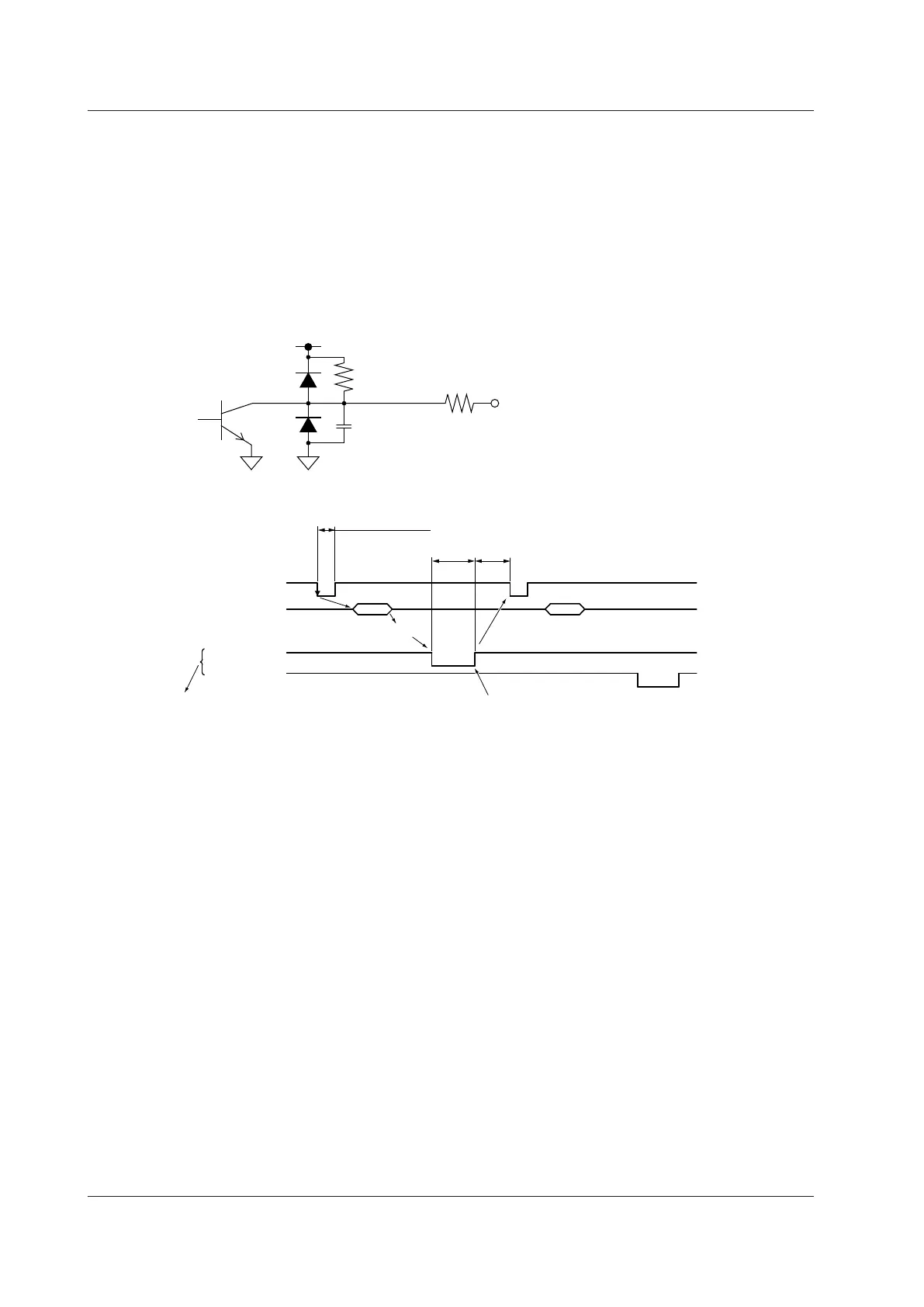

Signal Output Circuit
GO OUT
NO-GO OUT
5 V
120 Ω
4.7 kΩ
100 pF
GO/NO-GO I/O Timing
START IN
Acquisition Acquisition
Judgment
Result
Judgment
Result
NOGO OUT
GO OUT
100 ms or more
50 ms
or more
0 ms
or more
START IN is not referenced when Remote is
set to OFF; GO OUT and NO-GO OUT are
output according to internal GO/NO-GO
determination.
The signal remains low until the DL850E/DL850EV
is ready to accept the next measurement.
The duration is longer during output to a built-in
printer or internal storage medium.
5.5 GO/NO-GO Determination I/O and External Start/Stop Input (EXT I/O)
