YOKOGAWA DL850E User Manual

1-9
IM DL850E-03EN

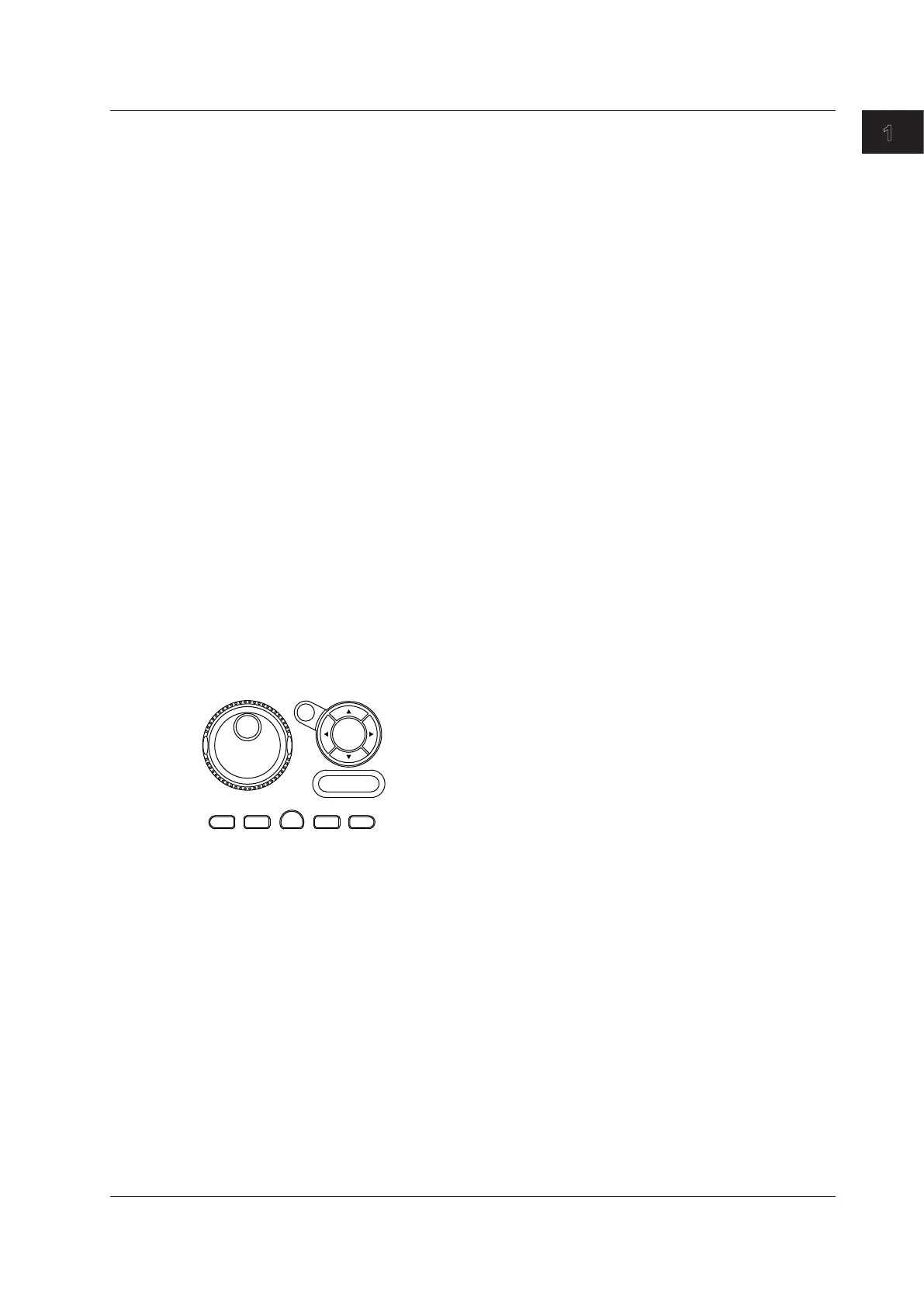

Names and Functions of Parts
1
2
3
4
5
6
App
Index
RESET Key
Resets the value to its default value.
SET Key
Press this key to select the menu item that you have moved the cursor to using the jog shuttle. You
can also press the SET key to start entering a value or characters.
Arrow Keys (▲▼►◄ keys)
Use the ►◄ keys to move the cursor between numeric digits. Use the ▲▼ keys to increment or
decrement the value of a digit. You can also use the ▲▼ keys to select setup items.
START/STOP Key
Starts and stops waveform acquisition according to the trigger mode. The key is illuminated while the
DL850E/DL850EV is acquiring waveforms.
(SHIFT+) SETUP Key
Displays a menu for initializing the settings to their factory defaults; performing auto setup, which
automatically sets the DL850E/DL850EV according to the input signal; storing and recalling setup
information; and so on. Press SHIFT and then SETUP to display a calibration menu.
(SHIFT+) DISPLAY Key
Use this key to configure the display. Press SHIFT and then DISPLAY to display an X-Y display menu.
(SHIFT+) SAVE Key
Press this key to save waveform or screen capture data to a storage medium. Press SHIFT and then
SAVE to display a menu for configuring the save operation.
FILE Key
Press this key to save or load data from a storage medium or to display a menu for file manipulation.
(SHIFT+) ACQUIRE Key
Displays a menu used to set the waveform acquisition mode. Press SHIFT and then ACQUIRE to
display a menu for configuring the dual capture feature.
RESET
SET
START / STOP
SETUP DISPLAY
FILE
ACQUIRE
CAL
X - Y
MENU
DUAL CAPTURE
SAVE
1.2 Panel Keys and Knobs
