YOKOGAWA DL850E User Manual

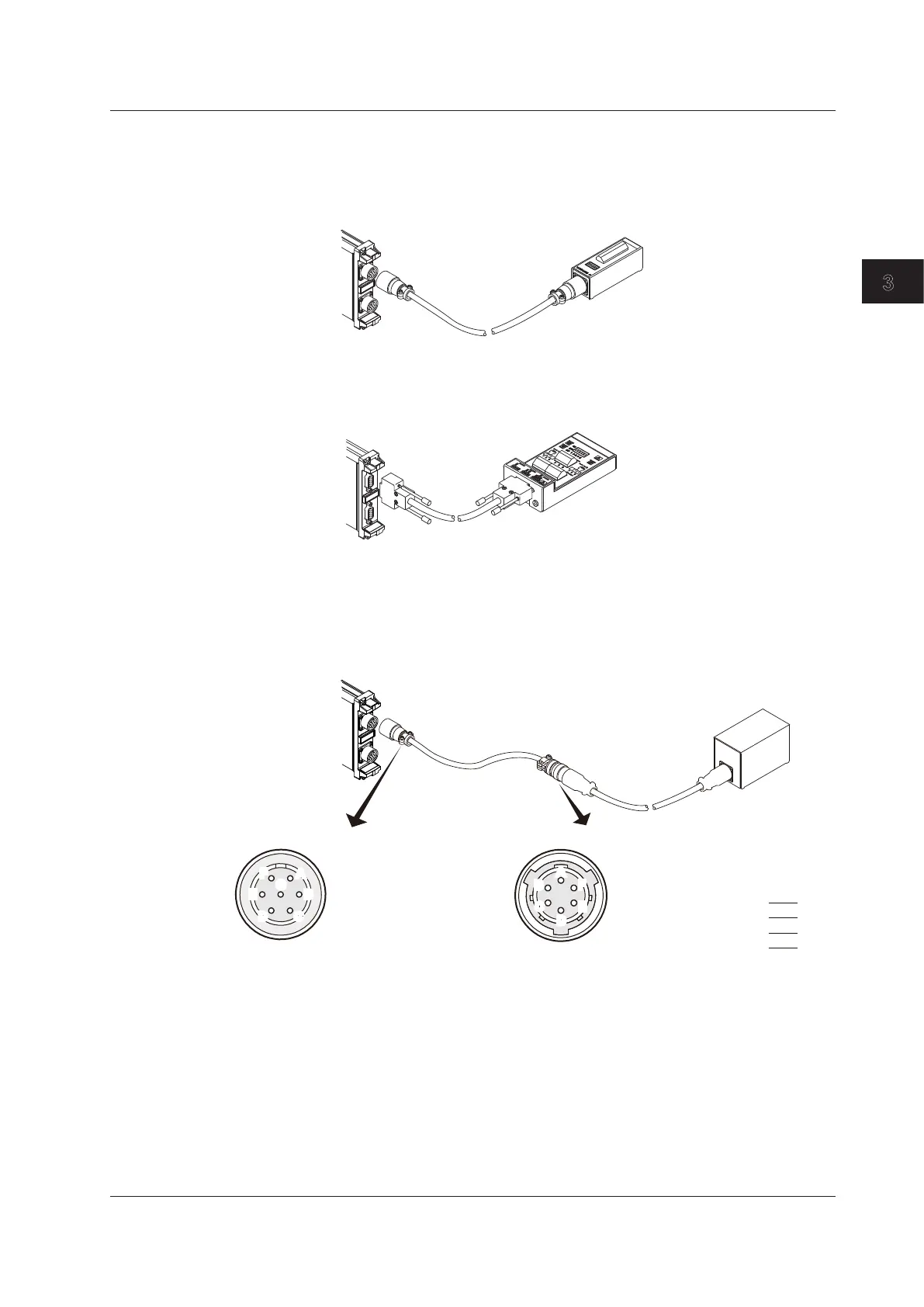

Connecting the Strain Module and the Bridge Head
When Using the Strain Module (701270) and the Bridge Head (701955 or 701956)
Using the cable that came with the bridge head (701955 or 701956), connect the Strain Module
(701270) and the bridge head.
Strain Module 701270
(STRAIN_NDIS)
Cable
Bridgehead
701955 or 701956
When Using the Strain Module (701271) and the Bridge Head (701957 or 701958)
Using the cable that came with the bridge head (701957 or 701958), connect the Strain Module
(701271) and the bridge head.
Cable
Bridgehead
701957 or 701958
Strain Module 701271
(STRAIN_DSUB)
When Using a Bridge Head with a MIL Standard (MIL-C-26482) Connector Wiring
The connector on the Strain Module (701270) is a NDIS connector.
*
Use a connector adapter
cable (700935) by YOKOGAWA to make a MIL-NDIS conversion and connect to the Strain Module
(701270).
* Connector recommended by JSNDI (Japanese Society for Non-Destructive Inspection)
Connector adapter cable
(700935) 1.5 m long
Bridgehead with MIL standard
connector wiring
A
B
C
D
C
NDIS MIL
B
D
A
NDIS connector pinout
MIL standard connector pinout
Corresponding
terminals
A: Signal+
B: Signal–
C: Excitation+
D: Excitation–
E: NC (no connection)
F: NC (no connection)
Strain Module 701270
(STRAIN_NDIS)
A: Bridge+ (positive bridge
voltage)
B: Input– (negative
measurement signal)
C: Bridge– (negative bridge
voltage)
D: Input+ (positive
measurement signal)
E: Floating common
F: Sense+ (positive bridge
voltage sensing)
G: Sense– (negative bridge
voltage sensing)
B
CD
E
F
G
A
B
CD
E
F
G
B
C
D
E
F
A
B
C
D
E
F
3.9 Connecting Bridgeheads
3-37
IM DL850E-03EN
Making Preparations for Measurements
1
2
3
4
5
6
App
Index
