<9. Advanced Engineering >
When creating a jump in program LogicA, jumping into LogicA1, LogicA2 or LogicA3
is allowed but jumping from LogicA into another program such as LogicB or LogicC
is not allowed.
Similarly, when creating a connector in program LogicA, connecting into LogicA1,
LogicA2 or LogicA3 is allowed but connecting from LogicA to another program is
not allowed.
If a return is created in LogicA1 of LogicA, LogicA2 and LogicA3, which are after the
Return in the execution order, will not be executed but other programs such as
LogicB and LogicC will be executed.
● How to Create Jumps, Connectors and Returns

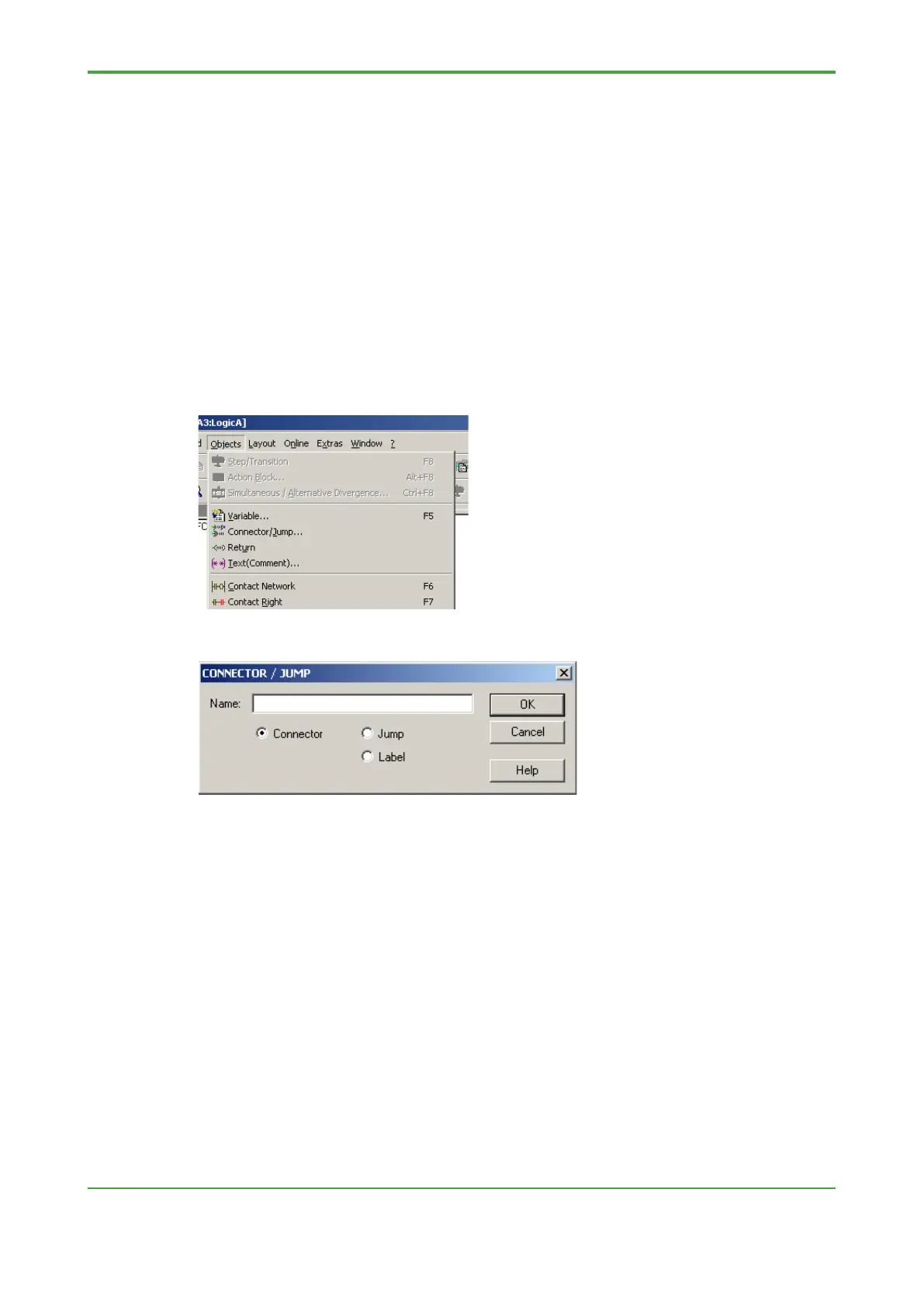

To create a jump, connector or return, select [Objects] from Logic Designer’s menu
bar, followed by [Connector/Jump] or [Return].
In the case of a jump or connector, the following dialog is displayed. Enter a name
for the connector or jump.
To Next Page
