Harmonic Measurement in Normal Measurement Mode (Option)
7
• Changing the Element
8.

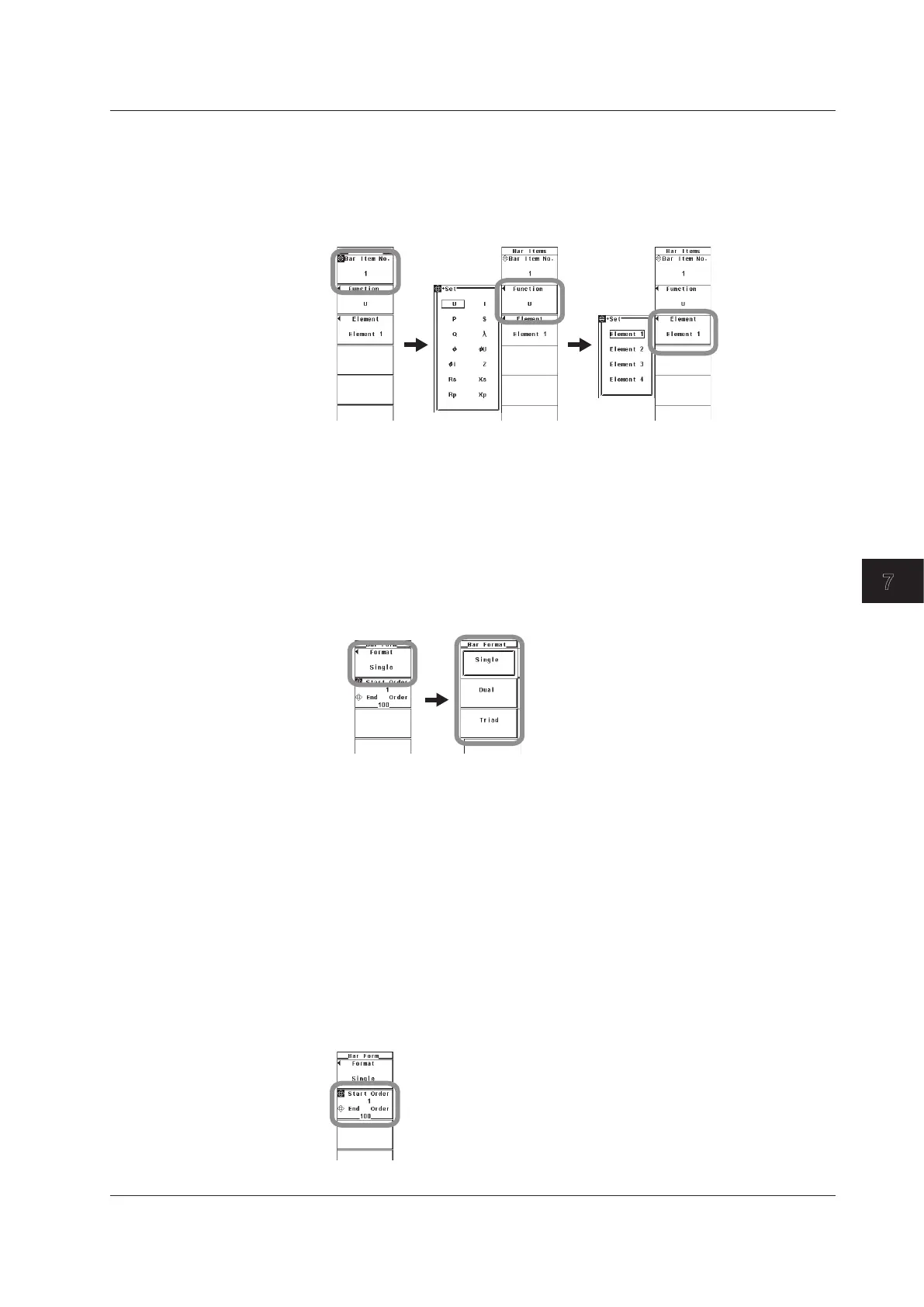

Press the Element soft key to display the element selection box.
9.
Press the cursor keys to select any of the elements/wiring units starting with
Element1.
10.
Press SET. The bar graph of the selected element number is displayed.
• Selecting the Number of Split Windows for the Bar Graph
11.
Press FORM to display the Bar Form menu.
If the bar graph is displayed at the lower section of the screen on the split display, press
SHIFT+FORM (LOWER FORM).
12.
Press the Format soft key to display the Bar Format menu.
13.
Press any of the keys from Single to Triad to select the number of windows.
• If Single is selected, the bar graph of Bar Item No. 1 is displayed.
• If Dual is selected, the bar graphs of Bar Item No. 1 and 2 are displayed.
• If Triad is selected, the bar graphs of Bar Item No. 1 to 3 are displayed.
• Setting the Display Range of the Bar Graph
(The difference between the start order and the end order must be greater than or
equal to 10.)
• Setting the Start Order
14.
Press the Start Order/End Order soft key to set the cursor key target to Start
Order.
15.
Press the cursor keys to set the start order of the bar graph.
• Setting the End Order
14.
Press the Start Order/End Order soft key to set the cursor key target to End
Order.
15.
Press the cursor keys to set the end order of the bar graph.
7.9 Displaying the Bar Graph and Making Cursor Measurements
