• Setting the Pulse Rating of the Torque Signal
Set the pulse rating of the torque sensor.
• Setting the Positive Rating
2.
Press the cursor keys to select Pulse Rated Upper under Torque.
3.

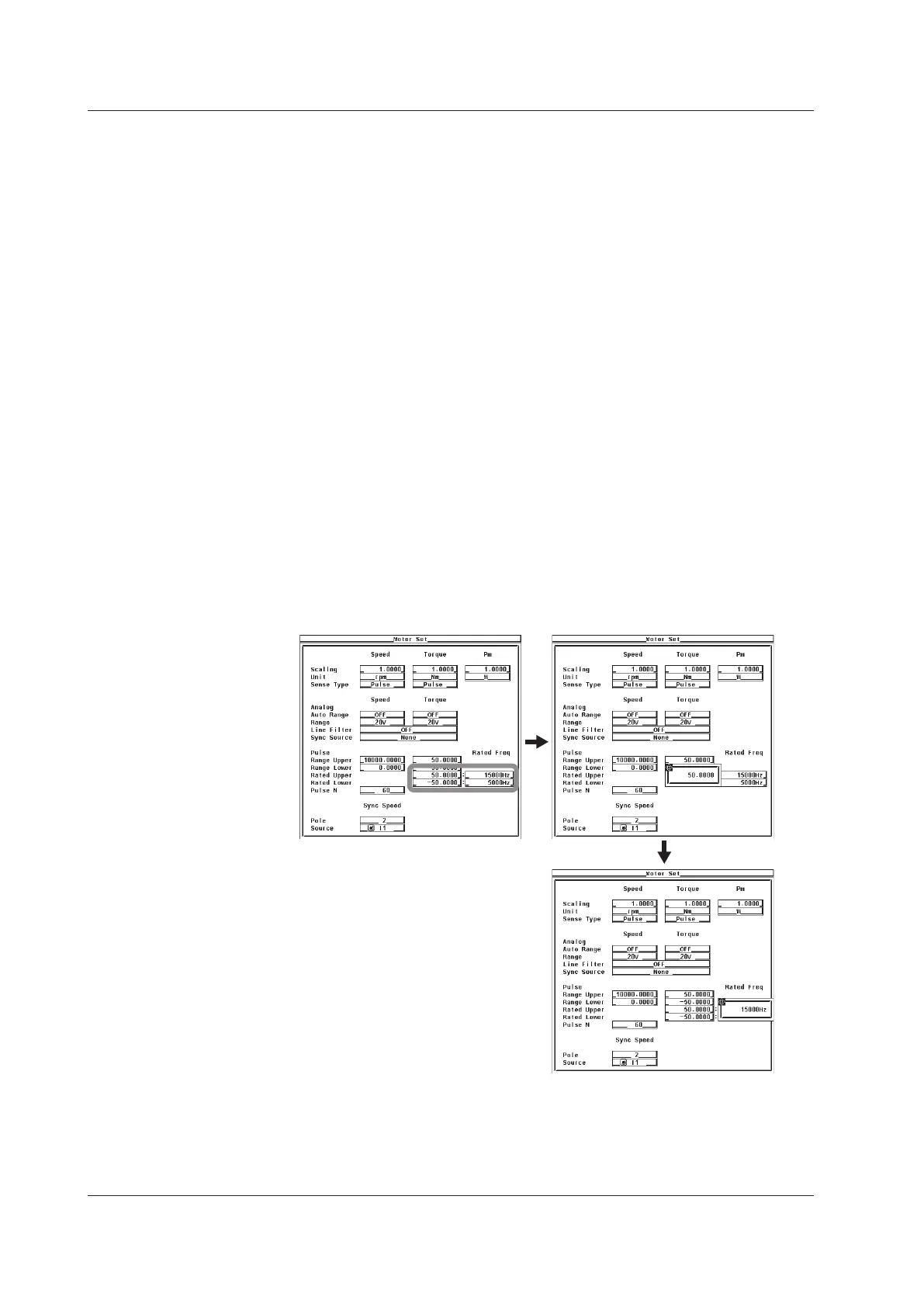

Press SET. A pulse rating (torque) entry box appears.
4.
Press the cursor keys to set the positive pulse rating (torque).
5.
Press SET or ESC to close the box.
6.
Press the cursor keys to select Rated Upper under Rated Freq under Torque.
7.
Press SET. A pulse rating (pulse frequency) entry box appears.
8.
Press the cursor keys to set the positive pulse rating (pulse frequency).
9.
Press SET or ESC to close the box.
• Setting the Negative Rating
2.
Press the cursor keys to select Pulse Rated Lower under Torque.
3.
Press SET. A pulse rating (torque) entry box appears.
4.
Press the cursor keys to set the negative pulse rating (torque).
5.
Press SET or ESC to close the box.
6.
Press the cursor keys to select Rated Lower under Rated Freq under Torque.
7.
Press SET. A pulse rating (pulse frequency) entry box appears.
8.
Press the cursor keys to set the positive pulse rating (pulse frequency).
9.
Press SET or ESC to close the box.
1.6 Setting the Pulse Range, Pulse Count, and Pulse Rating
