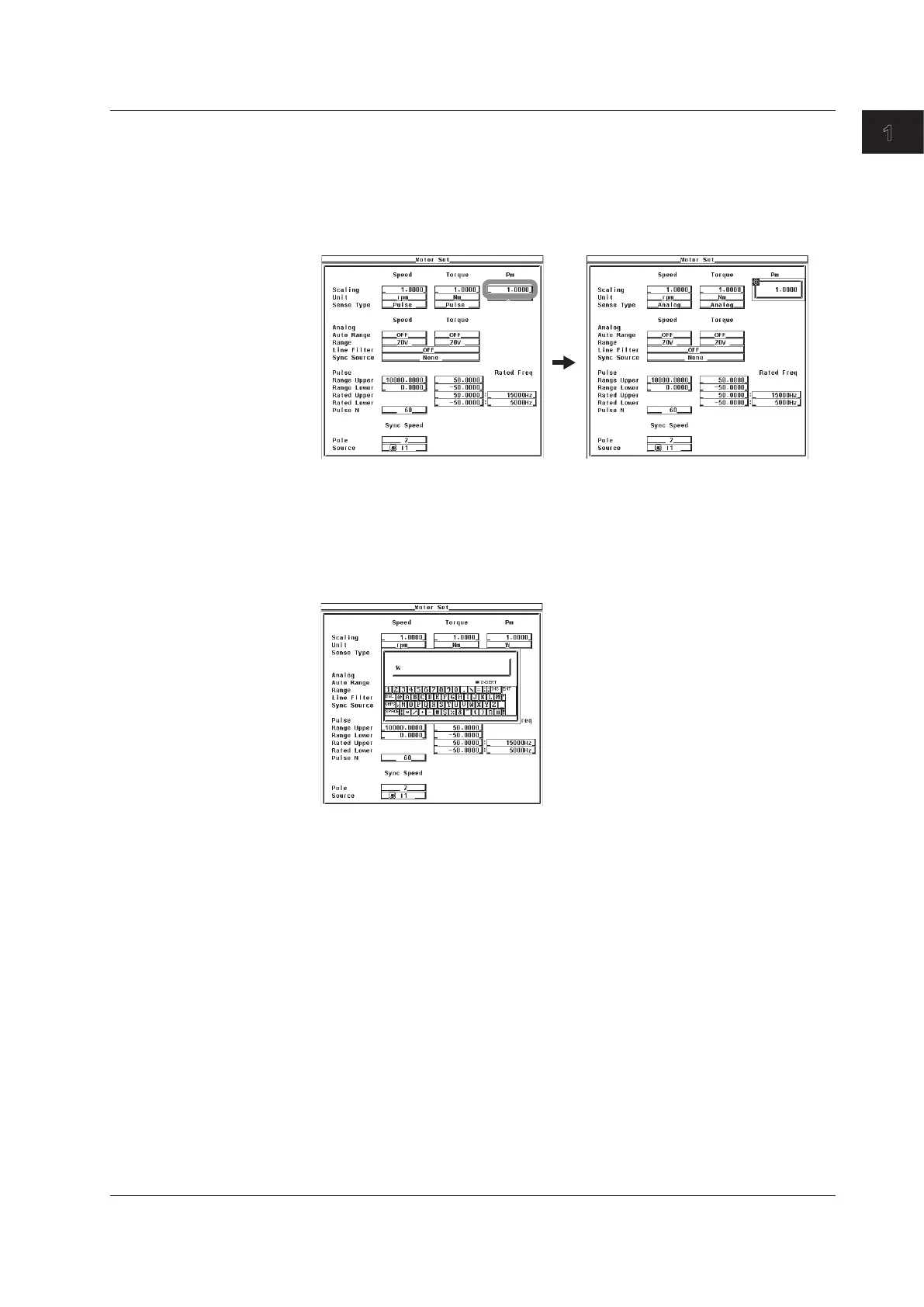

• Setting the Scaling Factor Used to Compute the Motor Output
2.
Press the cursor keys to select Scaling under Pm.
3.
Press SET. A scaling factor entry box appears.
4.
Press the cursor keys to set the scaling factor.
5.
Press SET or ESC to close the box.
• Setting the Unit of Motor Output
2.
Press the cursor keys to select Unit under Pm.
3.
Press SET. A keyboard appears.
4.
Use the keyboard to set the unit.
For keyboard operations, see section 3.14 in the User’s Manual IM WT3001E-01EN.
1.7 Setting the Scaling Factor and Unit
