D/A Output and Remote Control (Option)
3
Setting the Rated Time of Integrated D/A Output
13.
Press INTEG to display the Integ menu.
14.
Press the Integ Set soft key to display the Integ Set menu.
15.
Press the D/A Output Rated Time soft key to display the D/A Rated Time dialog
box.
16.
Press the cursor keys to select the hour, minute, or second box.
17.
Press SET. An entry box appears.
18.
Press the cursor keys to set the hour, minute, or second that you selected in step 16.
19.
Press SET or ESC to close the box.
20.
Repeat steps 16 to 19 to set the hour, minute, and second.

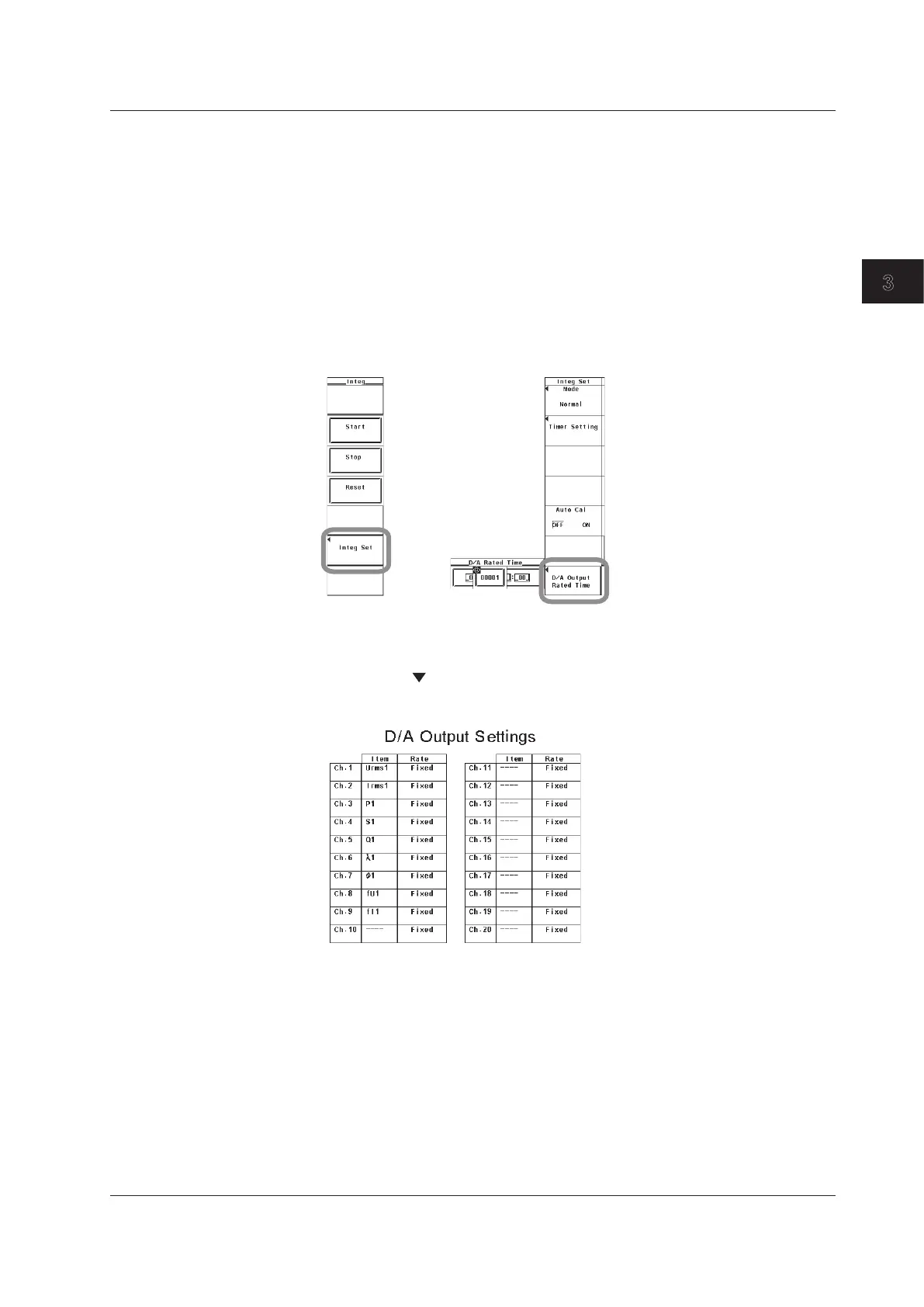

Checking the D/A Output Items
1.
Press SHIFT+WIRING(INPUT INFO.). Power Element Settings appears.
2.
Press PAGE to show DA Output Settings (a list of D/A output settings). The
relation table of D/A output channels and measurement functions is displayed.
3.2 Setting the D/A Output
