Getting Started
17

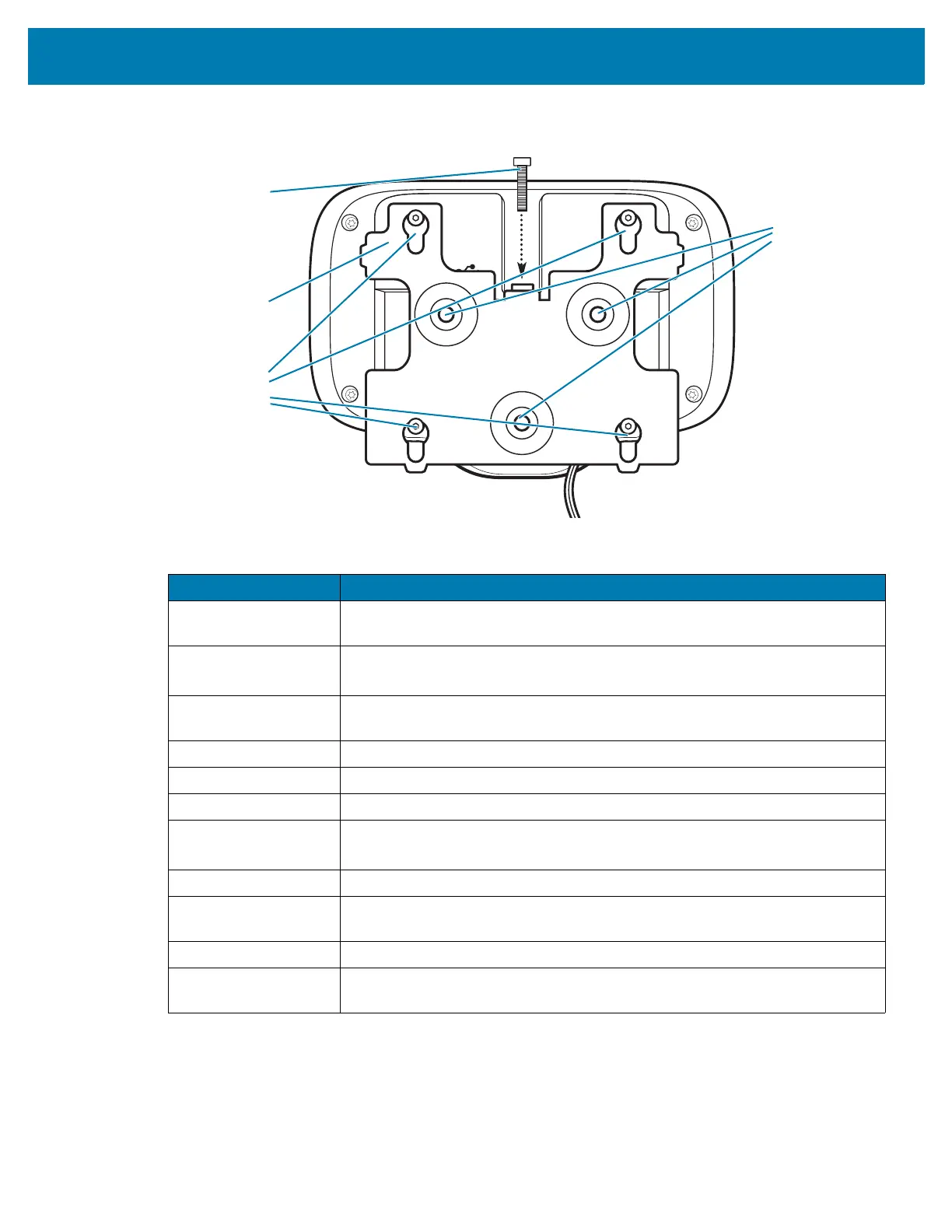

Figure 8 CC600 Back With Bracket View
Setting Up the Device
Perform this procedure to start using the device for the first time.
• Install a micro secure digital (SD) card (optional).
Table 3 Feature Descriptions
Item Function
Touch Screen and
Display
Displays all information needed to operate the device.
Exit Window
(Scanner)
Provides data capture using the imager and reads a barcode.
Note: To read a barcode, a scan-enabled app is required on the device.
Speaker Provides audio output for video and music playback. Provides audio in
speaker-phone mode.
NFC Antenna Reads NFC tags. (CC6000 Only)
Proximity Sensor Identifies the proximity of a user for turning up the display.
Microphone Use for communications in Speakerphone mode.
Front Facing Camera Captures still photos and videos.
Note: Select CC6000 devices only.
Interface Connectors See Figure 3 and Figure 7.
Volume Up/Down
Button
Increase and decrease audio volume (programmable).
External Display Designated for USB-C port utilization.
Reset button Press and hold to reset the device. See Resetting the Device on page 25 for
more information.
Mounting
Bracket
Mounting
Bracket Screw
Holders
Mounting
Bracket
Locking
Screw
Wall Mount
Screw
Holes
