Zebra CC600 Product Reference Guide

Data Capture
69

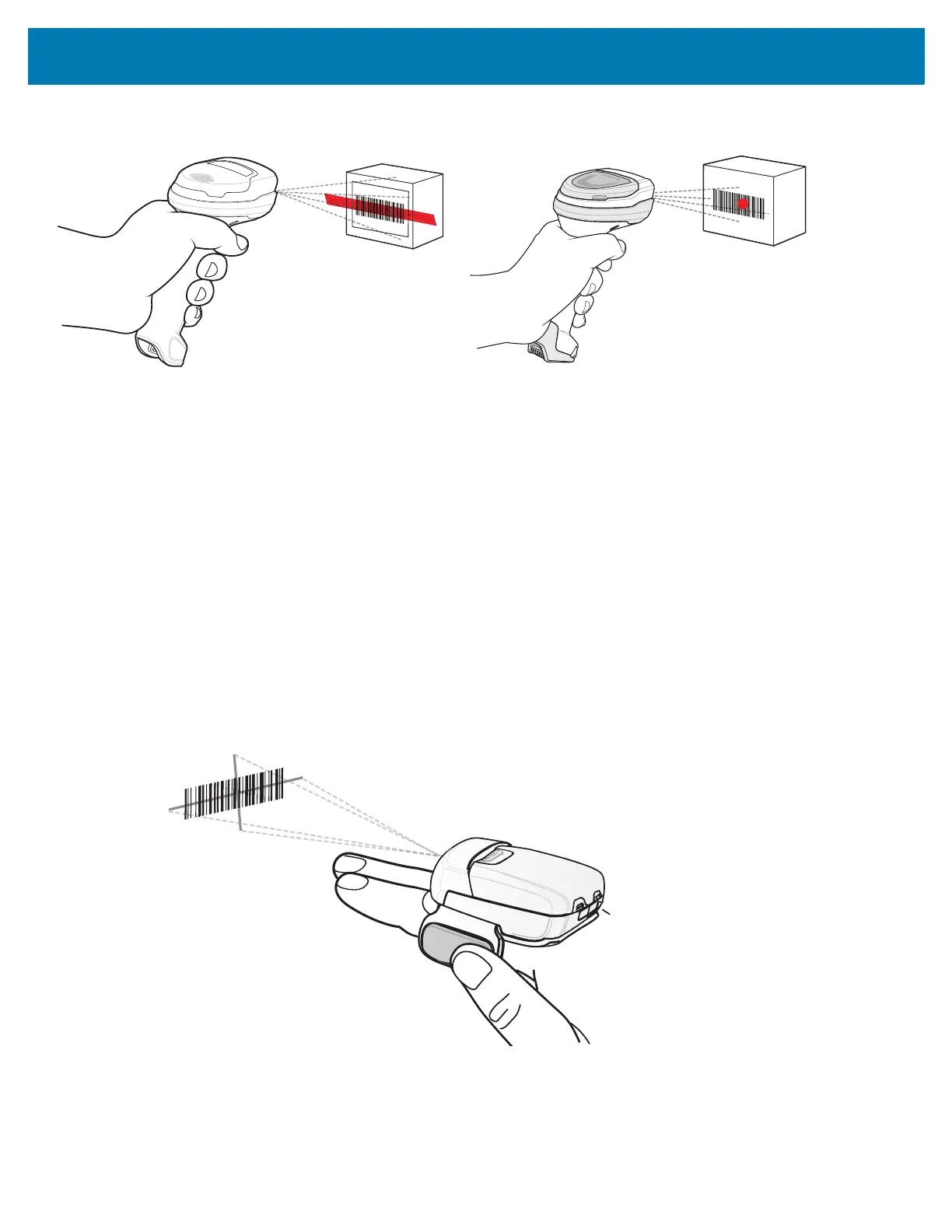

Figure 40 Aiming Pattern on Bar Code - DS22X8 and DS81X8
.
3. Release the trigger.
4. The barcode content data appears in the text field.
Scanning with RS507/RS507X Hands-Free Imager
To read a barcode, a scan-enabled app is required. The device contains the DataWedge app that allows
you to enable the scanner to decode barcode data and display the barcode content.
To scan with the RS507/RS507X:
1. Pair the RS507/RS507X with the device. See Pairing Using Pairing Using Simple Serial Interface on
page 79 or
Pairing Using Bluetooth Human Interface Device on page 79 for more information.
2. Ensure that an app is open on the device and a text field is in focus (text cursor in text field).
3. Point the RS507/RS507X at a barcode.
Figure 41 Barcode Scanning with RS507/RS507X
