Zebra R110Xi User Manual

Printer Operation
Loading Ribbon
23063L-003 Rev. 1 12/6/04 R110Xi/R170Xi User Guide 29
5. See Figure 23. Thread the ribbon under the printhead and past the platen roller.

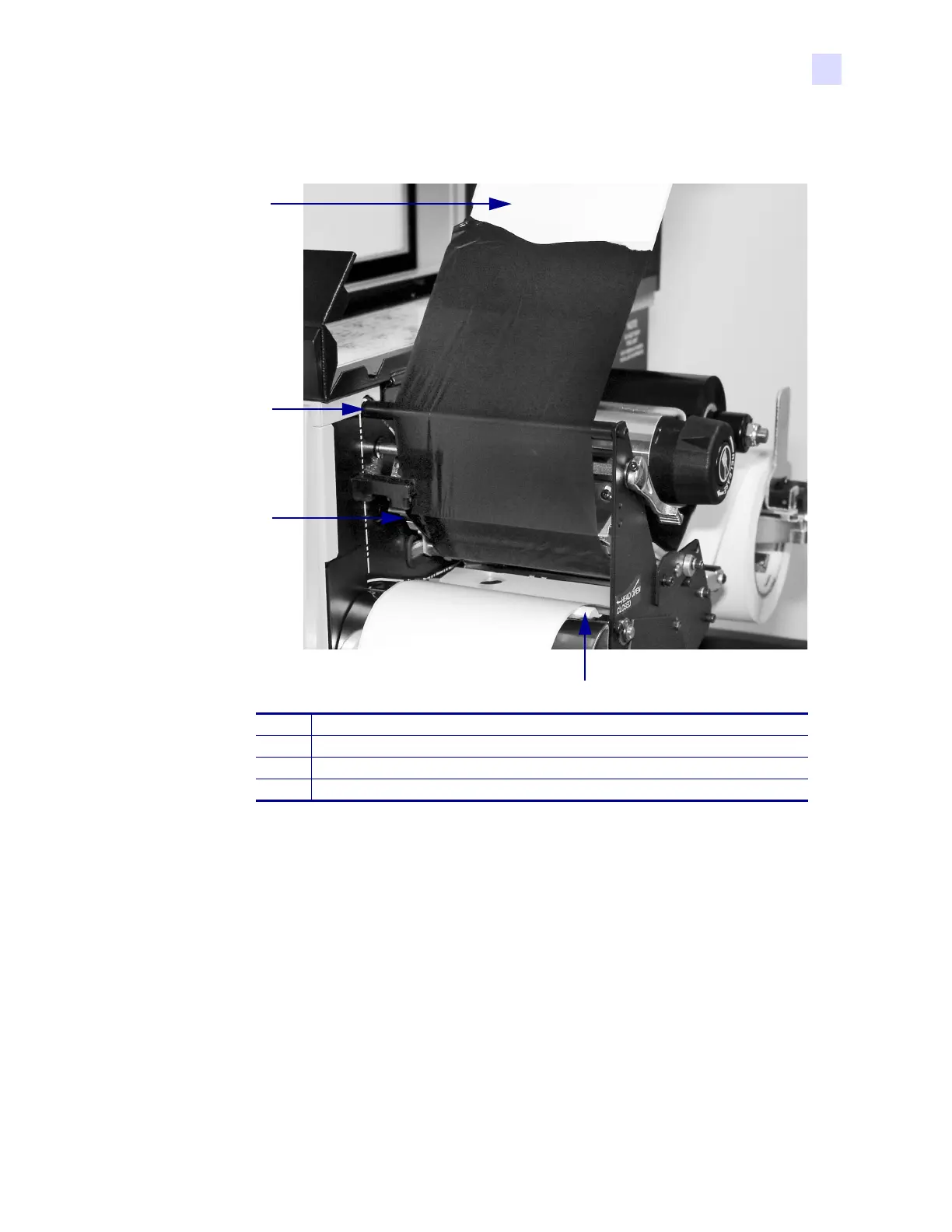

Figure 23 • Threading Ribbon Under the Printhead
6. Pull the ribbon leader over the printhead and above the top roller.
1
Ribbon leader
2
Top roller
3
Printhead
4
Platen roller
2
3
1
4
