NOTES ON INSTRUMENT SAFETY
Cell Observer SD Safety Instructions Carl Zeiss
M60-2-0021 e 01/2009 423638-7044-001 11
1.2.3 Service Interfaces

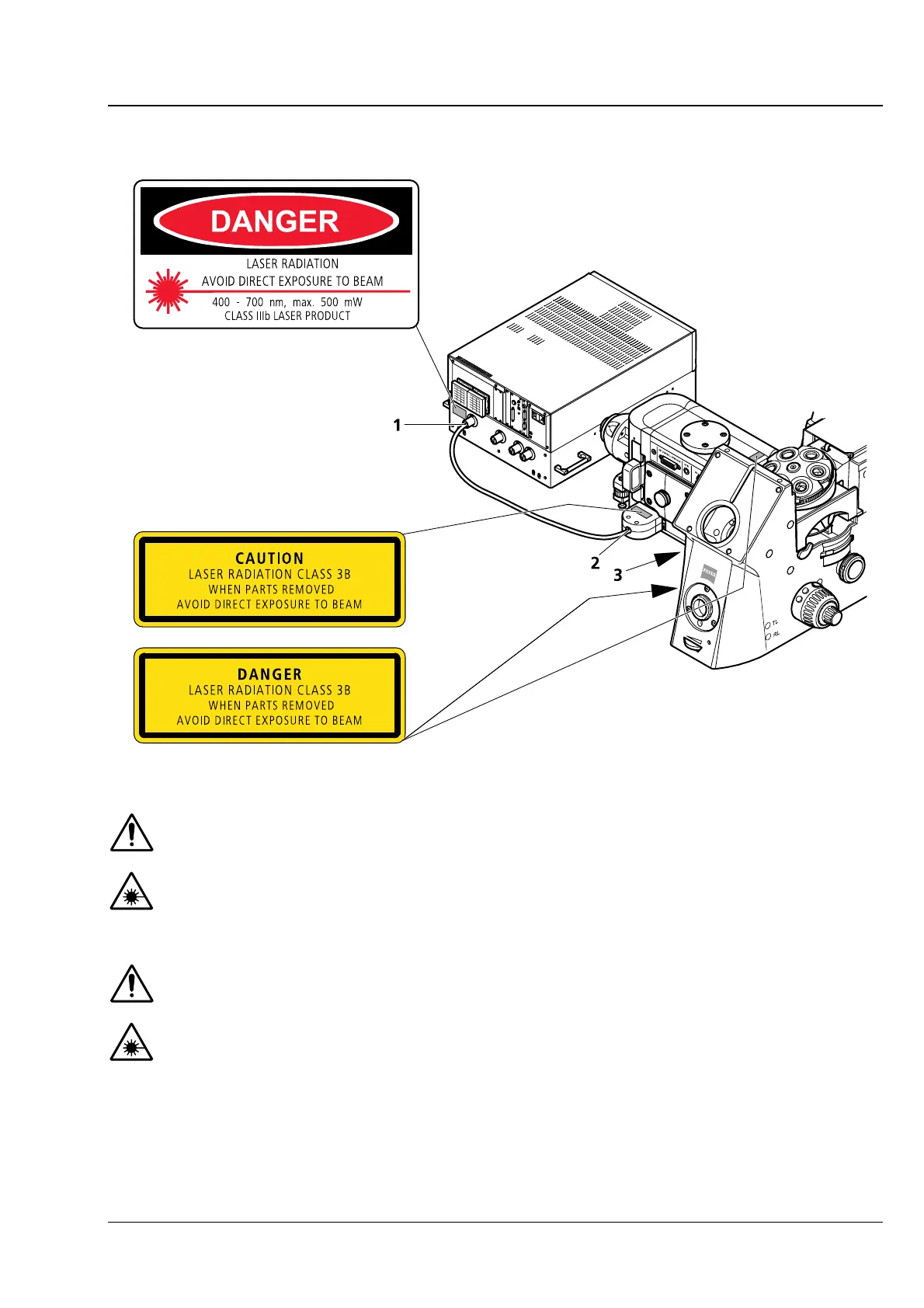

Fig. 1-1 Service interfaces at the Axio Observer.Z1 – CSU-X1 spinning disc unit – multi laser module
CAUTION
The fiber connectors (
Fig. 1-1/1 and 2) may only be detached by Carl Zeiss service technicians.
If one fiber end is not firmly connected to the fiber mount, laser class 3B radiation will emerge!
Non-observance involves the risk of eye damage!
CAUTION
The cover (
Fig. 1-1/3) at the joint between the CSU-X1 spinning disc unit and the
Axio Observer.Z1 may only be removed by Carl Zeiss service personnel.
If the CSU-X1 spinning disc unit and the Axio Observer.Z1 are not firmly connected with each
other, there may be emergence of class 3B laser radiation!
There may be eye damage if this rule is disregarded!
